Name: EBM Papst D2E146AP4702 Radial extractor 230 V AC 970 m³/h
Brand: EBM Papst
SKU: 3836801

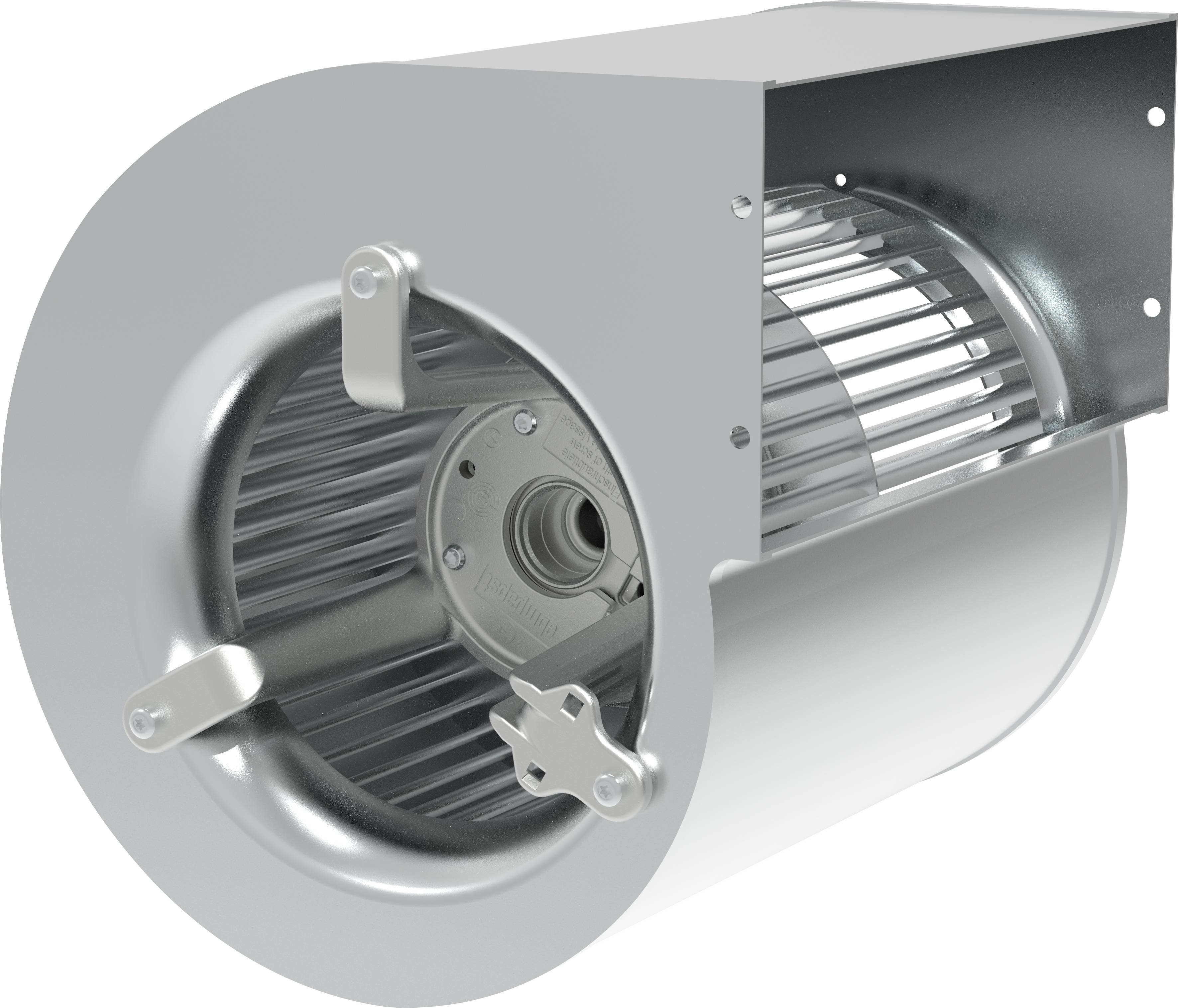

3D rendering of a cylindrical duct fan or blower with metal housing and visible internal blades, shown in a cutaway view on a white background

Datasheet (PDF)

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Motor: AC, 1~ Powered 2-pole
Motor number: 2
Motor size 68 mm
Wheel size 146 mm
Direction of rotation: Left
Motor system: External rotor
Motor type: Asynchronous motor

Product type: Radial extractor

Nominal voltage: 230 V AC

: 330 W

Rotational speed: 2550 U/min

Air flow rate: 970 m³/h

Noise emission (max.): 68 dBa

: IP44

Weight: 4200 g

Dim: (L x W x H) 241 x 205 x 219 mm

Width: 205 mm

Height: 219 mm

Length: 241 mm

Type of bearing: Ball bearing

Cable length: 350 mm

Max. current consumption: 1.45 A
