Name: EBM Papst D2E146HS9703 Radial extractor 230 V AC 755 m³/h
Brand: EBM Papst
SKU: 3836796

Black HVAC inline duct fan housing with white internal impeller blades, shown in 3D on a white background.

Datasheet (PDF)

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Motor: AC, 1~ Powered 2-pole
Motor number: 2
Motor size 68 mm
Wheel size 146 mm
Direction of rotation: Left
Motor system: External rotor
Motor type: Asynchronous motor

Product type: Radial extractor

Nominal voltage: 230 V AC

: 215 W

Rotational speed: 1750 U/min

Air flow rate: 755 m³/h

Noise emission (max.): 57 dBa

: IP20

Weight: 2980 g

Dim: (L x W x H) 199 x 253 x 218 mm

Width: 253 mm

Height: 218 mm

Length: 199 mm

Type of bearing: Ball bearing

Max. current consumption: 0.94 A

Variants(All information is without VAT, plus shipping costs)

Air flow rate

Dim

Nominal voltage

Rotational speed

EBM Papst D1G133AB2952 Radial extractor 24 V DC 700 m³/h

Item no:3836787

Unavailable

Conrad Electronic

700 m³/h

(L x W x H) 225 x 171 x 180 mm

24 V DC

1780 U/min

Piece(s)

Minimum order quantity: 1

Multiple: 1

EBM Papst D1G133AB3952 Radial extractor 48 V DC 700 m³/h

Item no:3836786

Unavailable

Conrad Electronic

700 m³/h

(L x W x H) 225 x 171 x 180 mm

48 V DC

1780 U/min

Piece(s)

Minimum order quantity: 1

Multiple: 1

EBM Papst D1G133DC1352 Radial extractor 24 V DC 1020 m³/h

Item no:3836788

Unavailable

Conrad Electronic

1020 m³/h

(L x W x H) 242 x 204 x 214 mm

24 V DC

1580 U/min

Piece(s)

Minimum order quantity: 1

Multiple: 1

EBM Papst D1G133DC1752 Radial extractor 48 V DC 1020 m³/h

Item no:3836789

Unavailable

Conrad Electronic

1020 m³/h

(L x W x H) 242 x 204 x 214 mm

48 V DC

1580 U/min

Piece(s)

Minimum order quantity: 1

Multiple: 1

EBM Papst D1G146AA3352 Radial extractor 48 V DC 1000 m³/h

Item no:3836819

Unavailable

Conrad Electronic

1000 m³/h

(L x W x H) 242 x 205 x 220 mm

48 V DC

1350 U/min

Piece(s)

Minimum order quantity: 1

Multiple: 1

EBM Papst D1G146HQ0304 Radial extractor 230 V AC 980 m³/h

Item no:3836812

Unavailable

Conrad Electronic

980 m³/h

(L x W x H) 202 x 253 x 216 mm

230 V AC

1675 U/min

Piece(s)

Minimum order quantity: 1

Multiple: 1

EBM Papst D1G146LV0301 Radial extractor 230 V AC 940 m³/h

Item no:3836811

Unavailable

Conrad Electronic

940 m³/h

(L x W x H) 276 x 202 x 216 mm

230 V AC

1840 U/min

Piece(s)

Minimum order quantity: 1

Multiple: 1

EBM Papst D2D146AA1203 Radial extractor 400 V AC 795 m³/h

Item no:3836804

Unavailable

Conrad Electronic

795 m³/h

(L x W x H) 242 x 205 x 219 mm

400 V AC

2500 U/min

Piece(s)

Minimum order quantity: 1

Multiple: 1

EBM Papst D2D160BE0203 Radial extractor 400 V AC 1745 m³/h

Item no:3836821

Unavailable

Conrad Electronic

1745 m³/h

(L x W x H) 307 x 225 x 242 mm

400 V AC

3000 U/min

Piece(s)

Minimum order quantity: 1

Multiple: 1

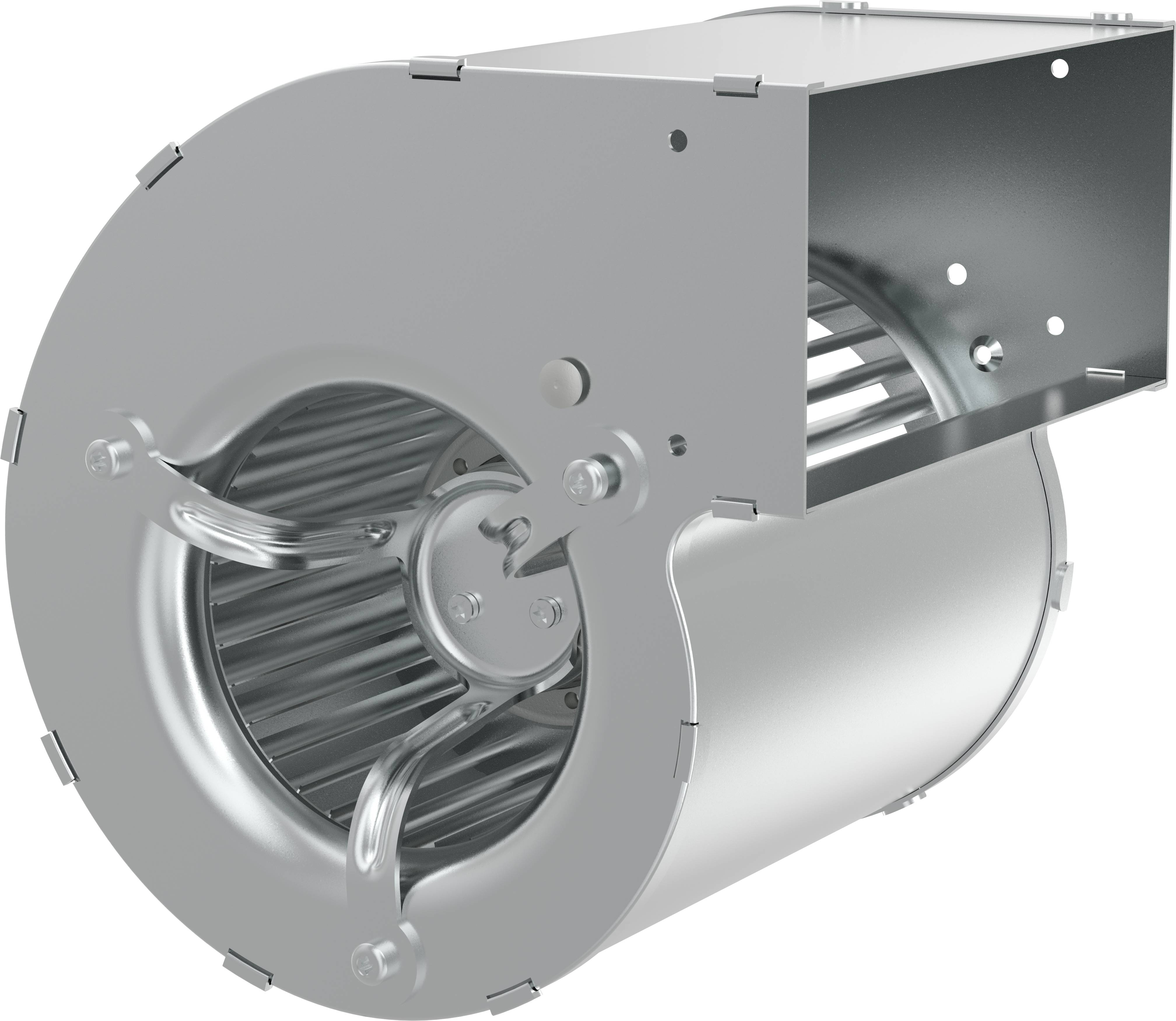

EBM Papst D2E097BE0102 Radial extractor 230 V AC 270 m³/h

Item no:3836759

Unavailable

Conrad Electronic

270 m³/h

(L x W x H) 151 x 161 x 166 mm

230 V AC

1250 U/min

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

Datasheet

Datasheet 3836796 EBM Papst D2E146HS9703 Radial extractor 230 V AC 755 m³/h

User & Safety Instructions

User & Safety Instructions 3836796 EBM Papst D2E146HS9703 Radial extractor 230 V AC 755 m³/h
