Name: EBM Papst D3G146LV0531 Radial extractor 230 V AC 1160 m³/h
Brand: EBM Papst
SKU: 3836813

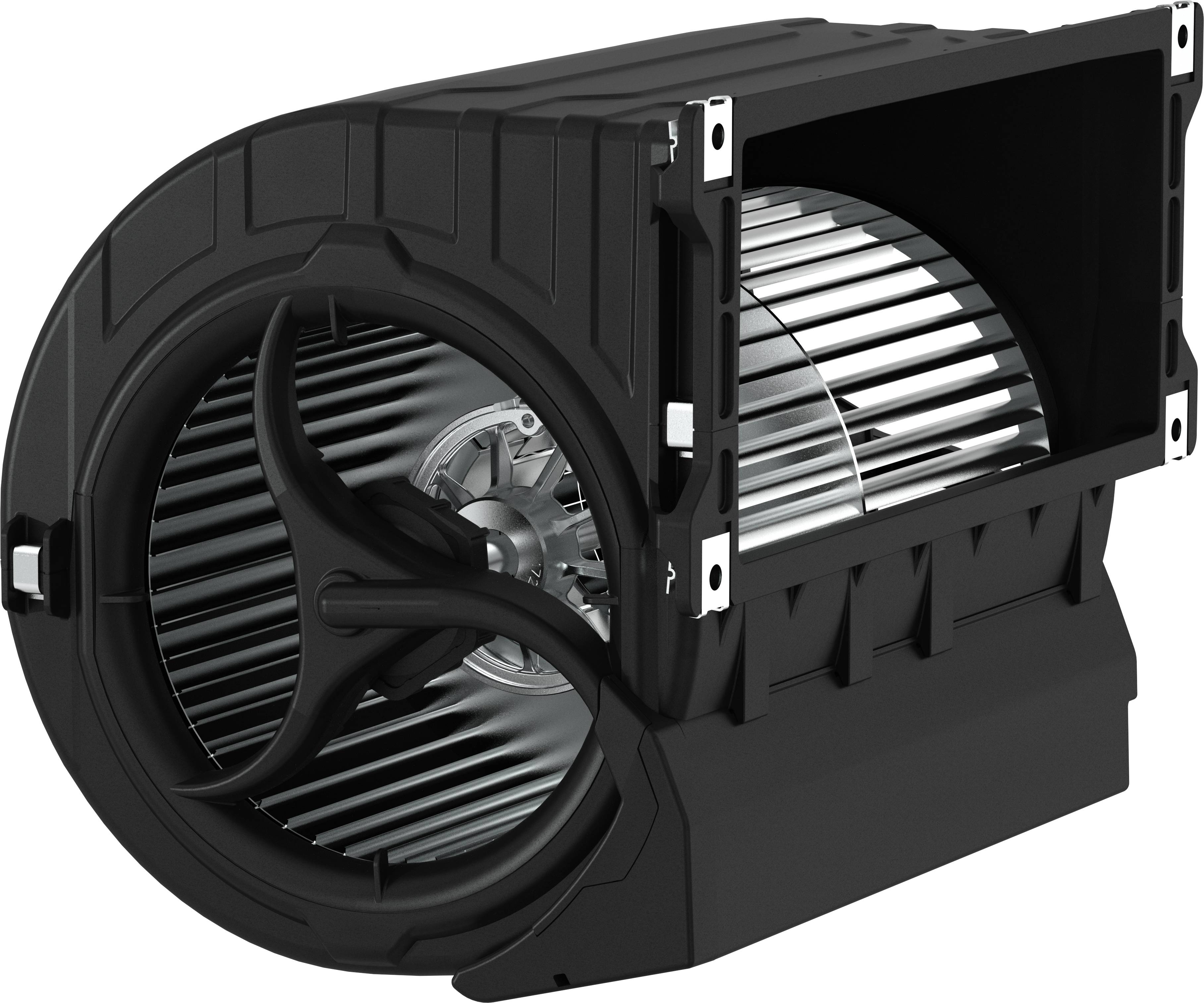

Black cylindrical ventilation fan or blower unit with a circular intake, visible internal fan blades, and rectangular housing<br>

Datasheet (PDF)

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Motor: EC, 1~ power supply
Motor number: 4
Motor size 55 mm
Wheel size 146 mm
Direction of rotation: Left
Motor system: External rotor
Motor type: Electronic Come. Motor

Product type: Radial extractor

Nominal voltage: 230 V AC

Nominal voltage range: 240 - 200 V AC

: 170 W

Rotational speed: 1560 U/min

Air flow rate: 1160 m³/h

Weight: 2720 g

Dim: (L x W x H) 272 x 202 x 216 mm

Width: 202 mm

Height: 216 mm

Length: 272 mm

Type of bearing: Ball bearing

Max. current consumption: 0.8 A
