Name: EBM Papst G4D225GK1003 Radial extractor 400 V AC 1830 m³/h
Brand: EBM Papst
SKU: 3836903

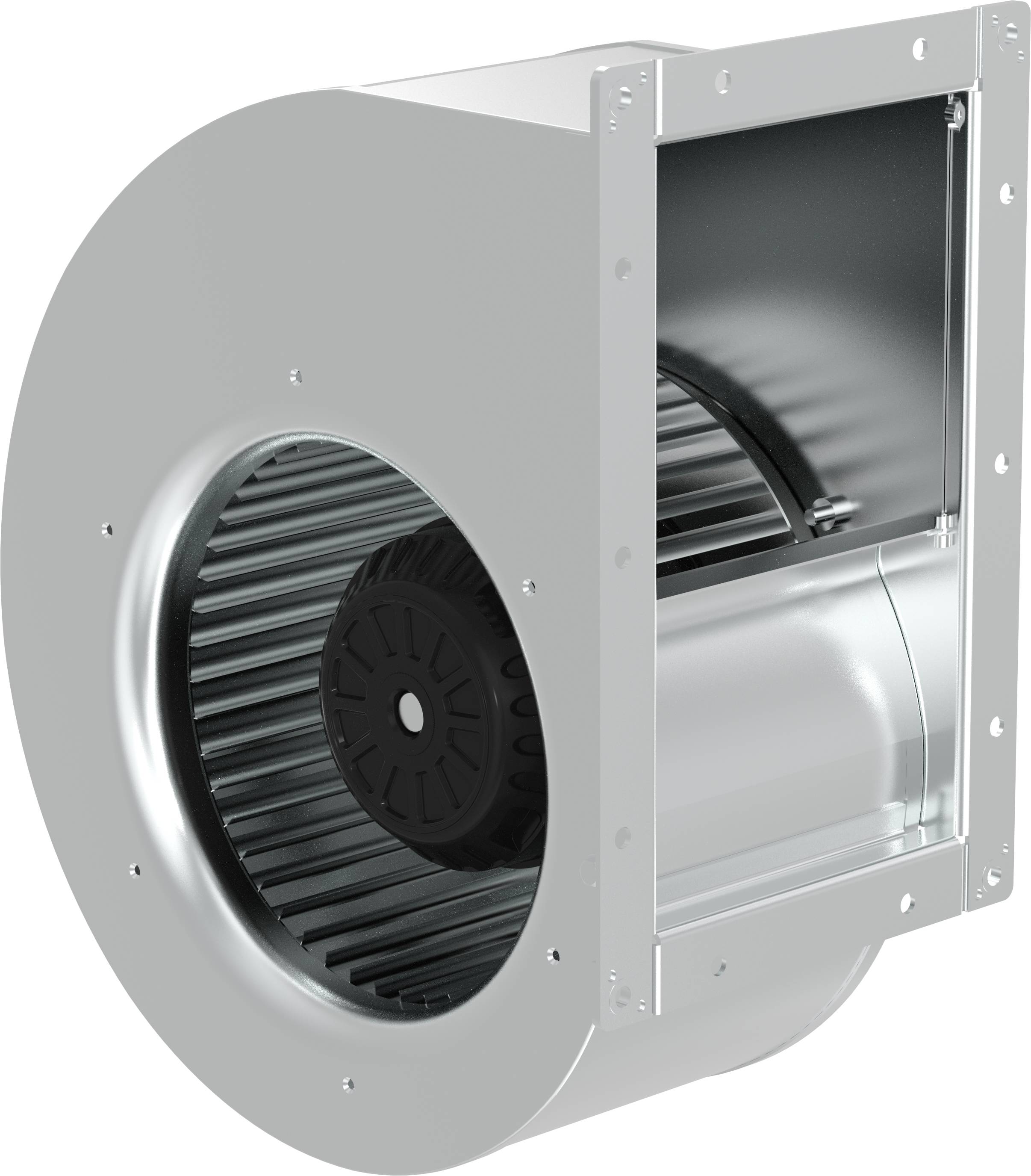

Metal HVAC blower fan housing with a circular intake and visible internal fan blades, shown in a cutaway view.

Datasheet (PDF)

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Motor: AC, 3~ Powered 4-pole
Motor number: 4
Motor size 94 mm
Wheel size 225 mm
Direction of rotation: Right
Motor system: External rotor
Motor type: Asynchronous motor

Product type: Radial extractor

Nominal voltage: 400 V AC

: 515 W

Rotational speed: 1520 U/min

Air flow rate: 1830 m³/h

Noise emission (max.): 75 dBa

: IP54

Weight: 9800 g

Dim: (L x W x H) 185 x 328 x 398 mm

Width: 328 mm

Height: 398 mm

Length: 185 mm

Type of bearing: Ball bearing

Cable length: 600 mm

Max. current consumption: 0.90 A

Variants(All information is without VAT, plus shipping costs)

Air flow rate

Dim

Nominal voltage

Rotational speed

EBM Papst D3G160IB0902 Radial extractor 230 V AC 2400 m³/h

Item no:3836890

Unavailable

Conrad Electronic

2400 m³/h

(L x W x H) 391 x 233 x 261 mm

230 V AC

2250 U/min

Piece(s)

Minimum order quantity: 1

Multiple: 1

EBM Papst G1G108AB1702 Radial extractor 24 V DC 200 m³/h

Item no:3836868

Unavailable

Conrad Electronic

200 m³/h

(L x W x H) 115 x 159 x 185 mm

24 V DC

3000 U/min

Piece(s)

Minimum order quantity: 1

Multiple: 1

EBM Papst G1G108AB4102 Radial extractor 48 V DC 200 m³/h

Item no:3836869

Unavailable

Conrad Electronic

200 m³/h

(L x W x H) 115 x 159 x 185 mm

48 V DC

3000 U/min

Piece(s)

Minimum order quantity: 1

Multiple: 1

EBM Papst G1G120AB6702 Radial extractor 24 V DC 250 m³/h

Item no:3836873

Unavailable

Conrad Electronic

250 m³/h

(L x W x H) 117 x 178 x 194 mm

24 V DC

2200 U/min

Piece(s)

Minimum order quantity: 1

Multiple: 1

EBM Papst G1G160BH2952 Radial extractor 24 V DC 505 m³/h

Item no:3836891

Unavailable

Conrad Electronic

505 m³/h

(L x W x H) 130 x 227 x 262 mm

24 V DC

1750 U/min

Piece(s)

Minimum order quantity: 1

Multiple: 1

EBM Papst G1G160BH3952 Radial extractor 48 V DC 505 m³/h

Item no:3836892

Unavailable

Conrad Electronic

505 m³/h

(L x W x H) 130 x 227 x 262 mm

48 V DC

1750 U/min

Piece(s)

Minimum order quantity: 1

Multiple: 1

EBM Papst G2E076AA0101 Radial extractor 230 V AC 85 m³/h

Item no:3836861

Unavailable

Conrad Electronic

85 m³/h

(L x W x H) 88 x 118 x 128 mm

230 V AC

2900 U/min

Piece(s)

Minimum order quantity: 1

Multiple: 1

EBM Papst G2E085AA0101 Radial extractor 230 V AC 95 m³/h

Item no:3836863

Unavailable

Conrad Electronic

95 m³/h

(L x W x H) 88 x 118 x 128 mm

230 V AC

2800 U/min

Piece(s)

Minimum order quantity: 1

Multiple: 1

EBM Papst G2E097ED0102 Radial extractor 230 V AC 110 m³/h

Item no:3836865

Unavailable

Conrad Electronic

110 m³/h

(L x W x H) 61 x 143 x 137 mm

230 V AC

2300 U/min

Piece(s)

Minimum order quantity: 1

Multiple: 1

EBM Papst G2E097HD0102 Radial extractor 230 V AC 110 m³/h

Item no:3836864

Unavailable

Conrad Electronic

110 m³/h

(L x W x H) 62 x 143 x 137 mm

230 V AC

2300 U/min

Piece(s)

Minimum order quantity: 1

Multiple: 1
