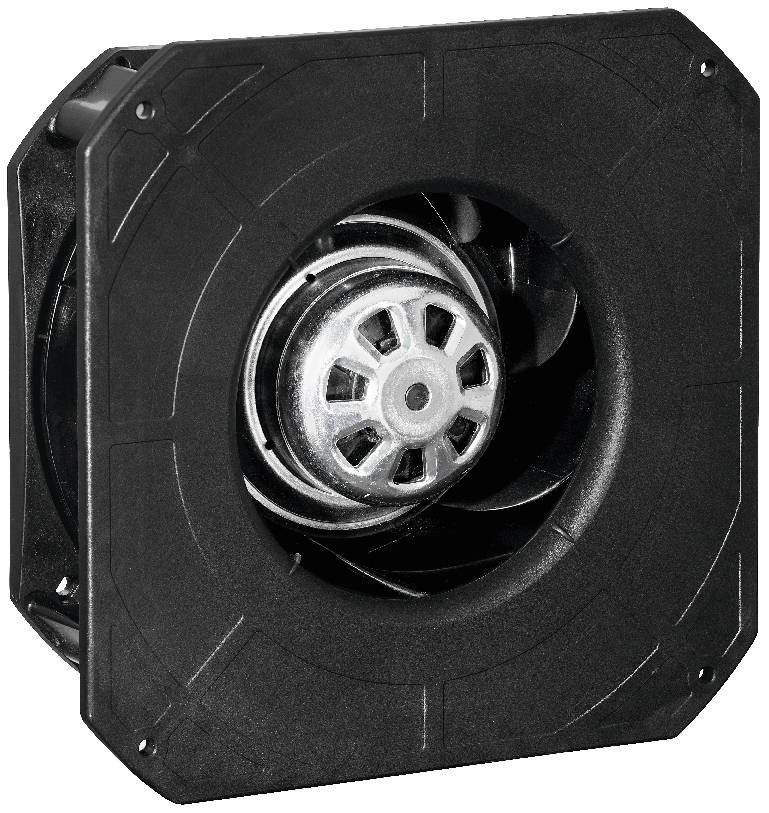

EBM Papst VBH0220RSLFS Radial extractor 230 V 800 m³/h
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
EC radial module radial
- Clockwise rotation
- Ball bearings, IP54, ISO class" B"
- Control input 0-10VDC / PWM
- Electronic motor protection
- Cable 330mm
Technical specifications
- Product type
Radial extractor
- Nominal voltage
230 V
- Nominal voltage range
200 - 240 V
170 W
- Rotational speed
3250 U/min
- Air flow rate
800 m³/h
- Min. temperature
-25 °C
- Max. temperature
60 °C
IP54
- Material
Aluminium (die-cast)
Plastic
- Weight
2.22 kg
- Dim
(L x W x H) 270 x 270 x 104 mm
- Width
270 mm
- Height
104 mm
- Length
270 mm
Documents & Downloads
Datasheet
Datasheet 2900996 EBM Papst VBH0220RSLFS Radial extractor 230 V 800 m³/h
User & Safety Instructions
User & Safety Instructions 2900996 EBM Papst VBH0220RSLFS Radial extractor 230 V 800 m³/h
Description
Store the device partly as well as fully assembled, dry, weatherproof and vibration-free in the original packaging in a clean environment. Protect the device from environmental influences and dirt until the final installation is completed.
This text is machine translated.
This text is machine translated.
Features
- Clock-wise rotation
- Ball bearings, IP54, ISO class" B"
- Control input 0-10VDC / PWM
- Electronic motor protection
- Cable 330mm
- Output 10 VDC, max. 10 mA
- Blocking detection
- Speed output
- Speed control
- Power limitation
- Motor current limitation
- Soft start-up.
- Control input 0-10 VDC / PWM
- Control interface with SELV potential securely isolated from the grid
- Overvoltage detection
- Overtemperature protection Electronic / Motor
- Under voltage identification
- POWER CORD (PWR) PVC AWG20
- 3x wire-end claw
- 2 CONTROL CABLE (CTRL) PVC AWG22
- 6x wire-end clamp
Scope of delivery
- EC radial module radial
- User manual.
