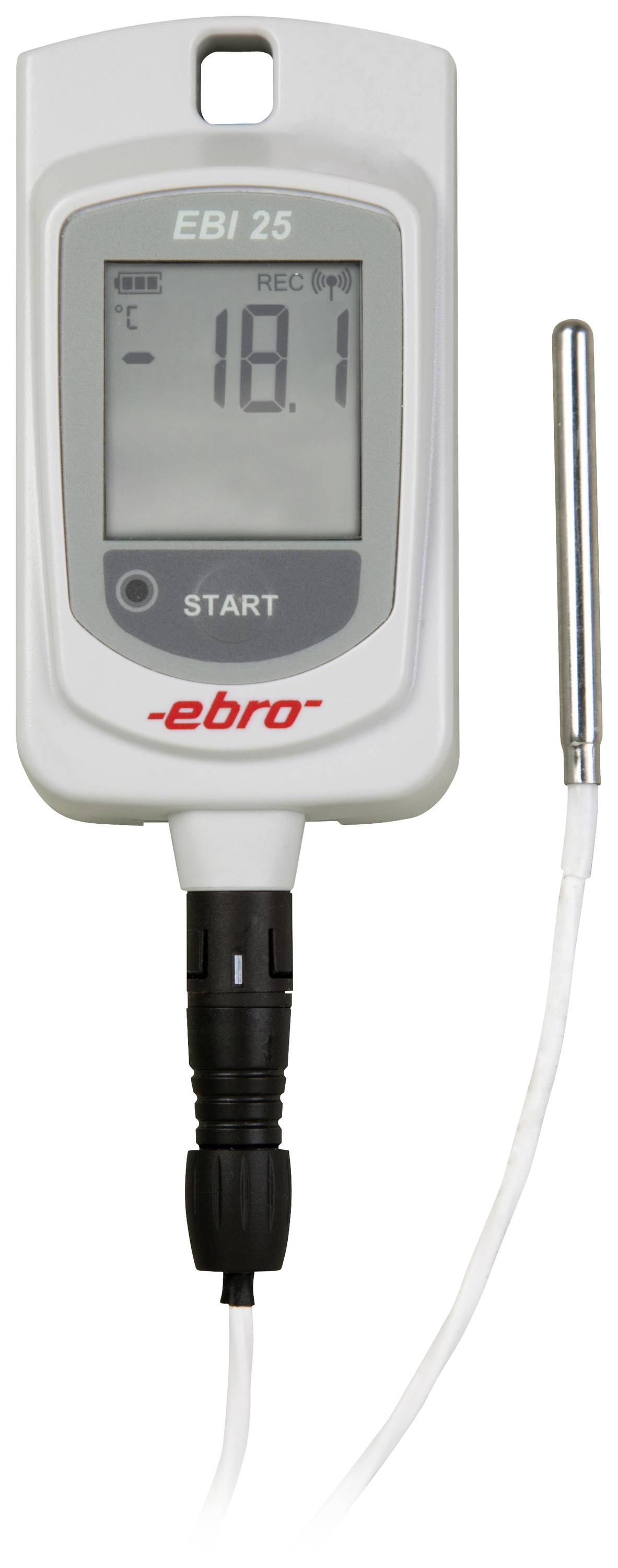

ebro 1340-6204 EBI 25-TX Temperature data logger Unit of measurement Temperature -200 up to +199.9 °C
EAN:
Part number:
Item no:
Number
Total (€ 671.43 / piece)
€ 671.43
plus VAT.
Highlights & Details
ebro 1340-6204 EBI 25-TX Temperature data logger Unit of measurement Temperature -200 up to +199.9 °C
- Continuous measurementAvoidance of loss of goodsRapid intervention before it is too lateAutomatic documentationWorldwide access to the measurement dataEasy handling, battery can be replaced by the user
Technical specifications
- Pt 1000, Ø 5 mm, L = 50 mm, with 3 m PTFE-cableOperating temperature: -30 °C to + +60 °C.
- Temperature resolution
0.1 °C
- Sampling interval
1 min - 24 h, adjustable
- Memory
288 measured values (per channel)
- Power supply (details)
3V lithium (CR2450)
- Battery life
24 months (depending on the transmission interval)
- Sensor
Pt 1000
- Dim
(L x W x H) 48 x 27 x 135 mm
- Weight
65 g
- Height
135 mm
- Length
48 mm
- Width
27 mm
- Temperature reading range
-200 up to +199.9 °C
IP67
Manufacturer's standards (no certificate)
- Unit of measurement
Temperature
- Type
EBI 25-TX
- Sample rate (max.)
24 h
- Sample rate (min.)
1 min
- Temperature reading range (max.)
+199.9 °C
- Temperature reading range (min.)
-200 °C
- Temperature accuarcy (details)
± 0.5°C (-20°C to +40°C)
- Temperature
-30 to +60 °C
- Casing
ABS
- Reading range
Temperature
- Power supply
3.6 V Li battery
- Product type
Temperature data logger
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2731481 ebro 1340-6204 EBI 25-TX Temperature data logger Unit of measurement Temperature -200 up to +199.9 °C
Information
Information 2731481 ebro 1340-6204 EBI 25-TX Temperature data logger Unit of measurement Temperature -200 up to +199.9 °C
Description
With changeable sensors for very high and low temperatures. For wireless temperature monitoring of storage rooms and cooling furniture.
This text is machine translated.
This text is machine translated.
Features
- With external sensor
Scope of delivery
- Work calibration certificate
- 3.6 V Lithium battery
System requirements
- Software Winlog.web, Interface IF 400
