A transparent, undulating cable with multiple parallel conductors.

Image similar

A transparent, undulating cable with multiple parallel conductors.

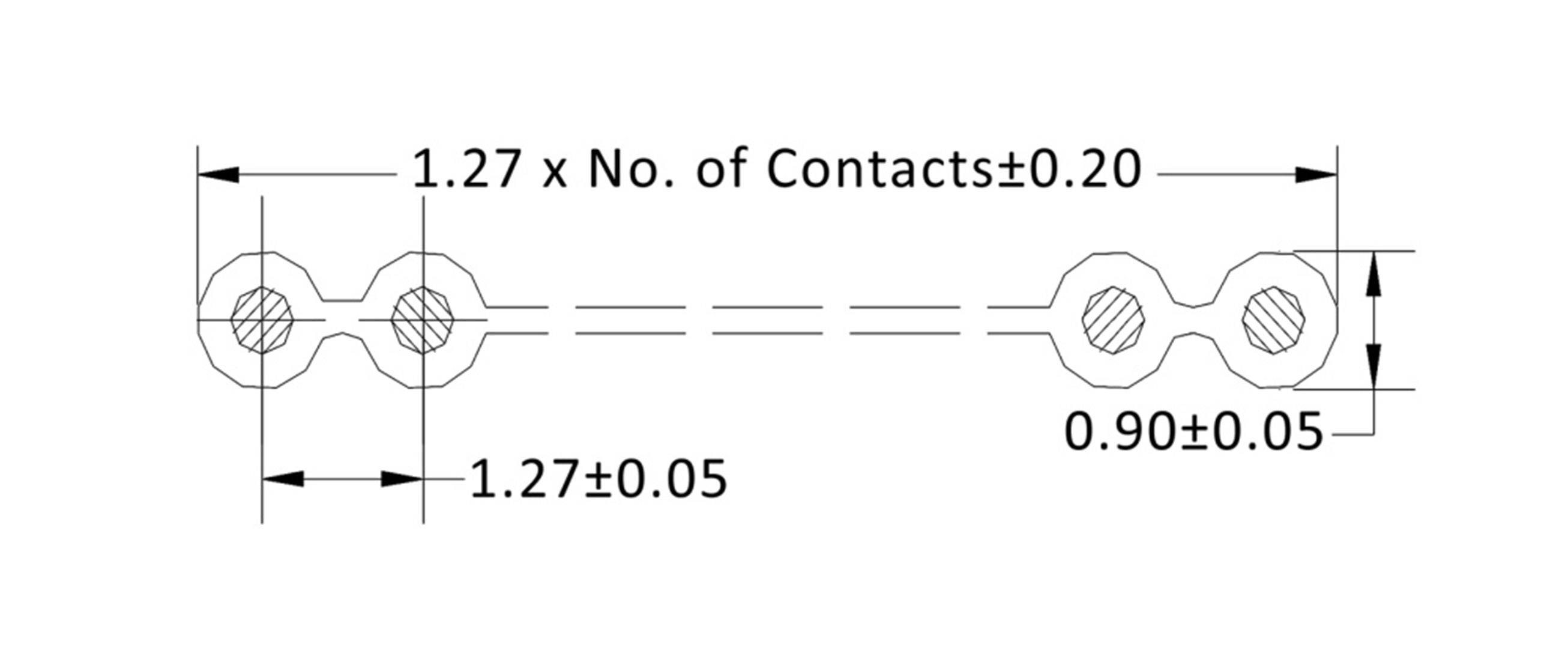

'Diagram of an electrical connector with dimensional specifications: Spacing 1.27 x Number of contacts ±0.20. Width 1.27 ± 0.05, Height 0.90 ± 0.05.'

1/2

Image similar

Product type

Ribbon cable

CS

1.27 mm

No. of leads

50 x

Cross section (each core)

0.08 mm²

Content

30.50 m

Datasheet (PDF)

English

econ connect

Show alternatives

Sales and shipping:

Conrad Electronic Terms & Conditions

Total (1 m = € 2.20)

€

Report legal concerns

Technical specifications

Product type: Ribbon cable

CS: 1.27 mm

No. of leads: 50 x

Cross section (each core): 0.08 mm²

Cross section: 50 x 0.08 mm²

Height: 0.90 mm

Factory colour: Grey

Content: 30.50 m

Nominal voltage: 300 V

Packaged: Yes

: 28

Sold per metre: No

Insulation material: Polyvinyl chloride

Core layout: 7 x 0.125 mm

Max. temperature range (fixed installation): +105 °C

Manufacturer part #: 28AWG50GR

Type: 28AWG50GR

Max. length sold by the metre: 30.5 m

Documents & Downloads

Datasheet

English

Datasheet 1656441 econ connect 28AWG50GR Ribbon cable Contact spacing: 1.27 mm 50 x 0.08 mm² Grey 30.50 m
