Name: Edizio by Feller EDIZIOdue White (matt) 174905 1 pc(s)
Brand: Edizio by Feller
SKU: 3397060

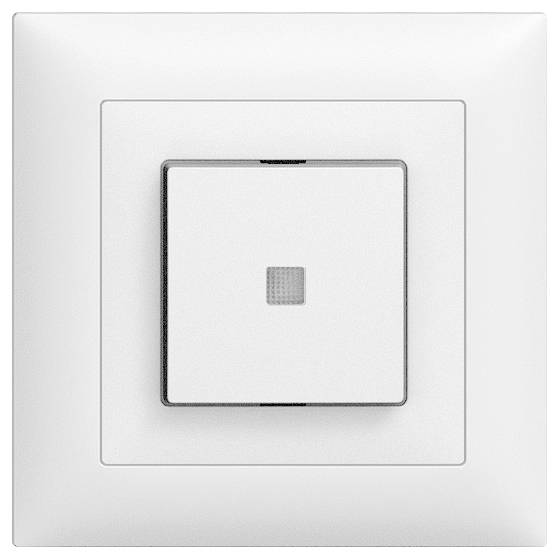

A white square-shaped light switch, installed on a wall.

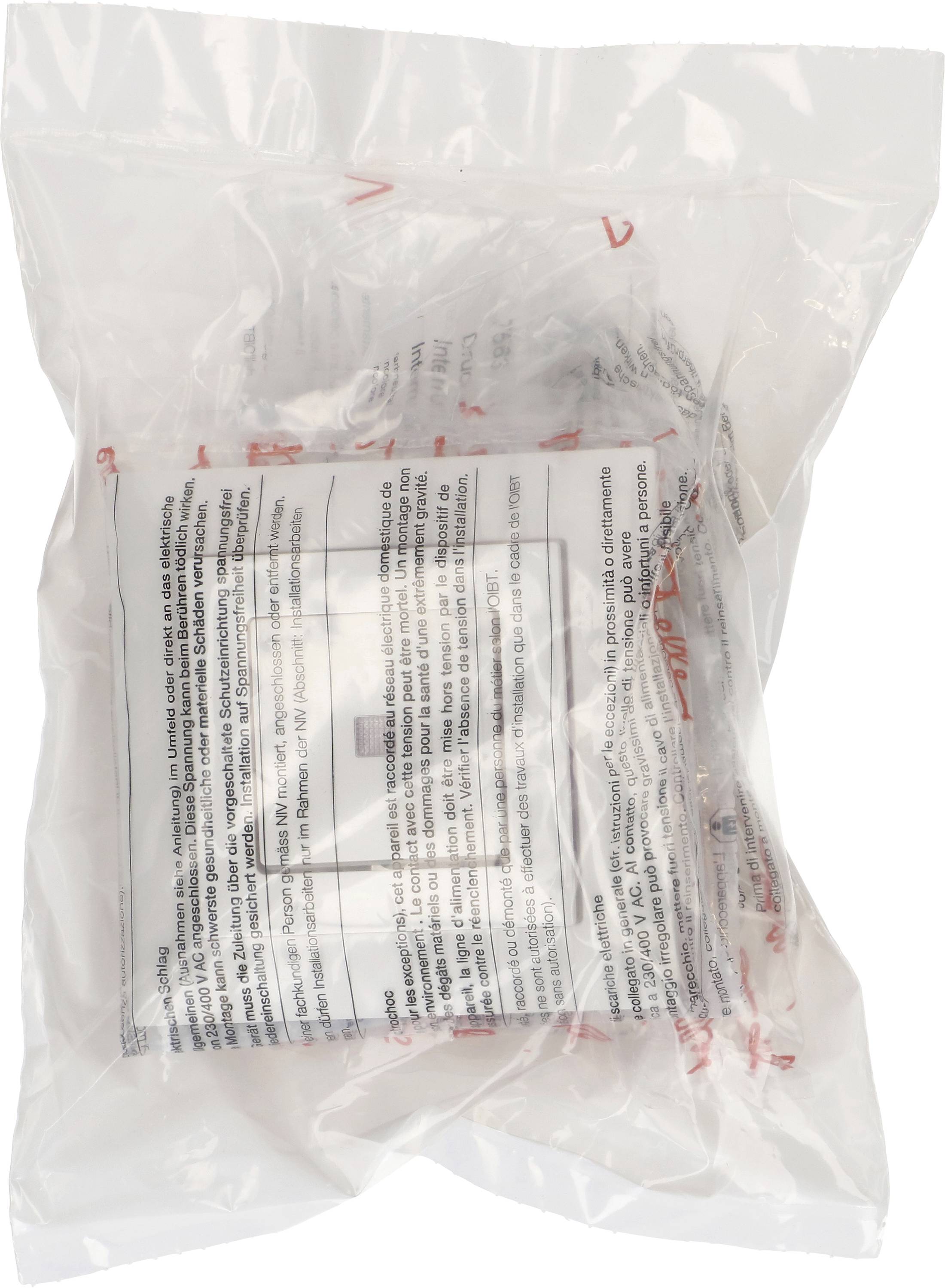

A sealed plastic bag, likely containing a device or accessory with printed instructions and safety information.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Type: Flush mounted
Apparatus function: Schema 3
Lighting: Yellow LED
Size: 1x1
Mounting depth: 27 mm
Mounting height 13 mm
Length: 88.0 mm
Width 88.0 mm
Height: 40.0 mm

Type: Push switch scheme 3 illuminated UP EdizioDue white

Product type: Pushbutton

Type series: EDIZIOdue

Factory colour: White (matt)

Nominal voltage: 230 V

Nominal current: 16 A

: IP20

Content: 1 pc(s)

Documents & Downloads

Datasheet

Datasheet 3397060 Edizio by Feller EDIZIOdue White (matt) 174905 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3397060 Edizio by Feller EDIZIOdue White (matt) 174905 1 pc(s)

Description

Pressure switch diagram 3 illuminated with LED yellow / size 1x1 / design: Flush / current: 16A / voltage: 230V / additional function: Front lens, orientation lighting, with plug-in terminals / installation depth: 27mm / color: White / IP protection class: IP20 / EdizioDue

EDIZIODUE is far more than an attractive range of light switches and sockets. For the majority of system solutions it is also a superior design philosophy for all functions. EDIZIOdue uses the proven Feller apparatus technology. The basis is the color-neutral functional application, which allows the modular types flush-mounting, surface-mounting and installation. Subsequent color changes are quickly fulfilled, since EDIZIOdue covers can be easily replaced when the device is connected.

•Colour inserts can be combined in a variety of ways
•Easy color conversion

This text is machine translated.
