Name: Edizio by Feller EDIZIOdue White (matt) 175452 1 pc(s)
Brand: Edizio by Feller
SKU: 3397075

A white wall socket with three holes, with an illuminated switch beneath it in the centre.

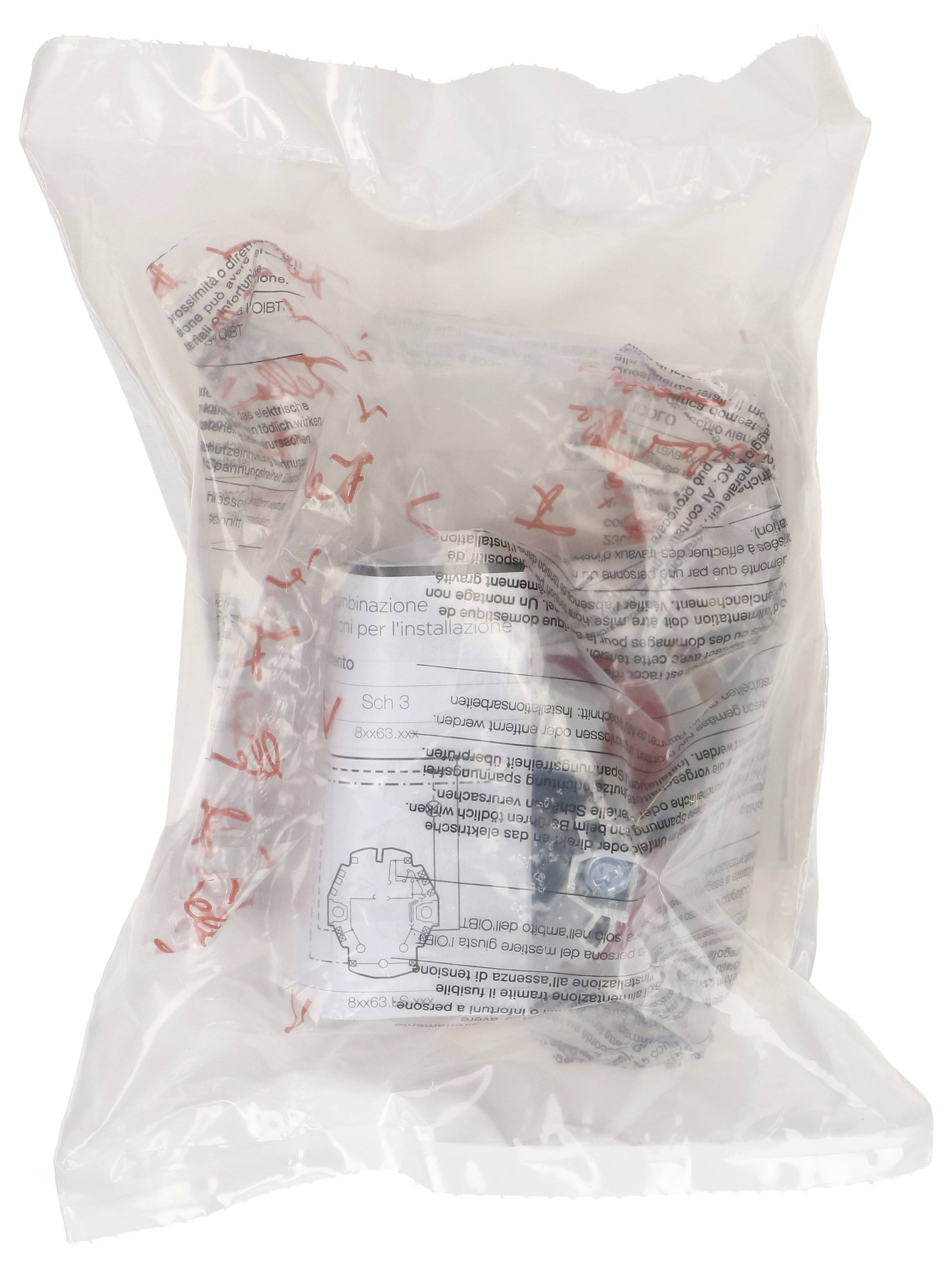

Plastic bag containing a device wrapped in instruction leaflets. Text in multiple languages on the packaging.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Device type: Small combo
Type: Flush mounted
Apparatus function: Schema 3 / type 13
Lighting: Yellow LED
Size: 1x1
Number of slots: 1
Installation depth: 40 mm
Mounting height 13 mm
Length: 88.0 mm
Width 88.0 mm
Height: 53.0 mm

Type: Small combination scheme 3 / type 13 UP illuminated EdizioDue white

Product type: Switch/socket combo

Type series: EDIZIOdue

Factory colour: White (matt)

Nominal voltage: 230 V

Nominal current: 10 A

: IP20

Content: 1 pc(s)

Documents & Downloads

Datasheet

Datasheet 3397075 Edizio by Feller EDIZIOdue White (matt) 175452 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3397075 Edizio by Feller EDIZIOdue White (matt) 175452 1 pc(s)

Description

Small combination pressure switch schema 3 / type 13 / size 1x1 / design: Flush / current: 10A / voltage: 250V / additional function: Illuminated with LED yellow, front lens, orientation light, with plug clamp / mounting height: 13mm / installation depth: 40mm / color: White / IP20 / EdizioDue

EDIZIODUE is far more than an attractive range of light switches and sockets. For the majority of system solutions it is also a superior design philosophy for all functions. EDIZIOdue uses the proven Feller apparatus technology. The basis is the color-neutral functional application, which allows the modular types flush-mounting, surface-mounting and installation. Subsequent color changes are quickly fulfilled, since EDIZIOdue covers can be easily replaced when the device is connected.

•Colour inserts can be combined in a variety of ways
•Easy color conversion

This text is machine translated.
