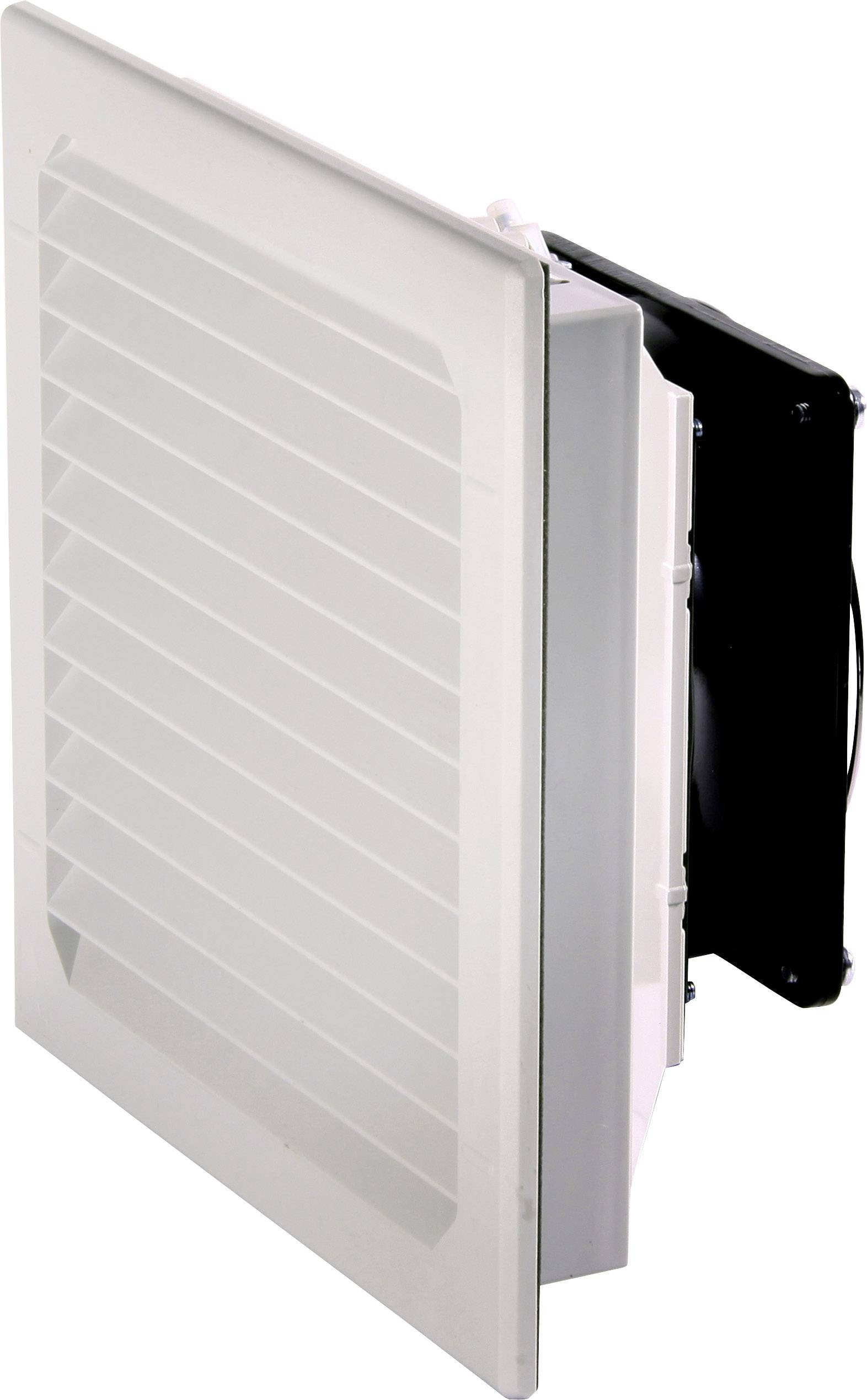

Elmeko LV 300 24V DC Fan and filter 24 V DC 4.1 W (W x H x D) 204 x 204 x 96 mm 1 pc(s)
Product type
Fan and filter
Operating voltage
24 V DC
Power
4.1 W
Rotational speed
3050 U/min
Noise emission (max.)
51 dBa
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Sound level 51 dB(A)
- Colors RAL 7035 (standard), RAL 7032
- Air quantity of filter mat: Z-Line-Filter 50 Hz
- Air flow rate with outlet filter: 82 m³/h.
- Air flow rate with outlet filter 2 x GV 300: 94 m³/h.
- Mounting cut-out: 177 mm x 177 mm
- Product type
Fan and filter
- Type
LV 300 24V DC
- Features
EMC
- Operating voltage
24 V DC
- Max. current consumption
0.17 A
4.1 W
- Rotational speed
3050 U/min
- Noise emission (max.)
51 dBa
- Air flow rate
105 m³/h
- Factory colour
Light grey
50000 h
- Min. temperature
-20 °C
- Max. temperature
+65 °C
IP54
- Connection
Screw terminal
- Width
204 mm
- Height
204 mm
- Depth
96 mm
- Dim
(W x H x D) 204 x 204 x 96 mm
- Content
1 pc(s)
- UKCA
yes
