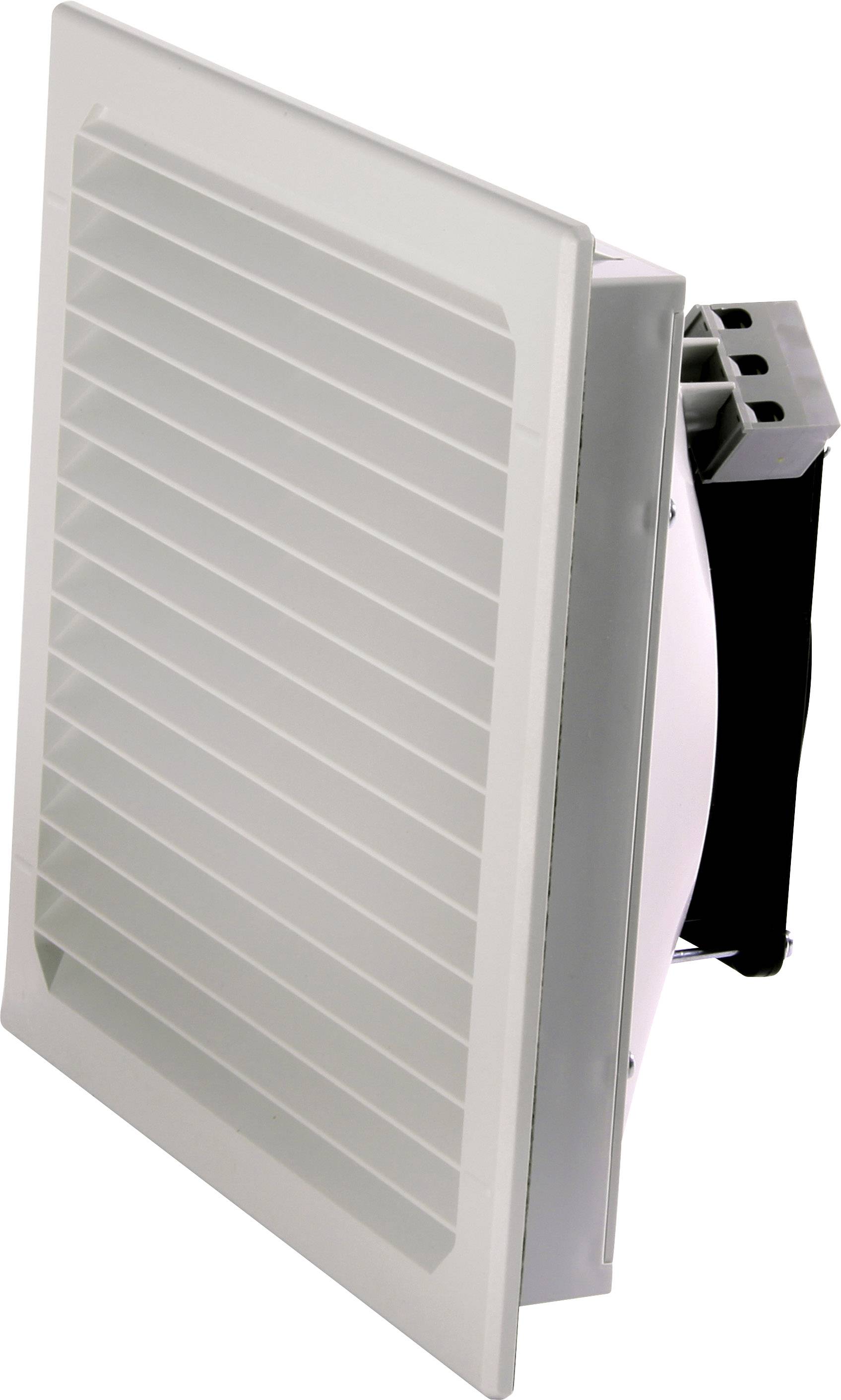

Elmeko LV 405 24V DC Fan and filter 24 V DC 6.5 W (W x H x D) 250 x 250 x 108 mm 1 pc(s)
Product type
Fan and filter
Operating voltage
24 V DC
Power
6.5 W
Rotational speed
3150 U/min
Noise emission (max.)
46 dBa
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Sound level 46 dB(A)
- Colors RAL 7035 (standard), RAL 7032
- Air flow rate of filter mat: Z-Line-Filter 60 Hz
- Air flow rate with outlet filter: 114 m³/h.
- Air flow rate with outlet filter 2 x GV 400/500: 130 m³/h.
- Mounting cut-out 223 mm x 223 mm
- Product type
Fan and filter
- Type
LV 405 24V DC
- Features
incl. filter
- Operating voltage
24 V DC
- Max. current consumption
0.27 A
6.5 W
- Rotational speed
3150 U/min
- Noise emission (max.)
46 dBa
- Air flow rate
156 m³/h
- Factory colour
Light grey
57500 h
- Min. temperature
-20 °C
- Max. temperature
+65 °C
IP54
- Connection
Screw terminal
- Width
250 mm
- Height
250 mm
- Depth
108 mm
- Dim
(W x H x D) 250 x 250 x 108 mm
- Content
1 pc(s)
- UKCA
yes
