Elmeko PK 300-PS-TPC, 100-240 V AC, 280 W Cooler 390 W (W x H x D) 480 x 330 x 190 mm 1 pc(s)
Product type
Cooler
Power
390 W
Noise emission (max.)
80 dBa
Width
480 mm
Height
330 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

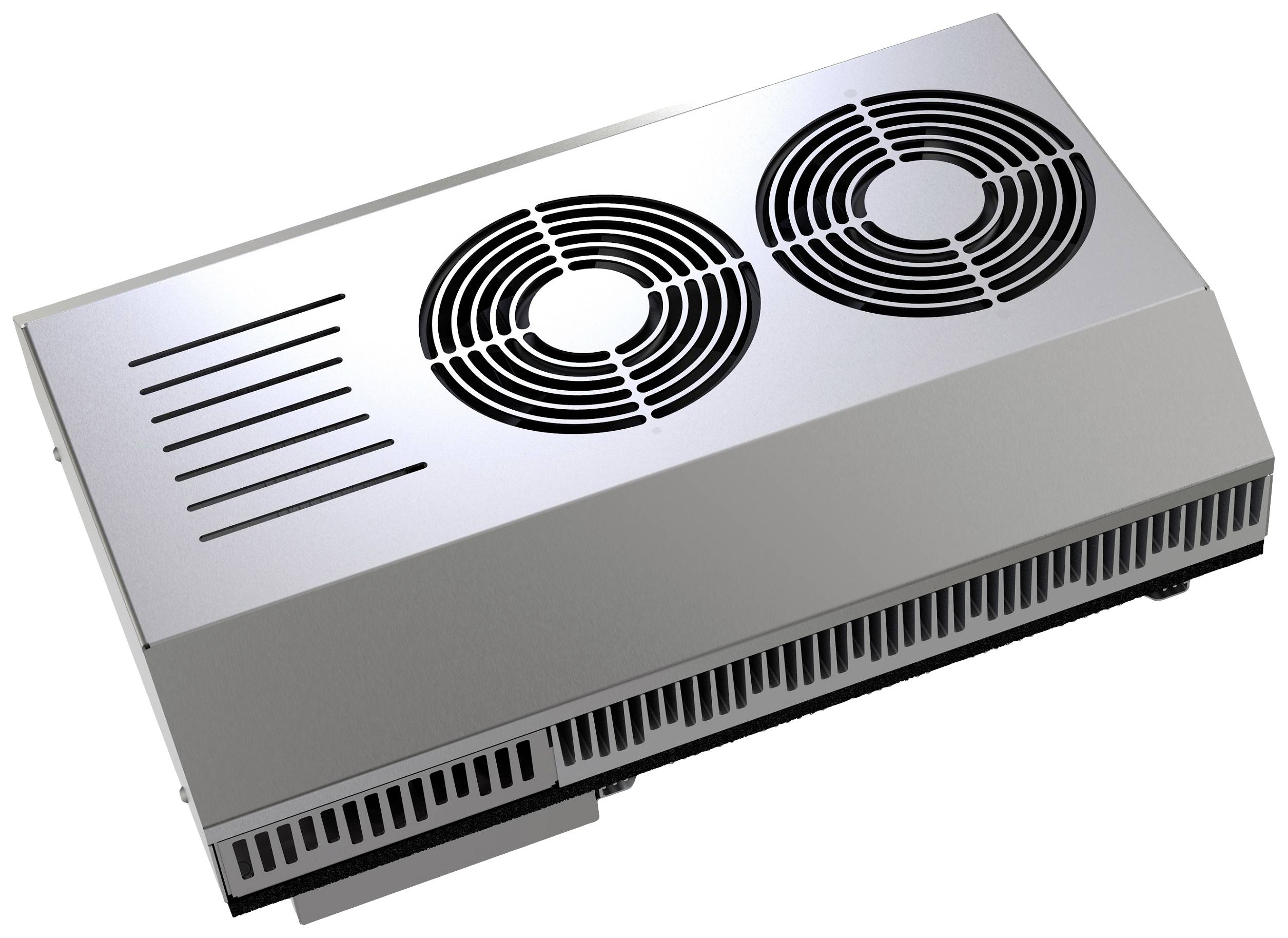

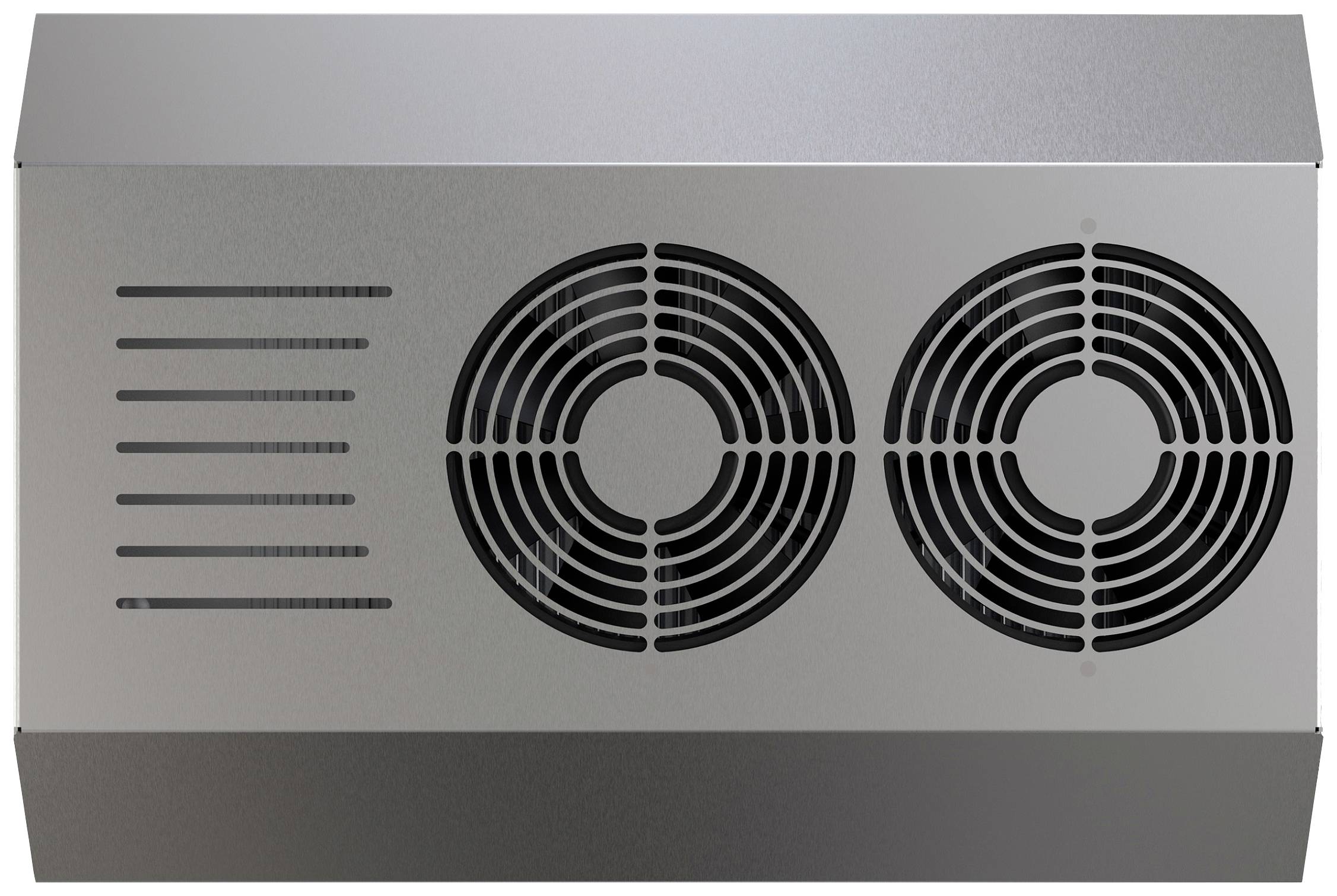

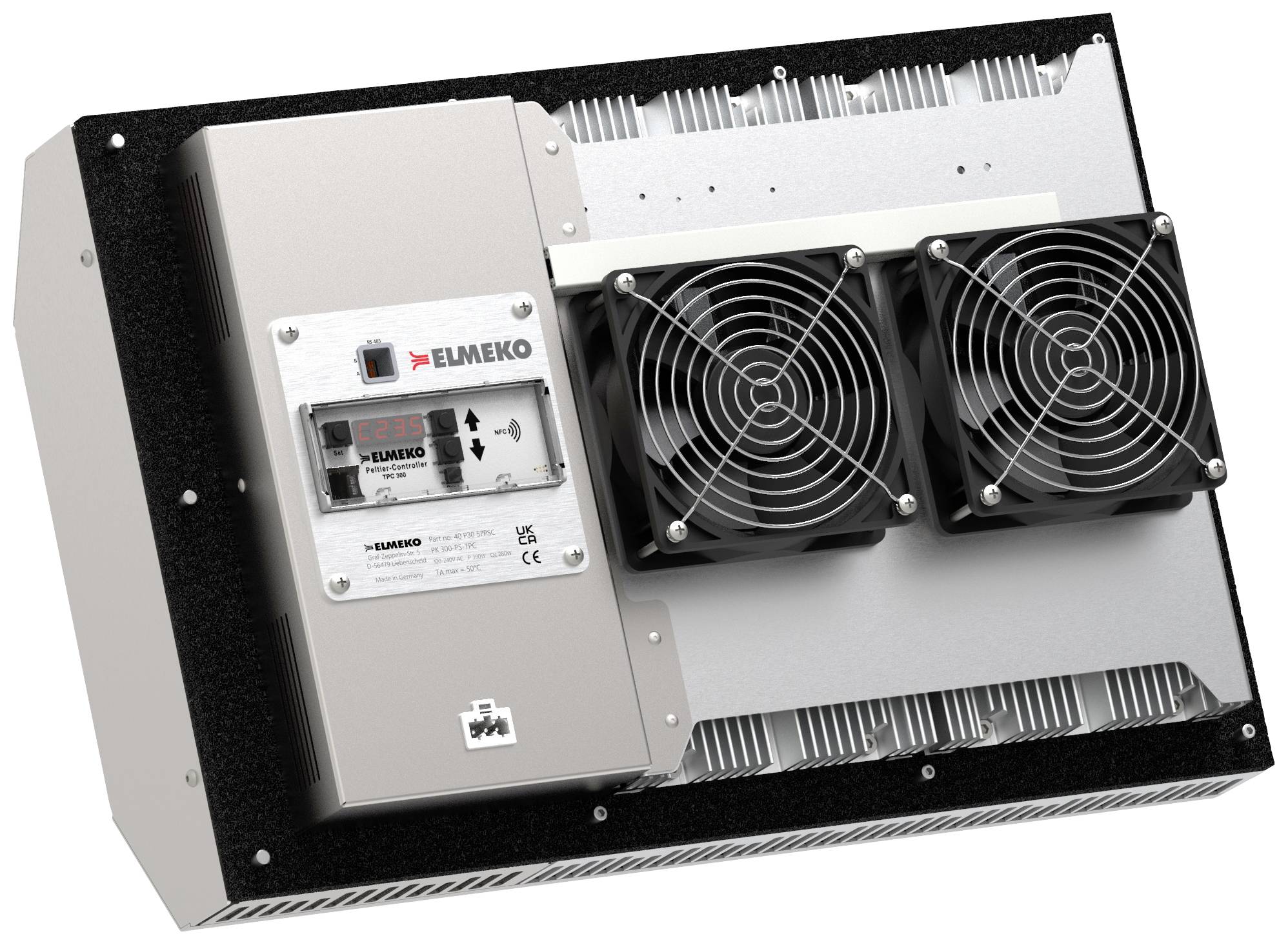

PELTIER-COOLER PK 300-PS-TPC, 100-240 V AC, 280 W
- Peltier cooling device
- PK 300-PS-TPC, 100-240 V AC, 280 W
- Cooling performance L35L35: 280 W
- Protection system: IP65
- Cut-out 443 x 302 mm
- Air volume flow external circuit: 680 m³/h.
- Internal loop air volume flow: 350 m³/h.
- For heating and cooling operation
Technical specifications
- Air volume flow external circuit: 680 m³/h.
- Internal loop air volume flow: 350 m³/h.
- Product type
Cooler
- Type
PK 300-PS-TPC, 100-240 V AC, 280 W
- Min. operating voltage
100 V AC
- Max. operating voltage
240 V AC
- Operating voltage
100 - 240 V AC
- Max. current consumption
3.3 A
390 W
- Noise emission (max.)
80 dBa
- Air flow rate
680 m³/h
60000 h
- Min. temperature
-20 °C
- Max. temperature
70 °C
IP65
- Connection
Connector
- Width
480 mm
- Height
330 mm
- Depth
190 mm
- Dim
(W x H x D) 480 x 330 x 190 mm
- Weight
20.8 kg
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2603771 Elmeko PK 300-PS-TPC, 100-240 V AC, 280 W Cooler 390 W (W x H x D) 480 x 330 x 190 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2603771 Elmeko PK 300-PS-TPC, 100-240 V AC, 280 W Cooler 390 W (W x H x D) 480 x 330 x 190 mm 1 pc(s)
Description
PELTIER-COOLER PK 300-PS-TPC, 100-240 V AC, 280 W
