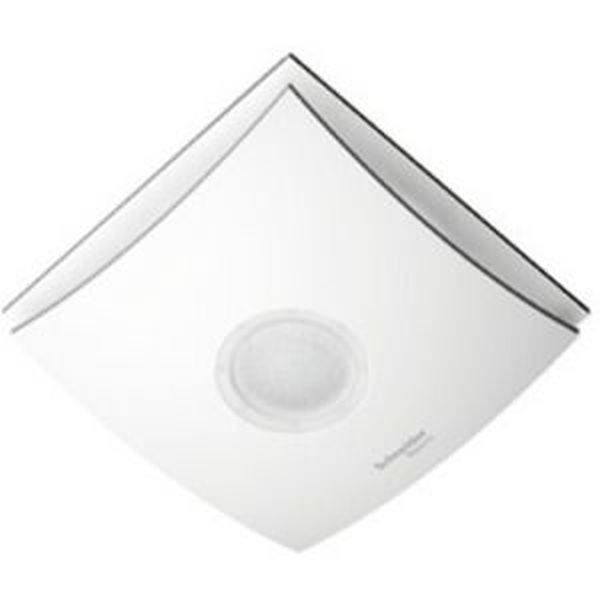

ELSO CCT56P002 ELSO interior motion detector CCT56P002 Argus standard 360° white Motion detector Standard White 1 pc(s)

Ceiling motion detector for indoors. 360 degree area monitoring. Attractive flat design. Automatic switching on and off of the lighting. Quick and easy adjustment of brightness threshold and switching time Mains voltage AC 220-240 V, 50 Hz Max. Switching current 10 A, 220-240 V AC, Cos phi 0.6. Rated power: LED lamps: 200 W. Incandescent lamps AC 230 V: 1000 W. Halogen lamps AC 230 V: 1000 W. Halogen (electronic transformer): 315 VA. Halogen (iron core transformer) 500 VA Fluorescent tubes: 250 VA. Capacitive load (6 A test current): 28 uF Capacity load (10 A test current): 21 uF Compact fluorescent lamps: 4x23 W. Own power consumption: < 2 W. Capturing angle: 360 degrees. Range: Radius of max. 7.4 m (at a mounting height of 2.4 m). Light sensor (sensitivity) 5-2000 Lux Time setting: From approx. 3 s to approx. 10 min, tolerance 2-8 s. Switching mode: Automatic. Connection: 3-wire, neutral conductor required. Operating temperature: At room temperature. Protection IP 20. EC Directives: Low Voltage Directive 2006/95EC and EMC Directive 2004/108/EC. Colour white. Dimensions (LxWxH): 135x135x43 mm with net weight: 208g Colour white.

This text is machine translated.
