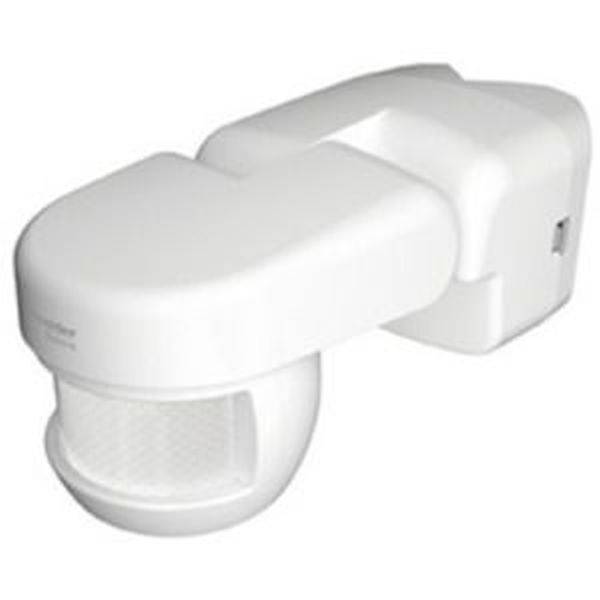

ELSO CCT56P004 ELSO Outdoor Motion Detector CCT56P004 Argus Standard 120° Motion detector Standard White 1 pc(s)

Motion detector for outdoor area. 120 degree area surveillance for small house fronts and areas of the house. Flexible adjustable sensor head Automatic switching on and off of the lighting. Simple use and energy saving by adjusting the brightness threshold and switching time. Weatherproof housing. It is possible to hide individual lens ranges. Mounting at outdoor / inside corners. Mains voltage AC 220-240 V, 50 Hz Max. Switching current 10 A, 220-240 V AC, Cos phi 0.6. Rated power: LED lamps: 200 W. Incandescent lamps AC 230 V: 1000 W. Halogen lamps AC 230 V: 900 W. Halogen (electronic transformer): 250 VA. Halogen (iron core transformer) 500 VA Fluorescent tubes: 200 VA. Capacitive load (6 A test current): 21 uF Capacity load (10 A test current): 14 uF Compact fluorescent lamps: 3x23 W. Own power consumption: < 2 W. Capturing angle: 120 degrees. Range: Max. 12 with light sensor (sensitivity): 5-2000 Lux. Time setting: From approx. 3 s to approx. 30 min, tolerance 2-6 s. Switching mode: Automatic, manual actuation. Connection: 3-wire, neutral conductor required. Operating temperature: -15 degrees to +40 degrees. IP 55 protection EC Directives: Low Voltage Directive 2006/95/EC and EMC Directive 2004/108/EC. Colour white. Dimensions (LxWxH): 164x80x75 mm (with mounting bracket), 140x80x75 (without mounting bracket). Net weight: 226g (with mounting bracket), 205g (without mounting bracket). Supplied with mounting bracket for outdoor/indoor corners. Colour white.
