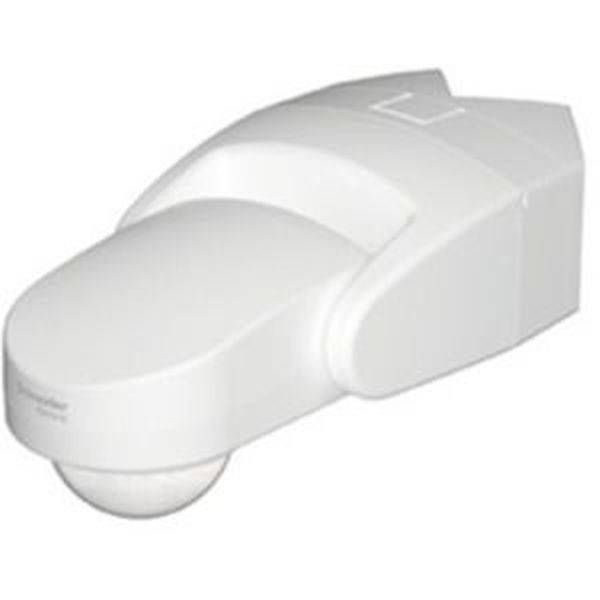

ELSO CCT56P008 ELSO Outdoor Motion Detector CCT56P008 Argus Standard 360° Motion detector ELSO White 1 pc(s)

Motion detector for outdoor area. 360 degree area surveillance for larger house fronts and areas of the house. Flexible adjustable sensor head Automatic switching on and off of the lighting. Simple use and energy saving by adjusting the brightness threshold and switching time. Weatherproof housing. It is possible to hide individual lens ranges. Mounting at outdoor / inside corners. Mains voltage AC 220-240 V, 50 Hz Max. Switching current 10 A, 220-240 V AC, Cos phi 0.6. Rated power: LED lamps: 200 W. Incandescent lamps AC 230 V: 1000 W. Halogen lamps AC 230 V: 800 W. Halogen (electronic transformer): 315 VA. Halogen (iron core transformer) 500 VA Fluorescent tubes: 250 VA. Capacitive load (6 A test current): 28 uF Capacity load (10 A test current): 21 uF Compact fluorescent lamps: 4x23 W. Self-consumption: Max. 2.5 W. Detection angle: 360 degrees. Range: Max. 12 with light sensor (sensitivity): 5-2000 Lux. Time setting: From approx. 5 s to approx. 20 min, tolerance 2-8 s. Switching mode: Automatic, manual actuation. Connection: 3-wire, neutral conductor required. Operating temperature: -15 degrees to +40 degrees. IP 55 protection EC Directives: Low Voltage Directive 2006/95/EC and EMC Directive 2004/108/EC. Colour white. Dimensions (LxWxH): 170x88x76 mm (with mounting bracket), 142.5x88x76 (without mounting bracket). Net weight: 256g (with mounting bracket), 230g (without mounting bracket). Supplied with mounting bracket for outdoor/indoor corners. Colour white.

This text is machine translated.
