ELSO CCT570003 ELSO interior motion detector CCT570003 Argus 360° white Motion detector ELSO 1 pc(s)

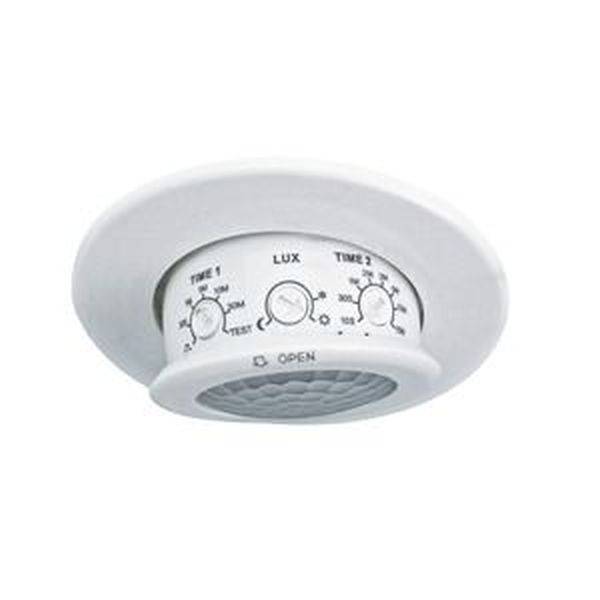

Ceiling motion detector for indoors. 360 degree area monitoring. Attractive flat design. Automatic switching on and off of the lighting. Quick and easy adjustment of brightness threshold and switching time The device consists of a sensor head and a power unit with a permanently connected connection cable (length 35 cm). Installation of the sensor head in a 63 mm ceiling section. Functions: -Motion detection by means of passive infrared technology. 2 outputs (e.g. 1x light + 1x fan). Mains voltage AC 220-240 V, 50 Hz Max. Switching current 10 A, 220-240 V AC, Cos phi 0.6. Nominal power: Output 1: LED lamps: 100 W. Bulbs AC 230 V: 1000 W. Halogen lamps AC 230 V: 900 W. Halogen with electronic transformer: 250 VA. Halogen with iron core transformer 500 VA Fluorescent tubes: 200 VA. Capacitive load (6 A test current): 21 uF Capacity load (10 A test current): 14 uF Compact fluorescent lamps 100 W. Output 2: - Relay switching capacity AC 250 V, 5 A (Cos Phi 1). Motor: 100 W. Upstream fuse: 10 A. Power consumption: < 2 W. angle of detection: 360 degrees. Range: Radius of max. 3.5 m (at a mounting height of 2.5 m). Light sensor (sensitivity) 5-1000 Lux Time setting: Time 1: From approx. 30 s to approx. 30 min. Time 2: From approx. 10 s to approx. 15 min. Switching mode: Automatic. Connection: 3-wire, neutral conductor required. Operating temperature: At room temperature. Protection IP 20. EC Directives: Low-voltage Directive. 2006/95EC and EMC Directive 2004/108/EC. Colour white. Dimensions (LxWxH): Sensor 100x81x45 mm Power section:106x57x 34 mm
