Buy encitech D45PK-M-09-K 6560-0146-11 Number of pins: 9 Plastic, metallised 45 ° Silver 1 pc(s)

Metal connector housing, silver, with screw closures, suitable for industrial applications or electronic devices.

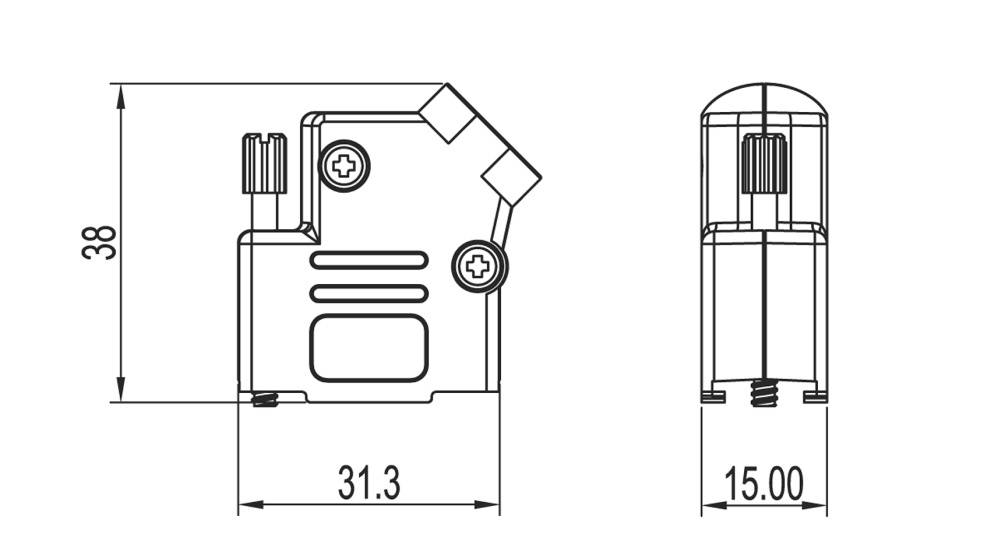

Technical drawing of a component with dimensions: Height 38 mm, Width 31.3 mm, Depth 15 mm. Front and side views shown.

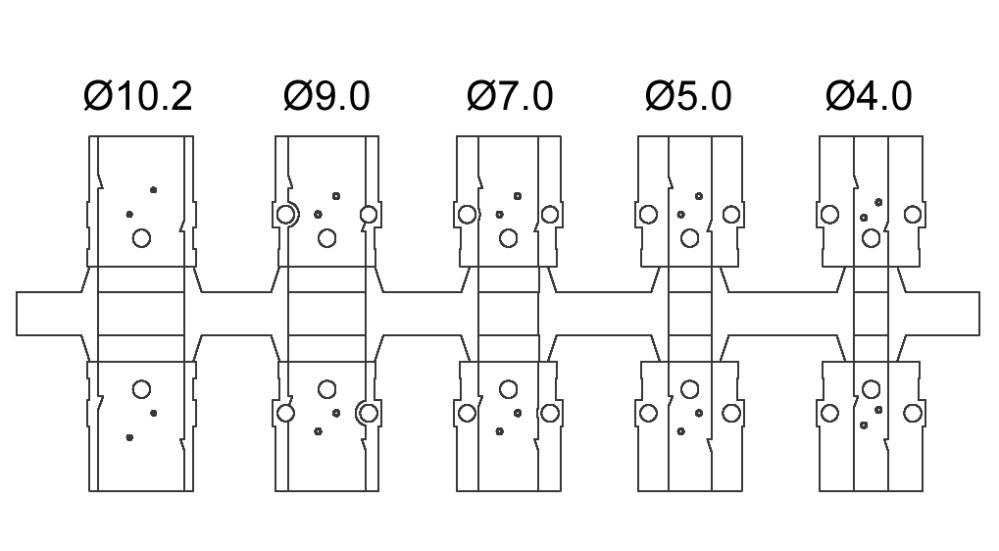

Diagram shows five mechanical parts in a row, each with different bore diameters: Ø10.2, Ø9.0, Ø7.0, Ø5.0, Ø4.0.

1/3

Number of pins

Case material

Plastic, metallised

Cable outlets

Connection angle

45 °

Content

1 pc(s)

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

133 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 2.51 / piece)

€ 2.51

plus VAT.

Report legal concerns

Highlights & Details

Number of pins: 9
Plastic, metallised

Technical specifications

Number of pins: 9

Case material: Plastic, metallised

Cable outlets: 1

Factory colour: Silver

Connection angle: 45°

Content: 1 pc(s)

Shielded: No

Manufacturer part #: 6560-0146-11

Industrial packaging: No

Width: 15 mm

Height: 36.3 mm

Length: 31 mm

Features: Cable outlet (lateral)
1x cable exit (lateral)
+ 4-40 knurl head screw

Temperature range: -55 °C - +110 °C

Type: D45PK-M-09-K

Cable diameter (details): 11.70 mm
