encitech DTZK25-K 6560-0105-03 D-SUB housing Number of pins: 25 Solid metal 180 ° Metallic 1 pc(s)

Metal housing for D-sub connectors with screws and cable entry, used for protecting and stabilising connections.

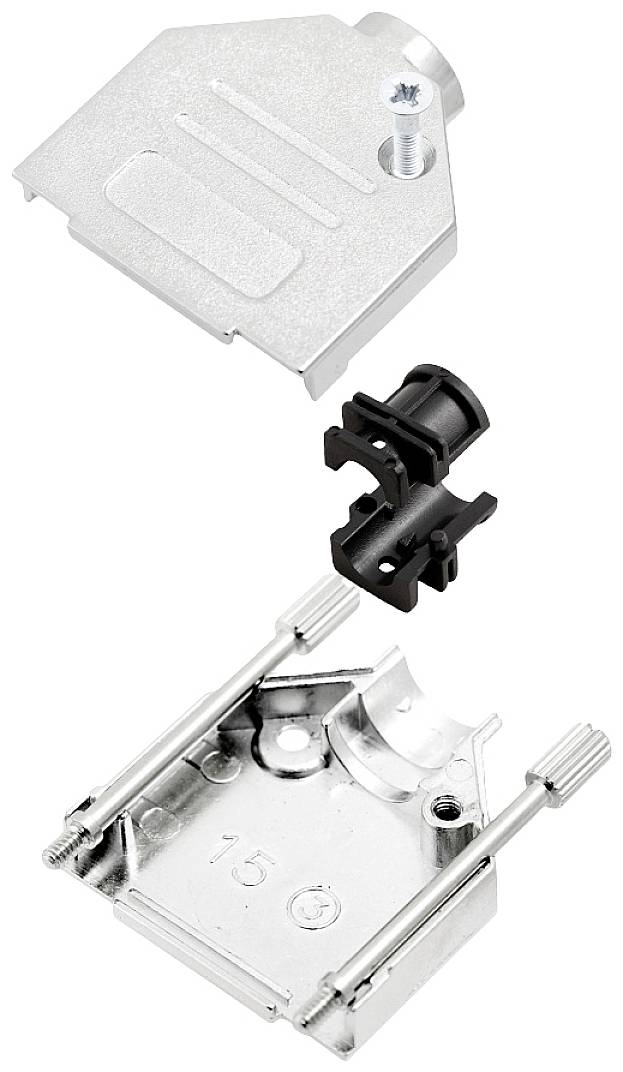

Metal plug housing in individual components, consisting of an upper and lower cover, a black plastic part, and screws.

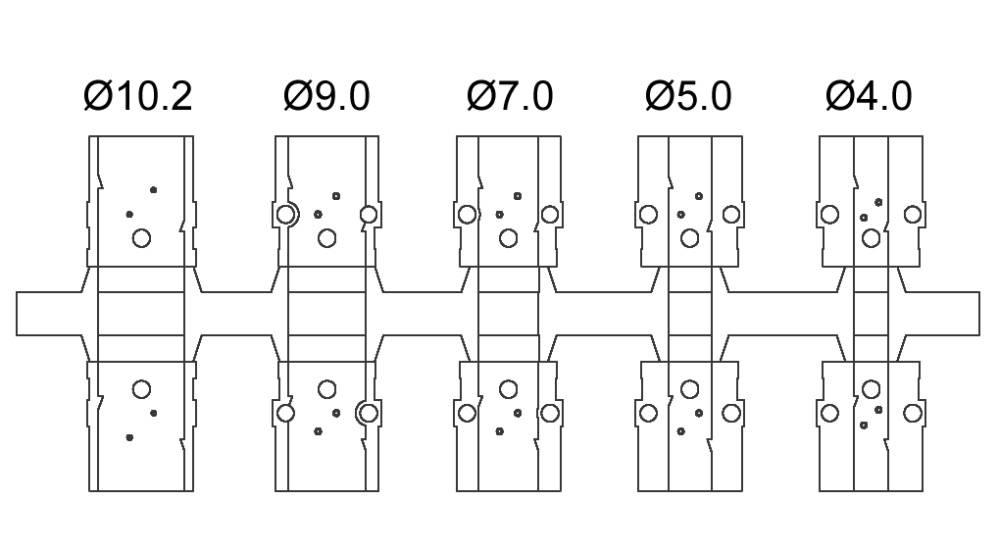

Assembly Instructions for a Modular System: Five Units with Drill Diameters Ø10.2, Ø9.0, Ø7.0, Ø5.0 and Ø4.0.

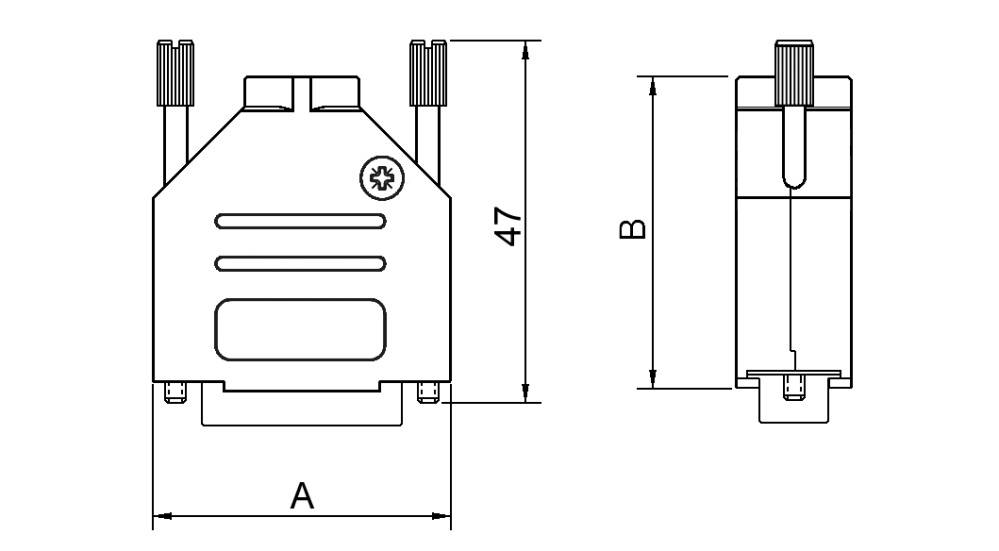

'Technical drawing of a plug with front and side views. Dimensions A and B specified; height noted as 47 mm.'
1/4
Product type
D-SUB housing
Number of pins
25
Case material
Solid metal
Cable outlets
1
Connection angle
180 °
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
29 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 6.99 / piece)
€ 6.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

D-SUB housing DTZK

  • Number of pins: 25
  • Solid metal

Technical specifications

Product type

D-SUB housing

Number of pins

25

Case material

Solid metal

Cable outlets

1

Factory colour

Metallic

Connection angle

180°

Content

1 pc(s)

Shielded

Yes

Manufacturer part #

6560-0105-03

Industrial packaging

No

Width

15 mm

Height

48.5 mm

Length

53.5 mm

Features

1x cable entry (straight)

Temperature range

-40°C to +120 °C

Type

DTZK25-K

Cable diameter (details)

11.50 mm

Documents & Downloads

Datasheet

Datasheet 1612600 encitech DTZK25-K 6560-0105-03 D-SUB housing Number of pins: 25 Solid metal 180 ° Metallic 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1612600 encitech DTZK25-K 6560-0105-03 D-SUB housing Number of pins: 25 Solid metal 180 ° Metallic 1 pc(s)
