Enclosure extension 09 15 503 0301 09155030301 HARTING 1 pc(s) Single
Packaging type
Single
Product type
Enclosure extension
Case material
Polypropylene
Type
09 15 503 0301
Manufacturer part #
09155030301
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Series: HAN® F+B.
- Type of locking: Screw lock
- Temperature limit: -40 ... +125 °C
- Mating cycles ≥ 500
- Material flammability class acc. To UL 94: HB
- Net weight: 14.76 g
- Notes: Cleaning: A cleaning distance of > 30 cm is recommended for cleaning with high-pressure lancets to avoid functional damage to the outside of the connector.;Strain relief: Plug connectors with HAN® F+B require a suitable strain relief, e.g. to withstand the stress caused by daily cleaning of the machines. DIN VDE0100-520: 2013-06 specifies the strain relief depending upon the cable diameter.
- Application area: Connector for the food industry
- Protection class according to IEC 60529: IP67 when locked;IP6K9K according to ISO 20653
- Housing description: Straight;with through holes for mounting screws
- Approvals: Ecolab Topactive 200;Ecolab Topactive 500;Ecolab Topax 66;Ecolab Topactive OKTO;Ecolab Topax 990;FDA 21 CFR 177.1520;FDA 21 CFR 177.2600
- Casing type: Attachment casing
- Material housing: Polypropylene
- Colour of housing: Black
- Material seal: EPDM;Silicone
- Seal color: Blue
- Limit temperature note: When used as a connector in accordance with IEC 61984.
- Surface roughness: ≤ 1.12 µm
- Packaging type
Single
- Type
09 15 503 0301
- Product type
Enclosure extension
- Manufacturer part #
09155030301
- Features
+ screw lock
straight
+ seal
+ clearance hole
- Case material
Polypropylene
- Mating cycles
≥ 500
- Series
Han® F+B
- Content
1 pc(s)
IP67
IP6K9K
- Max. temperature
+125 °C
- Min. temperature
-40 °C
FALSE
FALSE
Black
Screw
FALSE
FALSE
Plastic
Other
-40-125 °C
Other
FALSE
TRUE
Housing extension
IP67
Other
None
None
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3001518 Enclosure extension 09 15 503 0301 09155030301 HARTING 1 pc(s) Single
Datasheet 3001518 Enclosure extension 09 15 503 0301 09155030301 HARTING 1 pc(s) Single
User & Safety Instructions
User & Safety Instructions 3001518 Enclosure extension 09 15 503 0301 09155030301 HARTING 1 pc(s) Single
Description

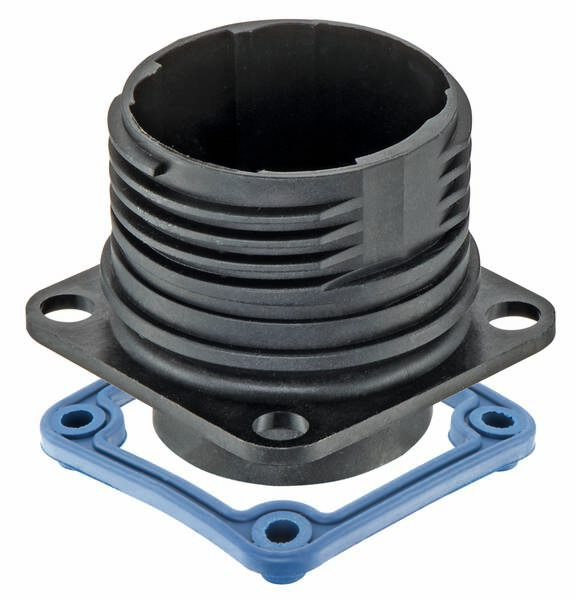

Extension housing, straight, with through holes for mounting screws, screw locking, material housing: Polypropylene, black
