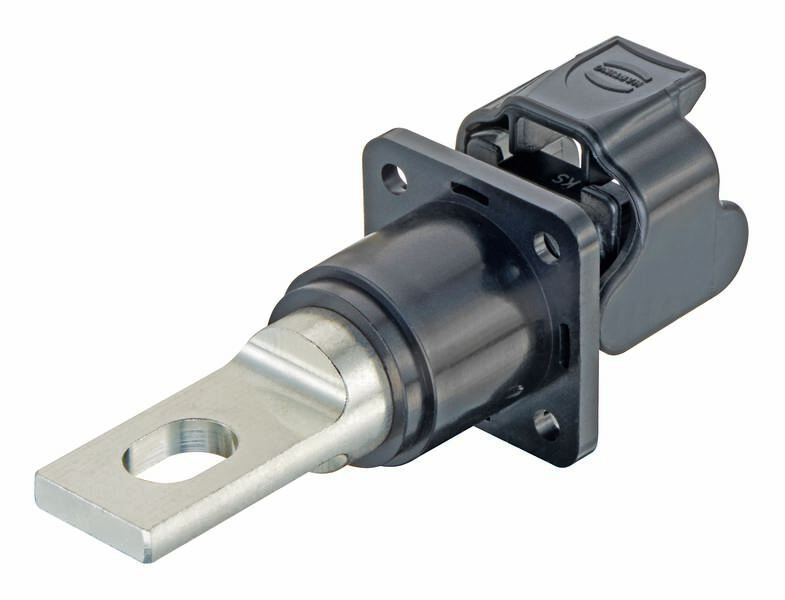

Enclosure extension 09 93 001 0303 09930010303 HARTING 1 pc(s)
Product type
Enclosure extension
Case material
Polyamide
Type
09 93 001 0303
Manufacturer part #
09930010303
Features
Longitudinal brace
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Series: HAN® S
- Number of contacts: 1
- Lock type: Longitudinal handle
- Rated current 200 A
- Insulation resistance >108 Ω
- Continuous resistance ≤ 0.3 mΩ
- Temperature limit: -40 ... +125 °C
- Material contacts: Copper alloy
- Silver-plated contact surface
- Material flammability class acc. To UL 94: V-0
- IEC 60664-1;EN 45545-2 fire protection in rail vehicles;IEC 61984;UL 1973;UL 4128;UL 9540;UL 1977
- Net weight: 40 g
- Designation: HAN® S 200
- Rated voltage: 1,500 V
- Dimensioning surge voltage: 8 kV
- Pollution level: 2
- Fire protection in rail vehicles: EN 45545-2 (2020-08)
- Range of applications: Energy storage systems
- Protection class according to IEC 60529: IP40 when connected;IP20 when not connected (1500 V DC; 1000 V AC)
- Housing description: Inc. Pin contact with bus bar connection
- Tightening torque: 11 Nm
- Casing type: Attachment casing
- Material housing: Polyamide (PA)
- Colour of housing: RAL 9005 (jet black)
- Limit temperature note: When used as a connector in accordance with IEC 61984.
- Number of relocks: ≥ 500
- Type
09 93 001 0303
- Product type
Enclosure extension
- Manufacturer part #
09930010303
- Features
Longitudinal brace
- Total no. of pins
1
- Case material
Polyamide
- Series
Han® S
- Rated voltage
1500 V
- Test current
200 A
- For insets/pin/socket
Stiftkontakt
- Content
1 pc(s)
- Material (details)
Copper alloys
- Number of pins
1
IP40
IP20
- Max. temperature
125 °C
- Min. temperature
-40 °C
- Contamination level
2
FALSE
FALSE
Black
Single locking lever
FALSE
FALSE
Plastic
Other
-40-125 °C
V0
FALSE
FALSE
Housing extension
IP20
Other
Base unit
None
Documents & Downloads
Datasheet
Datasheet 3001552 Enclosure extension 09 93 001 0303 09930010303 HARTING 1 pc(s)
Datasheet 3001552 Enclosure extension 09 93 001 0303 09930010303 HARTING 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3001552 Enclosure extension 09 93 001 0303 09930010303 HARTING 1 pc(s)
Description
Extension housing, included Pin contact with busbar connection, longitudinal brace, material housing: Polyamide (PA), RAL 9005 (jet black)
