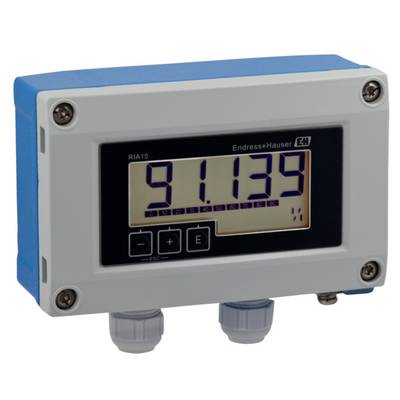

Endress+Hauser RIA15-AAB2 Sensor gauge RIA15 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor gauge
Type
RIA15
Content
1 pc(s)
Length
55.5 mm
Width
131 mm
Number
Total (€ 315.13 / piece)
€ 315.13
plus VAT.
Highlights & Details
Display device display / display RIA15-AAB2 Ex-free area field housing Alu 131x81,5x55,5mm 4-20mA current signal + HART
- Approval: Ex-free range
- Casing: Field casing Alu 131x81,5x55,5mm
- Input 4-20mA current signal + HART
Technical specifications
- Product type
Sensor gauge
- Type
RIA15
- Content
1 pc(s)
- Length
55.5 mm
- Width
131 mm
- Height
81.5 mm
- RoHS-compliant
Yes
- Material
Aluminium
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2989155 Endress+Hauser RIA15-AAB2 Sensor gauge RIA15 1 pc(s)
User & Safety Instructions 2989155 Endress+Hauser RIA15-AAB2 Sensor gauge RIA15 1 pc(s)
Description
The loop-fed RIA15 process indicator displays 4 to 20 mA measured values or optionally up to four HART® process variables of a sensor in all sectors. The RIA15 has a 5 digit measuring value display with 17 mm digit height with dimension, bar graph and selectable background lighting and can be used in the control panel installation housing or in the field housing as an on-site display.
This text is machine translated.
This text is machine translated.
Features
- Simple configuration and parameter assignment on site with 3 buttons on front.
- No external power supply is necessary, the device is directly fed by the current loop.
- Perfect solution for measurement points that are difficult to access, especially in case of long wiring distances/ voltage drop < 1V
- Queries up to 4 different measured values in an ongoing process and displays them (via HART protocol).
