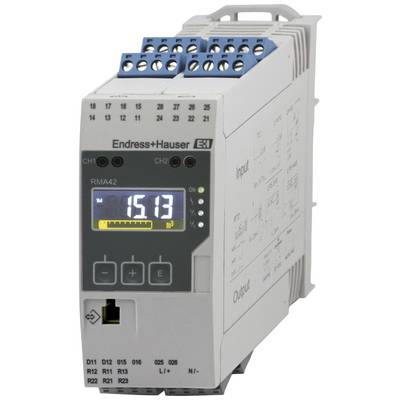

Endress+Hauser RMA42 Process transmitter with control unit/transmitter RMA42-AAA
EAN:
Part number:
Item no:
Type
RMA42
Output signal
4 - 20 mA
Dim
(L x W x H) 118 x 45 x 115 mm
Manufacturer part #
RMA42-AAA
Width
45 mm
Number
Total (€ 318.49 / piece)
€ 318.49
plus VAT.
Highlights & Details
Process transmitter with control unit/transmitter
- Signal type 0/4-20 mA, 0-10 V
- Voltage type: Alternating current
- Universal input type (U, I, TC, RTD)
- Approval: Non-explosive area
- Input 1x universal
- Output: 1x analogue
Technical specifications
- Type
RMA42
- Output signal
4 - 20 mA
- Dim
(L x W x H) 118 x 45 x 115 mm
- Manufacturer part #
RMA42-AAA
- Width
45 mm
- Height
115 mm
- Length
118 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2886363 Endress+Hauser RMA42 Process transmitter with control unit/transmitter RMA42-AAA
User & Safety Instructions 2886363 Endress+Hauser RMA42 Process transmitter with control unit/transmitter RMA42-AAA
Description
The RMA42 process transmitter displays analog measured values. Two-wire sensors can be supplied with the integrated loop power supply. The universal inputs enable the connection of current, voltage, RTDs and TCs. The multi-colored LCD-display with 7-segment bar graph enables the display of the device. A device that covers a large number of functions and applications: Loop power supply, barrier, integrated relays, calculations and display of measured values. Perfect complement for fill level measurements, as it can be used as overfill protection, offers calculations such as mean value or difference, e.g. for differential pressure applications, and can be used to linearize a tank. Simple on-site configuration with 3 buttons and remote commissioning from a safe and convenient location.
This text is machine translated.
This text is machine translated.
Features
- Display
- LCD
- 7 segment
- Multi-colour
- Bar graph
- DAY unit
- Color change in the event of an error
