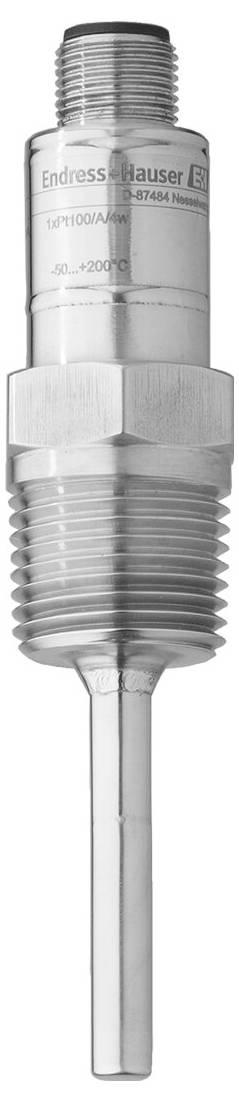

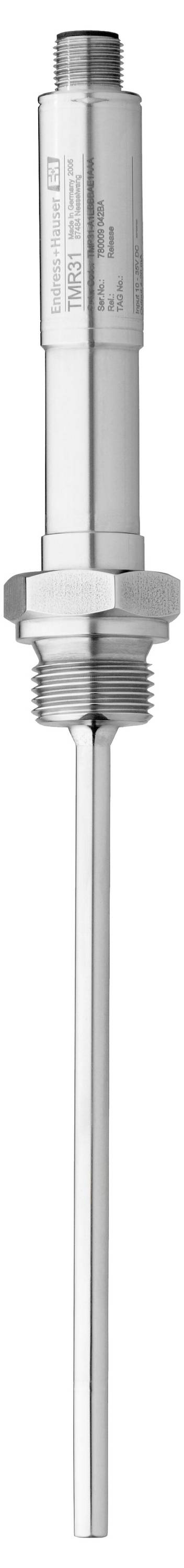

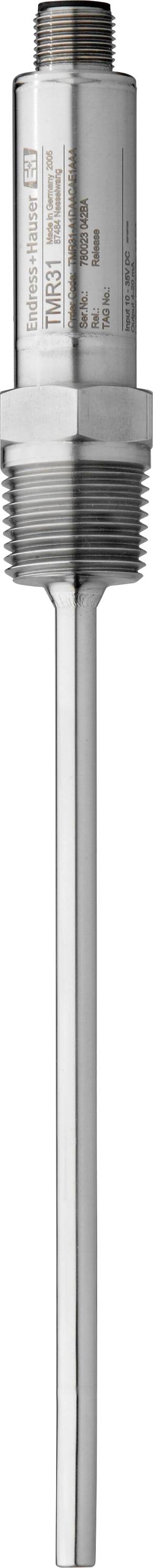

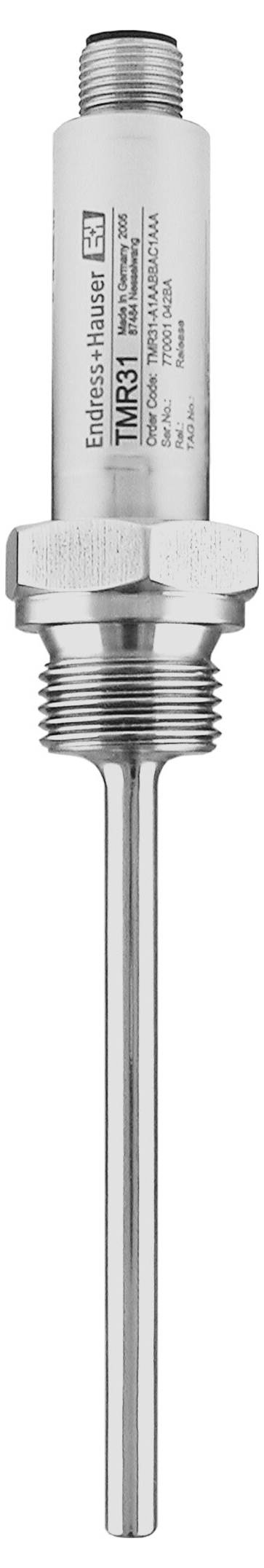

Endress+Hauser Thermometer TMR31-A1BBBBAB1AAA Sensor type Thermocouple Temperature reading range-50 up to 200 °C Sensor
Product type
Thermometer
Temperature reading range
-50 up to 200 °C
Sensor type
Thermocouple
Sensor diameter
6 mm
Type
TMR31
Datasheet (PDF)
Part number:
Item no:
Number
Total (€ 204.99 / piece)
€ 204.99
incl. VAT
14-day return policy included
Highlights & Details
Thermometer TMR31-A1CABB1AAA 50 mm; 6mm, G1/2 external thread, 316L 4-20mA; -50...+100oC
- Compact design made entirely of stainless steel
- Extremely short response time
- High accuracy even at short entry lengths
Technical specifications
- Insertion length L; Diameter D: 300 mm; 6mm (11.81"; 0.25")
- Process connection G1/2 External thread ISO228, 316L
- Output; measuring range: 4 - 20mA; -50...+100oC (-58...+212oF)
- Electrical connection: Connector M12, IP66/67/69K
- Approval: Ex-free range
- Product type
Thermometer
- Temperature reading range
-50 up to 200 °C
- Sensor type
Thermocouple
- Sensor diameter
6 mm
- Type
TMR31
- Manufacturer part #
TMR31-A1BBBBAB1AAA
- Dim
(L x W) 50 mm x 6 mm
- Probe length
50 mm
- Material
Stainless steel
- Temperature reading range (max.)
200 °C
- Temperature reading range (min.)
-50 °C
- Width
6 mm
- Length
50 mm
Documents & Downloads
Datasheet
Datasheet 3527456 Endress+Hauser Thermometer TMR31-A1BBBBAB1AAA Sensor type Thermocouple Temperature reading range-50 up to 200 °C Sensor
Datasheet 3527456 Endress+Hauser Thermometer TMR31-A1BBBBAB1AAA Sensor type Thermocouple Temperature reading range-50 up to 200 °C Sensor
Datasheet 3527456 Endress+Hauser Thermometer TMR31-A1BBBBAB1AAA Sensor type Thermocouple Temperature reading range-50 up to 200 °C Sensor
User & Safety Instructions
User & Safety Instructions 3527456 Endress+Hauser Thermometer TMR31-A1BBBBAB1AAA Sensor type Thermocouple Temperature reading range-50 up to 200 °C Sensor
Description
The EasyTemp TMR31 is a compact thermometer that can be used to measure temperatures from -50 °C to +150 °C or up to +200°C with neck.
