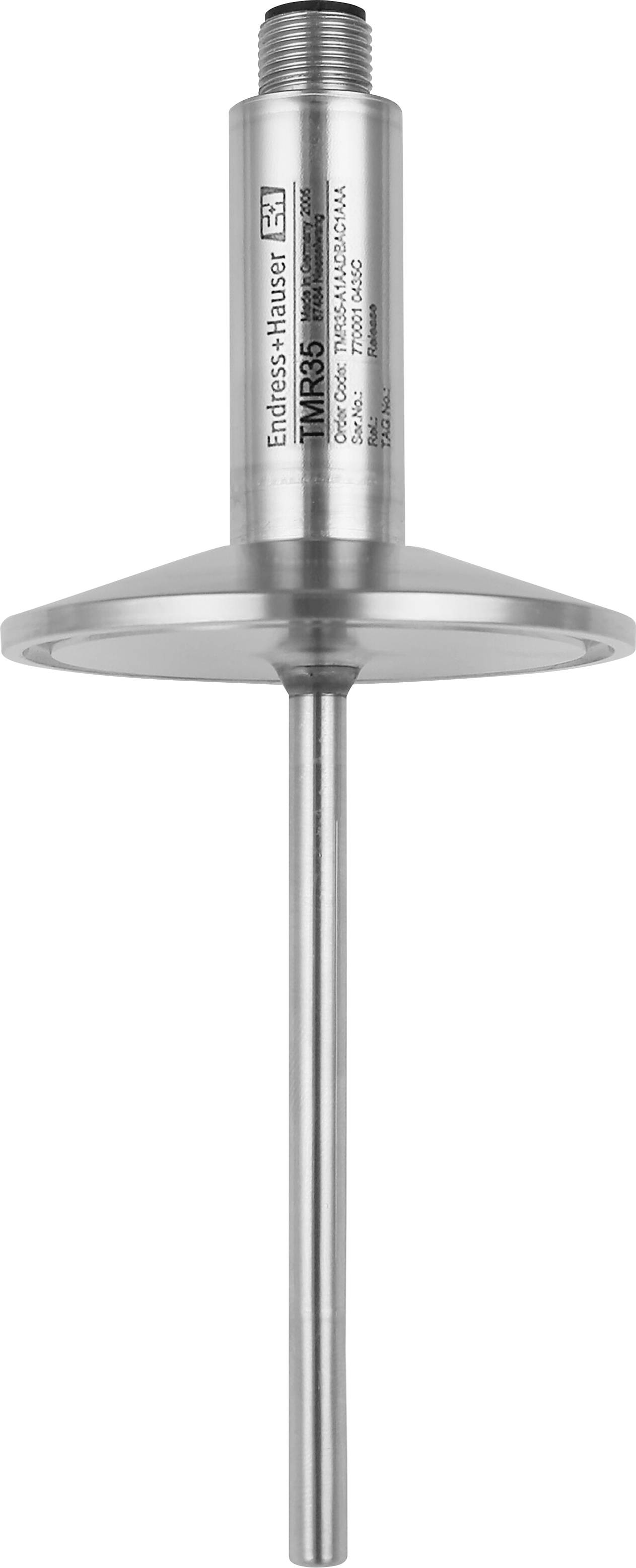

Endress+Hauser Thermometer TMR35-A1BADBAB1AAA Sensor type Thermocouple Temperature reading range-50 up to 200 °C Sensor
Product type
Thermometer
Temperature reading range
-50 up to 200 °C
Sensor type
Thermocouple
Sensor diameter
6 mm
Type
TMR35
Datasheet (PDF)
Part number:
Item no:
Number
Total (€ 179.99 / piece)
€ 179.99
incl. VAT
14-day return policy included
Highlights & Details
Thermometer TMR35-A1FCR1WB1AAA 83 mm; 3mm; cyl. 85mm, G3/8, 4-20mA; 0 to +200oC
- Compact design made entirely of stainless steel
- Extremely short response time
- High accuracy even at short entry lengths
Technical specifications
- Insertion length L; Diameter D: 30 mm; 6mm (1.18"; 0.25")
- Process connection G1/2 External thread ISO228, 316L
- Output; measuring range: 4-20mA; 0...+150oC (+32...+302oF)
- Electrical connection: Connector M12, IP66/67/69K
- Approval: Ex-free range
- Product type
Thermometer
- Temperature reading range
-50 up to 200 °C
- Sensor type
Thermocouple
- Sensor diameter
6 mm
- Type
TMR35
- Manufacturer part #
TMR35-A1BADBAB1AAA
- Probe length
50 mm
- Material
Stainless steel
- Temperature reading range (max.)
200 °C
- Temperature reading range (min.)
-50 °C
- Width
6 mm
Documents & Downloads
Datasheet
Datasheet 3527462 Endress+Hauser Thermometer TMR35-A1BADBAB1AAA Sensor type Thermocouple Temperature reading range-50 up to 200 °C Sensor
Datasheet 3527462 Endress+Hauser Thermometer TMR35-A1BADBAB1AAA Sensor type Thermocouple Temperature reading range-50 up to 200 °C Sensor
Datasheet 3527462 Endress+Hauser Thermometer TMR35-A1BADBAB1AAA Sensor type Thermocouple Temperature reading range-50 up to 200 °C Sensor
User & Safety Instructions
User & Safety Instructions 3527462 Endress+Hauser Thermometer TMR35-A1BADBAB1AAA Sensor type Thermocouple Temperature reading range-50 up to 200 °C Sensor
Description
EasyTemp TMR35 is a compact thermometer that can be used in hygienic applications for measuring temperatures from -50 °C to +150 °C or up to +200 °C with neck pipe. A variety of hygienic process connections ensure high flexibility.
This text is machine translated.
This text is machine translated.
