Name: Endress+Hauser TMT31 Temperature transmitter ITemp TMT31-URA1A1B3C1PA measuring input RTD RTD 4-conductor 4-20mA TMT31-U
Brand: Endress+Hauser
SKU: 2989390
Availability: BackOrder

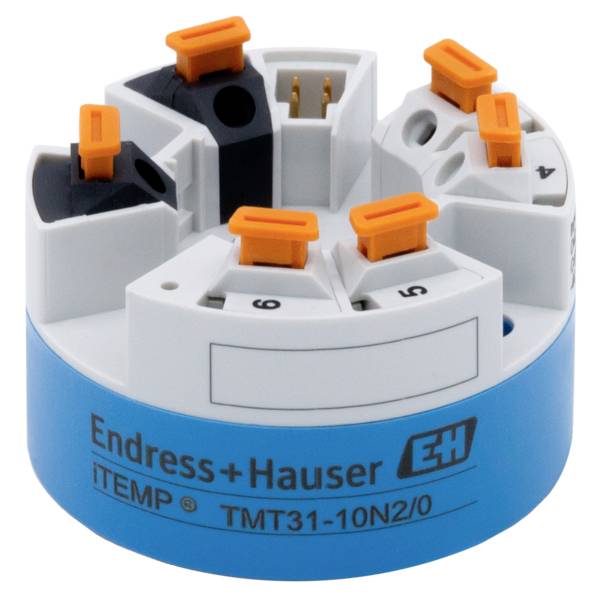

An Endress+Hauser iTEMP TMT31 temperature transmitter with terminals and blue base. Model number: TMT31-10N2/0.

Type

TMT31

Manufacturer part #

TMT31-URA1A1A1B3C1PA

Product type

Temperature transducer

EAN:

Part number:

Item no:

Dispatches on Thu 5 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 119.99 / piece)

€ 119.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Temperature transmitter ITemp TMT31-URA1A1B3C1PA measuring input RTD RTD 4-conductor 4-20mA

Approval: Ex-free area + UK marking
Output signal 4 to 20 mA
Housing design: Shape B head-transmitter, DIN EN 50446
Electrical connection: Screw terminals
Sensor input: Measurement input RTD
Device model: 1
>Sensor connector: RTD 4 wires
>Sensor type: Pt100, IEC60751 (a=0.00385), -200...+850oC, min. Span 10K
>>Accessories included: DIN mounting set
: Start of measurement:0 °C End of measurement:150 °C.

Technical specifications

Type: TMT31

Manufacturer part #: TMT31-URA1A1A1B3C1PA

Product type: Temperature transducer

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2989390 Endress+Hauser TMT31 Temperature transmitter ITemp TMT31-URA1A1B3C1PA measuring input RTD RTD 4-conductor 4-20mA TMT31-U

Description

The ITemp TMT31 is a 4-20mA RTD Temperature Head Transmitter . It offers high security and long-term stable, reliable measuring accuracy. The optimized connection technology with push-in terminals for tool-free, safe and extremely fast wiring ensures simple handling and easy installation. It is also available with classic screw terminals. The device is pre-configured with fixed parameters set in the factory or can be parameterized with free software tools.

This text is machine translated.

Features

Plug-in terminals for quick and tool-free wiring during installation or maintenance can reduce the wiring time by up to 85%.
Ready to use: Factory pre-configured or easy parameterization using free software tools.

Description

Features

Plug-in terminals for quick and tool-free wiring during installation or maintenance can reduce the wiring time by up to 85%.
Ready to use: Factory pre-configured or easy parameterization using free software tools.
