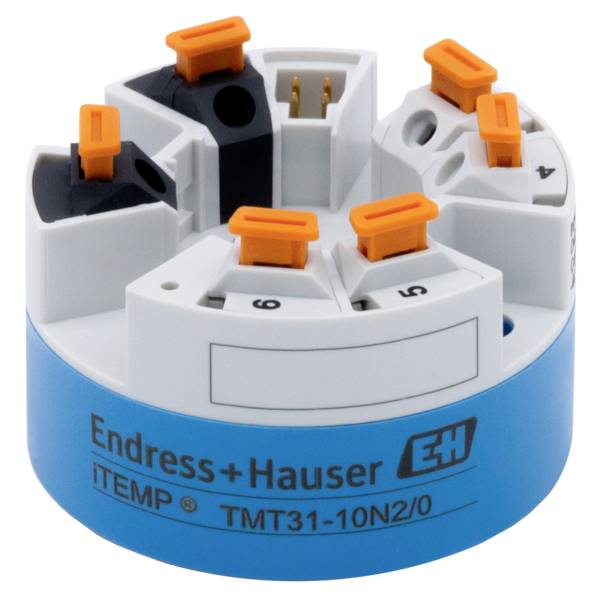

Endress+Hauser TMT31 Temperature transmitter ITemp TMT31-URA1B1B1B1B1B3C1PA measuring input RTD RTD 4-conductor 4-20mA T
Type
TMT31
Operating temperature
-50 °C (min)
Min. operating temperature
-50 °C
Manufacturer part #
TMT31-URA1B1A1B3C1PA
Product type
Temperature transducer
EAN:
Part number:
Item no:
Number
Total (€ 119.99 / piece)
€ 119.99
incl. VAT
14-day return policy included
Highlights & Details
Temperature transmitter ITemp TMT31-URA1B1B1B1B1B3C1PA measuring input RTD RTD 4-conductor 4-20mA
- Approval: Ex-free area + UK marking
- Output signal 4 to 20 mA
- Housing design: Shape B head-transmitter, DIN EN 50446
- Electrical connection: Push-in terminals
- Sensor input: Measurement input RTD
- Device model: 1
- >Sensor connector: RTD 4 wires
- >Sensor type: Pt100, IEC60751 (a=0.00385), -200...+850oC, min. Span 10K
- >>Accessories included: DIN mounting set
- : Start of measurement:-50 °C End of measurement:100 °C.
Technical specifications
- Type
TMT31
- Operating temperature
-50 °C (min)
- Min. operating temperature
-50 °C
- Manufacturer part #
TMT31-URA1B1A1B3C1PA
- Product type
Temperature transducer
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2989391 Endress+Hauser TMT31 Temperature transmitter ITemp TMT31-URA1B1B1B1B1B3C1PA measuring input RTD RTD 4-conductor 4-20mA T
User & Safety Instructions 2989391 Endress+Hauser TMT31 Temperature transmitter ITemp TMT31-URA1B1B1B1B1B3C1PA measuring input RTD RTD 4-conductor 4-20mA T
Description
The ITemp TMT31 is a 4-20mA RTD Temperature Head Transmitter . It offers high security and long-term stable, reliable measuring accuracy. The optimized connection technology with push-in terminals for tool-free, safe and extremely fast wiring ensures simple handling and easy installation. It is also available with classic screw terminals. The device is pre-configured with fixed parameters set in the factory or can be parameterized with free software tools.
This text is machine translated.
This text is machine translated.
Features
- Plug-in terminals for quick and tool-free wiring during installation or maintenance can reduce the wiring time by up to 85%.
- Ready to use: Factory pre-configured or easy parameterization using free software tools.
