Espressif ESP8266EX HF IC transceiver
EAN:
Part number:
Item no:
Product type
HF IC transceiver
Type
ESP8266EX
Manufacturer
Espressif
Technology
ESP8266
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 1.08
10
7% = € 0.08
€ 1.00
25
11% = € 0.12
€ 0.96
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 1.08 / piece)
€ 1.59
-32 %
€ 1.08
plus VAT.
Technical specifications
- Type
ESP8266EX
- Manufacturer
Espressif
- Technology
ESP8266
- Product type
HF IC transceiver
Documents & Downloads
Datasheet
Datasheet 2383833 Espressif ESP8266EX HF IC transceiver
User & Safety Instructions
User & Safety Instructions 2383833 Espressif ESP8266EX HF IC transceiver
Description
ICs from leading manufacturers. Full details free to download from our comprehensive product documents library.
Features
- Series: ESP8266
- Type: TxRx + MCU
- HF family/standard: WiFi
- Protocol: 802.11b/g/n.
- Frequency:2.4GHz
- Data rate (max.): 54MBits/s.
- Power output: 20dBm
- Sensitivity -91dBm
- Serial interfaces: I²C, I²S, SPI, UART
- GPIO 8
- Power supply: 2.5V to 3.6V
- Current reception: 50mA to 56mA
- Current - Sending: 120mA to 170mA
- Mounting type: Surface mounting

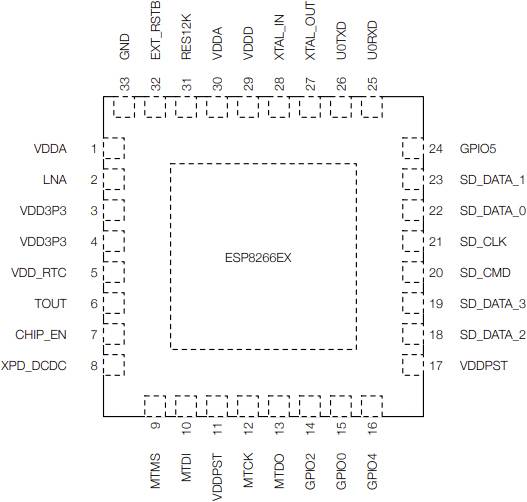

- Case / case: 32-VFQFN with exposed pad
- Housing type from supplier: 32-QFN (5x5)
- This text is machine translated.
Hints
The production time is at least 12 years from 01/01/2014.
