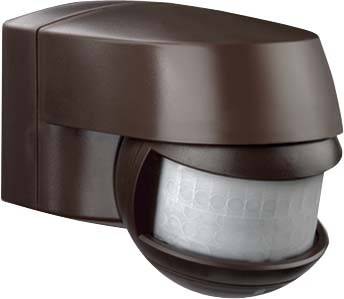

ESYLUX EM10025327 Surface-mount Motion detector 200 ° Relay Brown IP44
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Sensor type: passive infrared
- With DALI interface: no
- Constant light control: no
- The HVAC control: no
- Forced activation: no
- Forced cut-off: no
- Animal - i.e up: no
- Sneak/field monitoring: no
- Can be interlinked: no
- Scan angle: 200°
- Optimum mounting height: 2.5 m
- Staircase monitoring: no
- Bypass switch: no
- Max. The Front Range: 5 m
- Detection field diameter on floor: 20 m
- Suitable for wireless transmission: no
- Remote control: no
- With remote control: no
- The sensitivity can be set: no
- Adjustable threshold: yes
- With Signal Unit: no
- Teach function for the light-intensity threshold: no
- Suitable for ceiling mounting: no
- Suitable for wall mounting: yes
- Abdimmfunktion with dimming use: no
- Mounting type: wall mounted
- Connection type: screw terminal
- Material: plastic
- Material: thermoplastic
- Halogen-free: no
- Untreated surface:
- Design of the surface: mat
- Antibacterial treatment: No, RAL-number (similar): 8017
- Transparent: no
- Type of voltage: AC
- Mains frequency: 50/60 Hz.
- Switch-off delay: 0 s
- Switch-on delay: 0 s
- Suitable for C-load: no
- Number of switching zones: 1
- Max. Switch-on current: 4.5 A
- Control current 0 mA
- Extension input: no
- Alarm function: no
- Depth: 102 mm
- Product type
Motion detector
- Detection angle
200°
10 m
- Used at
Outdoors
- Mounting type
Surface-mount
- Operating voltage
230 V
- Contact type
Relay
- Switching capacity
1000 W
- Voltage (max.)
230 V
- Twilight settings
3 - 2000 lux
- Time settings
5 s - 5 min
- Factory colour
Brown
- Similar RAL
8017
IP44
- Operating temperature
-25°C to +55 °C
- Type
Motion detector
- Width
74 mm
- Height
81 mm
- Dim
(W x H x D) 74 x 81 x 102 mm
- Weight
0.26
- Voltage (min.)
230 V
- Depth
102 mm
- Max. temperature
55 °C
- Min. temperature
-25 °C
74
Movement sensor
FALSE
81 mm
102 mm
50-50 MHz
TRUE
30 A
8017
230-230 V
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1963962 ESYLUX EM10025327 Surface-mount Motion detector 200 ° Relay Brown IP44
User & Safety Instructions
User & Safety Instructions 1963962 ESYLUX EM10025327 Surface-mount Motion detector 200 ° Relay Brown IP44
Description
Motion detector with 200° detection zone for convenient switching of the lighting. One-hand socket mounting for quick and easy installation. Double the membrane cable entry. Connection socket with a large wiring space and wiring entry either from the top, bottom or backwards. Accompanying plug terminal for through-wiring of the earth. Adjustment of the detection and range by rotating and tilting ball head technology. Zero-voltage switching: Extension of the life span of relay and bulb. in case of electronic ballast devices (e.g. fluorescent lamps, LED) by gentle switch in the zero crossing. For the wall mounting. Special socket for inner and outer corner mounting as accessory.
