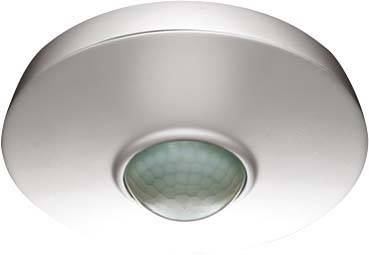

ESYLUX EM10425028 Flush mount Ceiling-mount occupancy sensor 360 ° White IP20
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Installation type: flush-mounted
- Sensor type: passive infrared
- Constant light control: no
- With DALI interface: no
- The HVAC control: no
- Constant light control: no
- Can be interlinked: no
- The HVAC control: no
- Suitable for wireless transmission: no
- Forced activation: no
- Sneak/field monitoring: no
- Forced cut-off: no
- Animal - i.e up: no
- Sneak/field monitoring: no
- Max. The Front Range: 4 m
- Can be interlinked: no
- Detection field diameter on floor: 8 m
- Scan angle: 360°
- The sensitivity can be set: yes
- Optimum mounting height: 3m
- Adjustable threshold: yes
- Staircase monitoring: yes
- Teach function for the light-intensity threshold: no
- Bypass switch: no
- Abdimmfunktion with dimming use: no
- Animal - i.e up: no
- Max. Presence Range: 7,08 m²
- Staircase monitoring: yes
- Max. The Front Range: 2 m
- Material: plastic
- Detection field diameter on floor: 8 m
- Material good: other
- Suitable for wireless transmission: no
- Halogen-free: yes
- Remote control: no
- With remote control: no
- The sensitivity can be set: no
- Min. Switch-on duration: 0 s
- Adjustable threshold: no
- Max. duty cycle 0 min
- With Signal Unit: yes
- Teach function for the light-intensity threshold: no
- Suitable for ceiling mounting: yes
- Suitable for wall mounting: no
- RAL-number (similar): 9010
- Abdimmfunktion with dimming use: no
- Installation type: flush-mounted
- Type of connection: Plug-in terminal
- Material: plastic
- Material: thermoplastic
- Halogen-free: yes
- Untreated surface:
- Design of the surface: mat
- Antibacterial treatment: no
- RAL-number (similar): 9010
- Transparent: yes
- Type of voltage: AC
- Min. Switch-on duration: 0 s
- Max. duty cycle 0 min
- Switch-off delay: 0 s
- Switch-on delay: 0 s
- Detection angle horizontal 180°. .360
- Swivel range sensor
- Horizontal: 0., 2.0°
- Swivel range sensor
- Vertical: 0., 2.0°
- Suitable for C-load: no
- Number of switching zones: 0
- Extension input: no
- Alarm function: no
- Installation depth: 15 mm
- Installation diameter: 60 mm
- Min. The depth of the device box: 15 mm
- Product type
Ceiling-mount occupancy sensor
- Detection angle
360°
4 m
- Used at
Indoors
- Mounting type
Flush mount
- Operating voltage
230 V
- Factory colour
White
- Similar RAL
9010
IP20
- Operating temperature
0 to 50 °C
- Type
Presence detector
- Width
140 mm
- Height
48 mm
- (Ø)
140 mm
- Dim
(Ø x H) 140 mm x 48 mm
- Weight
0.31
- Recess depth
15 mm
- Recess diameter
60 mm
- Max. temperature
50 °C
- Min. temperature
0 °C
Presence detector
TRUE
63 mm
15 mm
50-50 MHz
140 mm
FALSE
60 mm
9010
230-230 V
TRUE
15
TRUE
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1955823 ESYLUX EM10425028 Flush mount Ceiling-mount occupancy sensor 360 ° White IP20
User & Safety Instructions
User & Safety Instructions 1955823 ESYLUX EM10425028 Flush mount Ceiling-mount occupancy sensor 360 ° White IP20
Description
Slave presence detector for extending the detection range of a "master" presence detector with 360° detection range for ceiling mounting. Range of up to 8 m in diameter for a cost-effective system extension with up to 6 additional extensions. All parameters are set on the "master" detector, the "slave" detector detects movements and passes them on to the "master". Standard design as flush-mounted device. Universal surface-mounted socket IP 54 with 2facher membrane cable entry (accessories). Plug-in terminals in double assignment for through-wiring. Modular system made of Powerbox and plug-in sensor. Mount/connect PowerBox - after finishing the painting work, the sensor can be simply attached. Large wiring space thanks to low height of the Powerbox. The "slave" detector can be connected to the following presence detectors: PD 360i/8, PD 360i/24, PD 180i/R.
