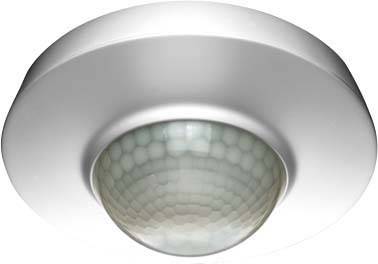

ESYLUX EM10425103 Flush mount Ceiling-mount occupancy sensor 360 ° Relay White IP20 Non-stop lighting mode
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Sensor type: Passive infrared
- With DALI interface: no.
- Constant light control: no.
- HVAC control: Yes
- Forced switching: Yes
- Forced shutdown: Yes
- Animal cut: no.
- Low-creep/back-field monitoring: no.
- Networkable: no.
- Scanning angle 360 °
- Optimum mounting height: 3 m.
- Staircase monitoring: Yes
- Override switch: Yes
- Max. Attendance: 28.31 m²
- Max. Range frontal: 4 m.
- Detection area Diameter on floor: 24 m.
- Suitable for wireless transmission: no.
- Remote control: Yes
- With remote control: no.
- Adjustable response sensitivity: Yes
- Adjustable response brightness: Yes
- With signal unit: Yes
- Teach function for response brightness: Yes
- Suitable for ceiling mounting: Yes
- Suitable for wall mounting: no.
- Dimming function with dimming insert: no.
- Mounting type: Flush-mounted
- Connection type: Plug-in terminal
- Material: Plastic
- Material quality: Thermoplastic
- Halogen-free: Yes
- Surface: Untreated
- Surface type: Matt
- Antibacterial treatment: no.
- RAL number (similar): 9010
- Transparent: Yes
- Voltage type: AC
- Mains frequency: 50/60 Hz.
- Switch-off delay: 0 s.
- Switch-on delay: 30 s.
- Detection angle horizontal: 180..360 °
- Suitable for C load: no.
- Number of switching zones: 1
- Max. Inrush current 800 A.
- Control current 0 mA
- Extension input: Yes
- Alarm function: no.
- Mounting depth: 15 mm
- Installation diameter 60 mm
- Min Depth of device socket: 15 mm
- Product type
Ceiling-mount occupancy sensor
- Detection angle
360°
12 m
- Used at
Indoors
- Mounting type
Flush mount
- Operating voltage
230 V
- Contact type
Relay
- Switching capacity
2300 W
- Voltage (max.)
230 V
- Twilight settings
5 - 2000 lux
- Time settings
15 s - 30 min
- Factory colour
White
- Similar RAL
9010
IP20
- Operating temperature
0 to +50 °C
- Type
Presence detector
- Length
140 mm
- Width
140 mm
- Height
60 mm
- (Ø)
140 mm
- Dim
(Ø x H) 140 mm x 60 mm
- features
Non-stop lighting mode
- Voltage (min.)
230 V
- Recess depth
15 mm
- Recess diameter
60 mm
- Max. temperature
50 °C
- Min. temperature
0 °C
Presence detector
TRUE
75 mm
15 mm
50-50 MHz
140 mm
FALSE
60 mm
800 A
9010
230-230 V
TRUE
FALSE
15
FALSE
FALSE
FALSE
TRUE
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1957198 ESYLUX EM10425103 Flush mount Ceiling-mount occupancy sensor 360 ° Relay White IP20 Non-stop lighting mode
User & Safety Instructions
User & Safety Instructions 1957198 ESYLUX EM10425103 Flush mount Ceiling-mount occupancy sensor 360 ° Relay White IP20 Non-stop lighting mode
Description
Presence detector with 360° detection range for ceiling mounting. Range of up to 24 m in diameter for use in offices, classrooms, conference rooms, etc. and through areas with very little or no part of daylight. Optimally suitable for installation at high altitudes up to 10 m, such as sports halls, warehouses, etc. 16 A high-power relay (tungsten-feed contact), especially suitable for switching capacitive loads such as EVGs, parallel compensated fluorescent lamps, compact fluorescent lamps, energy saving lamps. Automatic light control depending on presence and daylight. Additional switching contact "HVAC" for controlling the heating/ventilation air conditioning depending on presence. Programmable via remote control, e.g. Continuous light ON/OFF and automatic reading function of the current light value. Avoidance of operating errors by integrated selection switch remotely controllable/potentiometer setting. Standard design as flush-mounted device. Universal surface-mounted socket IP 54 with 2facher membrane cable entry (accessories). Plug-in terminals in double assignment for through-wiring. Modular system made of Powerbox and plug-in sensor. Mount/connect PowerBox - after finishing the painting work, the sensor can be simply attached. Large wiring space thanks to low height of the Powerbox. A fixed plant program ensures that the plant is ready for immediate operation. Additional button input for individual manual switching of the lighting. Detector can be used as full or semi-automatic. Extension of the detection range by connecting a "slave" presence detector. Thanks to concealed adjustment elements, no unintentional adjustment of the parameters. Integrated pulse function for controlling staircase lighting machines or signal devices and use for building technology/SPS.
