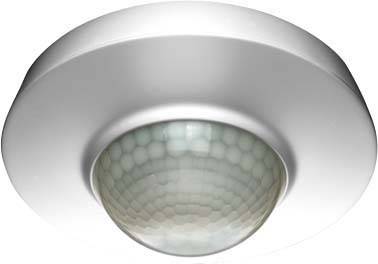

ESYLUX EM10425127 Flush mount Ceiling-mount occupancy sensor 360 ° White IP20
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Mounting type: Flush-mounted
- Sensor type: Passive infrared
- Constant light control: no.
- With DALI interface: no.
- HVAC control: no.
- Constant light control: no.
- Networkable: no.
- HVAC control: no.
- Suitable for wireless transmission: no.
- Forced switching: no.
- Low-creep/back-field monitoring: no.
- Forced shutdown: no.
- Animal cut: no.
- Low-creep/back-field monitoring: no.
- Max. Range frontal: 8 m.
- Networkable: no.
- Detection area Diameter on floor: 24 m.
- Scanning angle 360 °
- Adjustable response sensitivity: Yes
- Optimum mounting height: 3 m.
- Adjustable response brightness: Yes
- Staircase monitoring: Yes
- Teach function for response brightness: no.
- Override switch: no.
- Dimming function with dimming insert: no.
- Animal cut: no.
- Max. Attendance: 28.31 m²
- Staircase monitoring: Yes
- Max. Range frontal: 4 m.
- Material: Plastic
- Detection area Diameter on floor: 24 m.
- Material quality: Other
- Suitable for wireless transmission: no.
- Halogen-free: Yes
- Remote control: no.
- With remote control: no.
- Adjustable response sensitivity: no.
- Min Duty cycle: 0 s.
- Adjustable response brightness: no.
- Max. duty cycle 0 min
- With signal unit: Yes
- Teach function for response brightness: no.
- Suitable for ceiling mounting: Yes
- Suitable for wall mounting: no.
- RAL number (similar): 9010
- Dimming function with dimming insert: no.
- Mounting type: Flush-mounted
- Connection type: Plug-in terminal
- Material: Plastic
- Material quality: Thermoplastic
- Halogen-free: Yes
- Surface: Untreated
- Surface type: Matt
- Antibacterial treatment: no.
- RAL number (similar): 9010
- Transparent: Yes
- Voltage type: AC
- Min Duty cycle: 0 s.
- Max. duty cycle 0 min
- Switch-off delay: 0 s.
- Switch-on delay: 0 s.
- Detection angle horizontal: 180..360 °
- Swivel range sensor
- horizontal: 0..0 °
- Swivel range sensor
- vertical: 0..0 °
- Suitable for C load: no.
- Number of switching zones: 0
- Extension input: no.
- Alarm function: no.
- Mounting depth: 15 mm
- Installation diameter 60 mm
- Min Depth of device socket: 15 mm
- Product type
Ceiling-mount occupancy sensor
- Detection angle
360°
12 m
- Used at
Indoors
- Mounting type
Flush mount
- Operating voltage
230 V
- Voltage (max.)
230 V
- Factory colour
White
- Similar RAL
9010
IP20
- Operating temperature
0 to +50 °C
- Type
Presence detector
- Width
140 mm
- Height
60 mm
- (Ø)
140 mm
- Dim
(Ø x H) 140 mm x 60 mm
- Weight
0.32
- Recess depth
15 mm
- Recess diameter
60 mm
- Max. temperature
50 °C
- Min. temperature
0 °C
Presence detector
TRUE
75 mm
15 mm
50-50 MHz
140 mm
FALSE
60 mm
9010
230-230 V
TRUE
15
TRUE
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1958548 ESYLUX EM10425127 Flush mount Ceiling-mount occupancy sensor 360 ° White IP20
User & Safety Instructions
User & Safety Instructions 1958548 ESYLUX EM10425127 Flush mount Ceiling-mount occupancy sensor 360 ° White IP20
Description
Slave presence detector for extending the detection range of a "master" presence detector with 360° detection range for ceiling mounting. Range of up to 24 m in Ø for a cost-effective system extension with up to 6 additional extensions. Optimally suitable for installation at high altitudes up to 10 m, such as sports halls, warehouses, etc. All parameters are set on the "master" detector, the "slave" detector detects movements and passes them on to the "master". Standard design as flush-mounted device. Universal surface-mounted socket IP 54 with 2facher membrane cable entry (accessories). Plug-in terminals in double assignment for through-wiring. Modular system made of Powerbox and plug-in sensor. Mount/connect PowerBox - after finishing the painting work, the sensor can be simply attached. Large wiring space thanks to low height of the Powerbox. The "slave" detector can be connected to the following presence detectors: PD 360i/8, PD 360i/24, PD 180i/R.
