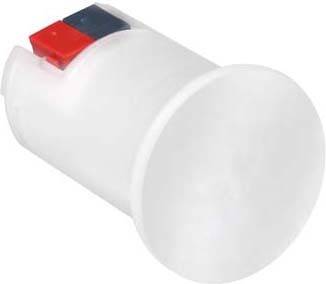

ESYLUX EP10427343 Flush mount Ceiling recess-mount occupancy sensor 360 ° IP55
EAN:
Part number:
Item no:
Technical specifications
- Sensor type: passive infrared
- With DALI interface: no
- Constant light control: yes
- The HVAC control: no
- Forced activation: yes
- Forced shut-off: yes
- Animal - i.e up: no
- Sneak/field monitoring: no
- Can be interlinked: no
- Scan angle: 360°
- Optimum mounting height: 3m
- Staircase monitoring: yes
- Bypass switch: no
- Max. Presence Range: 7,08 m²
- Max. The Front Range: 2 m
- Detection field diameter on floor: 8 m
- Suitable for wireless transmission: no
- Remote control: yes
- With remote control: no
- The sensitivity can be set: yes
- Adjustable threshold: yes
- With Signal Unit: yes
- Teach function for the light-intensity threshold: yes
- Suitable for ceiling mounting: yes
- Suitable for wall mounting: no
- Abdimmfunktion with dimming use: yes
- Installation type: flush-mounted
- Connection type: Other
- Material: plastic
- Material: thermoplastic
- Halogen-free: yes
- Untreated surface:
- Design of the surface: mat
- Antibacterial treatment: no
- Color: Other
- Transparent: no
- Type of voltage, AC/DC
- Mains frequency: 50/60 Hz.
- Switch-off delay: 30 s
- Delay: 300 s
- Detection angle horizontal 180°. .360
- Swivel range sensor
- Horizontal: 0., 2.0°
- Swivel range sensor
- Vertical: 0., 2.0°
- Max. circuit breaking capacity 72 W
- Suitable for C-load: no
- Number of switching zones: 1
- Max. Switch-on current: 2 A
- Control current 0 mA
- Extension input: yes
- Alarm function: no
- Mounting depth: 45 mm
- Installation diameter: 25 mm
- Min. The depth of the device box: 45 mm
- Product type
Ceiling recess-mount occupancy sensor
- Detection angle
360°
4 m
- Used at
Indoors
- Mounting type
Flush mount
- Operating voltage
36 V
- Switching capacity
72 W
- Voltage (max.)
36 V
- Standby current consumption
0.3 W
- Twilight settings
5 - 2000 lux
- Time settings
1 s - 60 min
IP55
- Operating temperature
-25 °C to +50 °C
- Type
Presence detector
- Height
15 mm
- (Ø)
33 mm
- Dim
(Ø x H) 33 mm x 15 mm
- Weight
0.20
- Voltage (min.)
12 V
- Recess depth
45 mm
- Recess diameter
25 mm
- Max. temperature
50 °C
- Min. temperature
-25 °C
Presence detector
TRUE
60 mm
45 mm
33 mm
FALSE
25 mm
12-36 V
FALSE
FALSE
45
FALSE
FALSE
FALSE
TRUE
FALSE
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1959683 ESYLUX EP10427343 Flush mount Ceiling recess-mount occupancy sensor 360 ° IP55
Description
Presence detector with 360° detection zone for the ceiling mounting. Range of up to 8 m in diameter for use in connection with building automation systems. Operating voltage 12-36V direct current or alternating current (AC/DC). Potential-free software-controlled switching output (NC/NO). Can be connected and disconnected detection display. Noiseless switching up to max. 2 A. Small, compact size for a mounting hole size of only 25 mm diameter. Fixed connection cable of 60 cm long. New Universal ESYLUX clamping technology for fast installation in a suspended ceiling, lights, flush-mounted junction boxes, cabinets etc... As a ceiling installation mounting in suspended, closed ceilings with enclosed spring clamps or clamping ring. Additional input for individual manual switching. Hard background program provides for an immediate readiness for operation.
