Eurolite IP PAR 12x8W QCL DMX LED effect light No. of LEDs (details): 12 8 W
EAN:
Part number:
Item no:
Technical specifications
- Product type
DMX LED effect light
- Colour
RGBW
96 W
- Dim
(W x H x D) 28.5 x 31.35 x 15.3 cm
n.rel.
- LEDs
12
- Weight
5.20 kg
- Width
28.5 cm
- Height
31.35 cm
- Watt per LED
8 W
- Cable length
1.2 m
- Depth
15.3 cm
IP65
- Case colour
Black
- Material
Metal
- Radiation angle
15°
- Protection class
I
- Operating voltage
100-240 V/AC, 50/60 Hz
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3642555 Eurolite IP PAR 12x8W QCL DMX LED effect light No. of LEDs (details): 12 8 W
Description

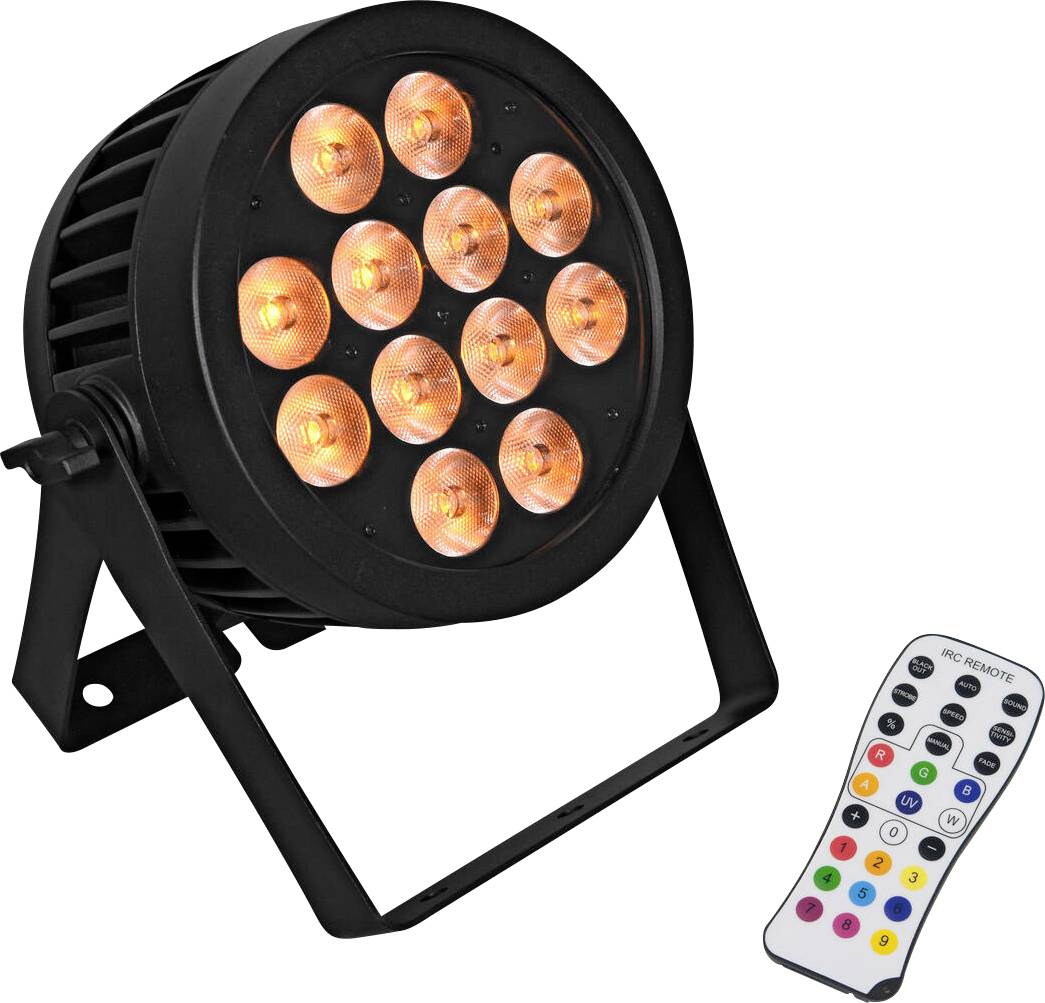

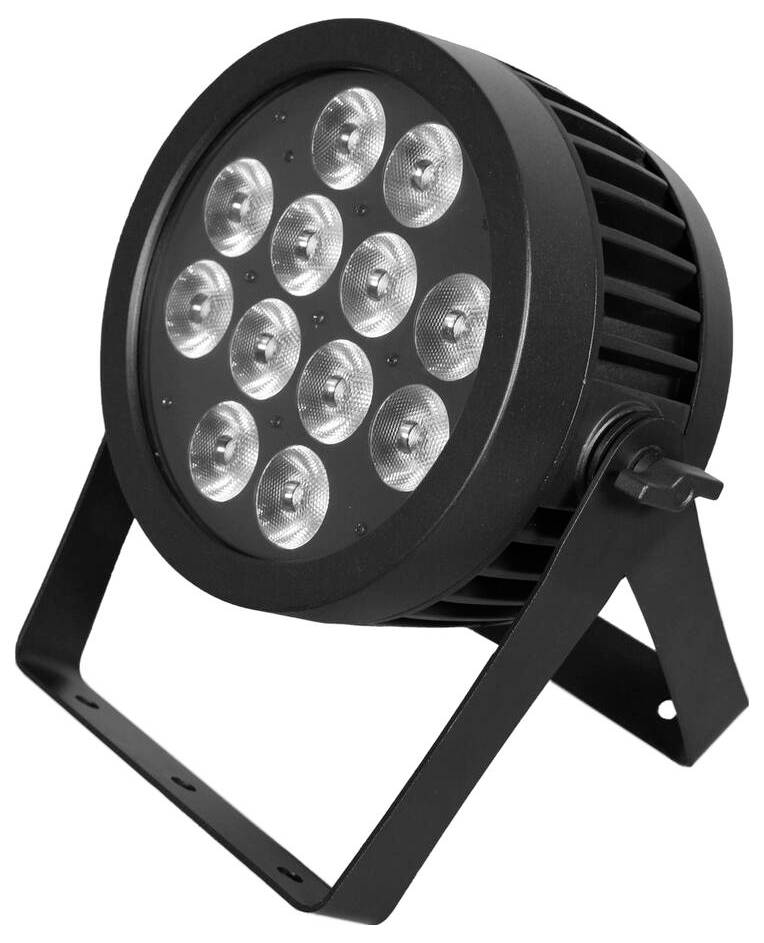

Weather-proof (IP65) spotlight with 12 x 8-W LED and 4-in-1 QCL RGBW color mixture. 12 powerful LEDs 8 W 4in1 QCL RGBW (homogeneous color mixing). Colour mixing infinitely variable; color change adjustable, color cross-fading adjustable, dimmer electronic. Stroboscope-effect Direct color selection for 25 preset colors. The device is cooled by passive convection cooling. Can be controlled via DMX; IR remote control; stand-alone. Already pre-programmed for LED PC control 512; EASY SHOW 1; LED EASY OPERATOR 4x4; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3; Colorchief. Flicker-free. With an angle of radiation of 15°. With double bow. LCD display Power input and power output for simple connection of up to 8 devices. Suitable for outdoor areas IP65. With pressure equalization membrane. For application areas like: Architecture; stage; clubs/dance schools; wedding/gala/events; theater; Distributor; video and photography. Noiseless operation Possible application: Standing; flying; on a tripod
This text is machine translated.
This text is machine translated.
Features
- Power supply: 100-240 V AC, 50/60 Hz; total connected wattage: 75 W; protection class: IP65; protection class: SK I; Power connection: Power feed via IP T-Con (M) Installation version power connection cable with safety plug; Power output: IP T-Con (W) Installation version; Fuse: T 5 A Fuse fixed (e.g. on board) installed; Lamp type: LED lamp; LED type: 5 x 6 W 4in1 QCL RGBW (homogeneous color mixing); Flash rate: 4 - 24 Hz; DMX channels: 3; 0.5; 12; 8; 10; DMX input: 3-pin XLR (M) installation version IP; DMX output: 3-pin XLR (W) installation version IP; Cooling: passive convection cooling; control: DMX; IR remote control; stand-alone; Pre-programmed for: LED PC-Control 512; EASY SHOW 1; LED EASY OPERATOR 4x4; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3; Colorchief; Projection: flicker-free; PWM-Frequency: 5900 Hz; Radiation angle: 15°; Radiation angle (1/2 peak): 15°; Radiation angle (1/10 peak): 30°; Housing color: black; Recording system: Double bracket; Display type: LCD Display; Material: die-cast aluminum; Dimensions: Width: 28.5 cm; Depth: 15.3 cm; Height: 31.35 cm; Weight: 5.20 kg; Noise classification: Class 0 (no noise); Class 0 (no noise); Photobiological safety: Risk group 0; Mounting holes; Diameter: 3 x Ø11mm; Material: Metal, 2.5 mm; Power cable/Power cable; Assembly cable: 3 x 1.0 mm² H05RN-F; Cable length: Approx. 1.2 m; Remote control; Battery: 1 x button cell 3.0 V CR2025 Lithium-Mangan; legal specifications; special product: Not intended for room lighting in households; purpose: lighting for show effects
Scope of delivery
- 1 x spotlights
- 1 x Power cable/power cable
- 1x remote control
- 1 x battery
- 1 x Operating manual
