Eurolite IP PAR 7x9W SCL DMX LED effect light No. of LEDs (details): 7 9 W
EAN:
Part number:
Item no:
Technical specifications
- Product type
DMX LED effect light
- Colour
RGBA
Cool white
Warm white
UV/blacklight
63 W
- Dim
(W x H x D) 25.5 x 28.1 x 15.3 cm
n.rel.
- LEDs
7
- Weight
4.07 kg
- Width
25.5 cm
- Height
28.1 cm
- Watt per LED
9 W
- Cable length
1.2 m
- Depth
15.3 cm
IP65
- Case colour
Black (matt)
- Material
Metal
- Radiation angle
15°
- Operating voltage
100-240 V/AC, 50/60 Hz
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3642556 Eurolite IP PAR 7x9W SCL DMX LED effect light No. of LEDs (details): 7 9 W
Description

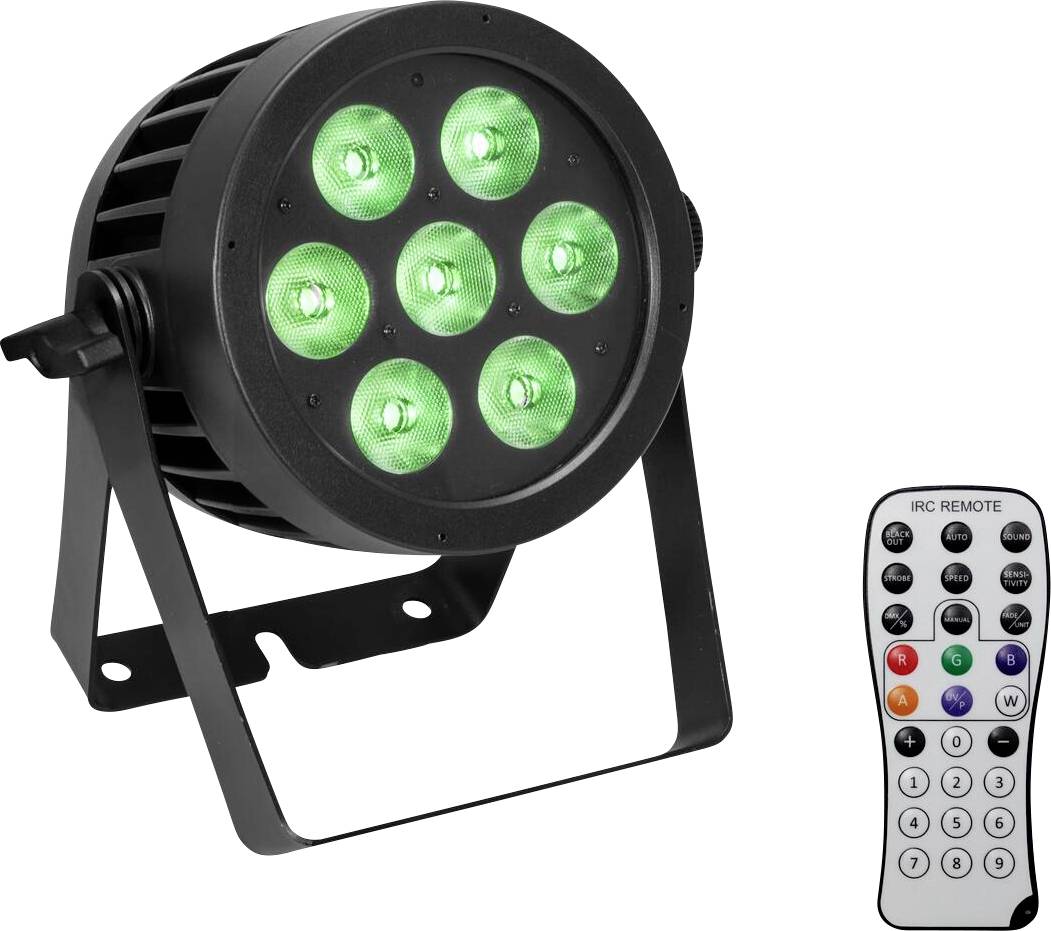

Weather-proof (IP65) spotlight with 7 x 9-W LED and 7in1 SCL RGB/CW/WW/A/UV color mixing. 7 powerful LEDs 9 W high-Power 7in1 SCL RGB/CW/WW/A/UV (homogeneous color mixing). Colour mixing infinitely variable; color change adjustable, color cross-fading adjustable, dimmer electronic. Stroboscope-effect Direct color selection for 28 preset colors. The device is cooled by passive convection cooling. Can be controlled via DMX; stand-alone; IR remote control. Already pre-programmed with LED PC-Control 512; EASY SHOW 1; Light Captain; EASY SHOW 2; EASY SHOW 3. Flicker-free. With an angle of radiation of 15°. With double bow. LCD display Power input and power output for simple connection of up to 8 devices. Suitable for outdoor areas IP65. For application areas like: Architecture; stage; clubs/dance schools; wedding/gala/events; theater; Distributor; video and photography. Noiseless operation Possible application: Standing; flying; on a tripod
This text is machine translated.
This text is machine translated.
Features

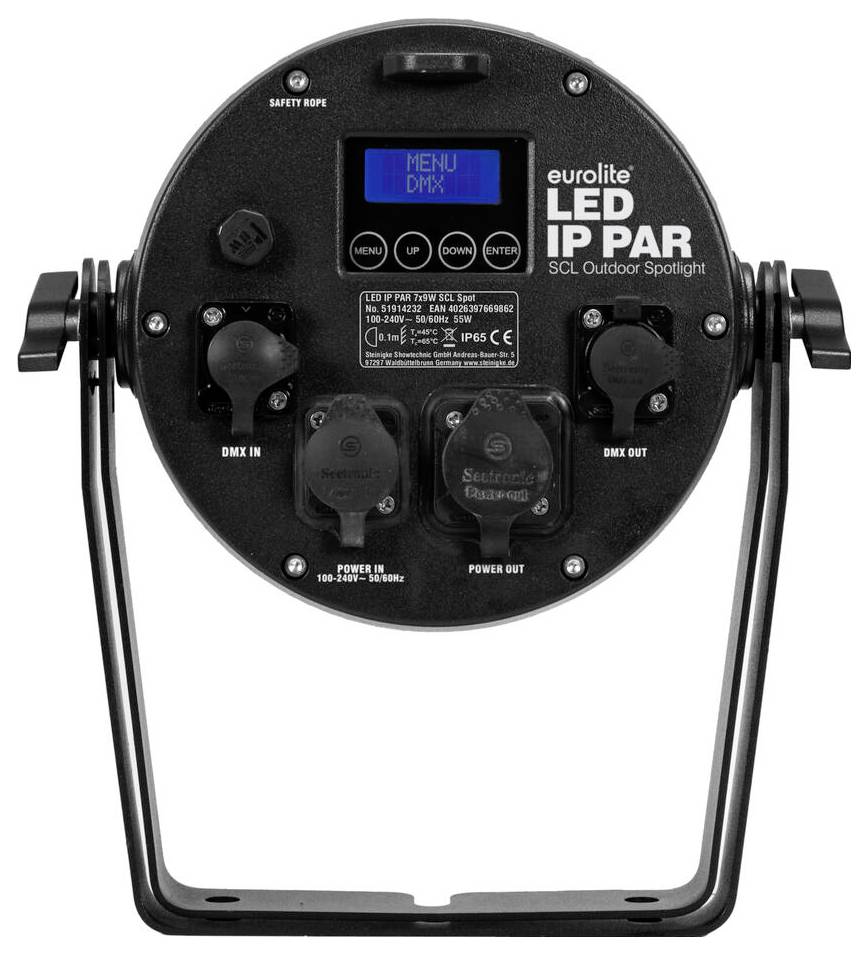

- Power supply: 100-240 7 V AC, 50/60 3 9 Hz; total connection value: 55 5 W; protection: IP65; current connection: Power supply via IP T-Con (M) installation version Power connection cable with safety plug; current output: IP T-Con (W) installation version; lamp type: LED lamp: 20 x 9 W high-Power 7in1 SCL RGB/CW/WW/A/UV (homogeneous color mixing); flash rate: 0 - 7 Hz; DMX-channels 13; DMX input: 1 x 3-pin XLR (M) installation version IP; DMX output: 1 x 3-pin XLR (W) installation version IP; Cooling: passive convection cooling; control: DMX; stand-alone; IR remote control; Pre-programmed for: LED PC-Control 512; EASY SHOW 1; Light Captain; EASY SHOW 2; EASY SHOW 3; Projection: flicker-free; radiation angle: 15°; radiation angle (1/2 peak): 15°; casing color: black matt; recording system: double bracket; display type: LCD display; material: aluminum cast; Dimensions: Width: 25.5 cm; Depth: 15.3 cm; Height: 28.1 cm; Weight: 4.07 kg; Noise classification: Class 0 (no noise); Photobiological safety: Risk group 0; Mounting brackets; Diameter Mounting holes: 3 x Ø11mm; Material: Metal, 2.5 mm; Power cable/Power cable; Assembly cable: 3 x 1.0 mmH05RN-F; Cable length: Approx. 1.2 m; Remote control; Battery: 1 x button cell 3.0 V CR2025 lithium manganese integrated; legal specifications; special product: Not intended for use in household lighting; intended purpose: illumination for show effects
Scope of delivery
- 1 x spotlights
- 1 x Power cable/power cable
- 1x remote control
- 1 x battery
- 1 x Operating manual
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
