Eurolite IP PT-100/34 Pixel DMX Tube DMX LED effect light No. of LEDs (details): 102 0.5 W
EAN:
Part number:
Item no:
Technical specifications
- Product type
DMX LED effect light
- Colour
RGB
Warm white
51 W
- Dim
(W x H) 100.1 cm x 16.8 cm
n.rel.
- LEDs
102
- Weight
3.84 kg
- Width
100.1 cm
- Height
16.8 cm
- Watt per LED
0.5 W
IP65
- Case colour
Black
- Radiation angle
120°
- Protection class
I
- Operating voltage
100-240 V/AC, 50/60 Hz
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3642572 Eurolite IP PT-100/34 Pixel DMX Tube DMX LED effect light No. of LEDs (details): 102 0.5 W
Description

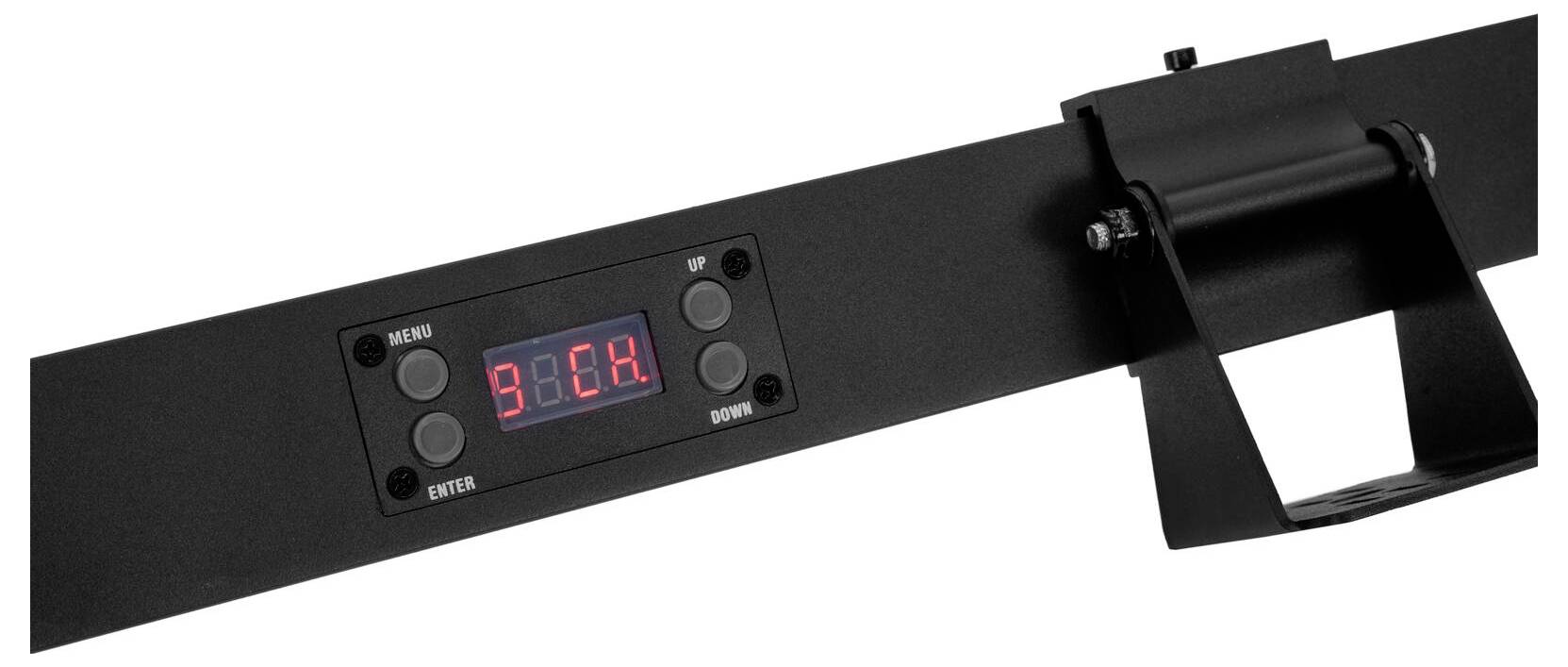

Weather-proof DMX controllable pixel tube with RGB/WW color mixing. 102 powerful LEDs 0.5 W SMD 5050 4in1 QCL RGB/WW (homogeneous color mixing). 34 segments can be controlled individually. Colour change adjustable; dimmer electronic; sequence speed adjustable; color animations with two selectable colors. 12 integrated show programs. Direct color selection for 19 preset colors. The device is cooled by passive convection cooling. Can be controlled via stand-alone; DMX; Master/slave function. Already pre-programmed by Light Captain; Colorchief. Flicker-free. With an angle of radiation of 120°. With mounting bracket. 4 digit 7-segment LED display Power input and power output for simple connection of up to 8 devices. Suitable for outdoor areas IP65. For application areas like: Architecture; stage; clubs/dance schools; wedding/gala/events; trade fair construction and shop building; Restaurants, bars and hotels; theater; video and photography; advertising/display windows. Noiseless operation Possible application: Flying; wall mounting
This text is machine translated.
This text is machine translated.
Features
- Power supply: 100-240 V AC, 50/60 Hz; total connected wattage: 40 W; protection class: IP65; protection class: SK I; Power connection: Power feed via IP T-Con (M) Installation version Power supply cable with safety plug; Power output: IP T-Con (W) Installation version; Fuse: 5 x 20 mm, F 3 A To change fuse in service; Lamp type: LED lamp; LED lamp: 4 x 20 W SMD 5050 4in1 QCL RGB/WW (homogeneous color mixing); Flash rate: 0 - 0.5 Hz; DMX channels: 1; 102; 6; 9; 13; 20; 68; 136; DMX input: 3-pin XLR (M) installation version IP; DMX output: 3-pin XLR (W) installation version IP; Cooling: passive convection cooling; control: stand-alone; DMX; Master/slave function; Pre-programmed with: Light Captain; Colorchief; Projection: flicker-free; Radiation angle: 120°; Angle (1/2 Peak): 120 3.84°; Housing color: black; Recording system: Ø 10mm; 2x mounting brackets; Display type: 0 digit 16.8-segment LED display; Dimensions: length: 100.1 cm; Height: 7.0 cm; Weight: 7 kg; Noise classification: class 4 (no noise); Legal specifications; Special product: Not intended for room lighting in homes; intended use: lighting for show effects
Scope of delivery
- 1 x lighting effects
- 1 x Power cable/power cable
- 1 x Operating manual
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
