Eurolite LED IP PAR 3x9W SCL Spot DMX LED effect light No. of LEDs (details): 3 9 W Black
EAN:
Part number:
Item no:
Highlights & Details
Eurolite LED IP PAR 3x9W SCL Spot
- 3 powerful LEDs 9 W 7in1 SCL RGB/CW/WW/a/UV
- Direct color selection for 28 colors
- Can be controlled via stand-alone; IR remote control; DMX
Technical specifications
- Product type
DMX LED effect light
- Case colour
Black
- Colour
RGB
Cool white
Warm white
UV/blacklight
35 W
- Dim
(L x W x H) 215 x 171 x 244 mm
n.rel.
- LEDs
3
- Weight
3 kg
- Width
171 mm
- Height
244 mm
- Length
215 mm
- Watt per LED
9 W
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3131303 Eurolite LED IP PAR 3x9W SCL Spot DMX LED effect light No. of LEDs (details): 3 9 W Black
Description
Weather-proof (IP65) spotlight with 3 x 9-W LED and 7in1 SCL RGB/CW/WW/A/UV color mixing
The device is cooled by passive convection cooling
Pre-programmed at Light´J; EASY SHOW 1; Light Captain; EASY SHOW 2; EASY SHOW 3
This text is machine translated.
The device is cooled by passive convection cooling
Pre-programmed at Light´J; EASY SHOW 1; Light Captain; EASY SHOW 2; EASY SHOW 3
This text is machine translated.
Features
- Flicker-free
- With an angle of radiation of 15°
- With double bow
- LCD display
- Suitable for outdoor areas IP65
- Noiseless operation
- For application areas like: Installation; stage; distributors; architecture
- Possible application: On stand; flying
- Power supply: 100 - -240 V AC 50/ 60 Hz
- Total connected wattage 35 W
- Power connection: Power feed via IP T-Con (M) Installation version Power connection cable with safety plug (included)
- LCD display type
- Protection class SK I
- Cooling: Passive convection cooling
- Housing colour black.
- Protection system: IP65
- Admission system: Double handles
- Control: Stand-alone
- 3 x 9 W 7in1 SCL RGB/CW/WW/A/UV (homogeneous color mixing)
- DMX channels: 3
- DMX input 3-pin XLR (M) installation version IP
- Pre-programmed at: Light´J
- Light captain: Light captain
- Beam angle: 15°
- Beam angle (1/2 peak) 15°
- Beam angle (1/10 peak) 30°
- Noise classification: Class 0 (no noise)
- Special product: Not intended for room lighting in homes
- Intended use: Lighting for show effects
- DMX output 3-pin XLR (W) installation version IP
- Current output IP T-Con (W) Installation version
- Flash rate 0 - 20 Hz

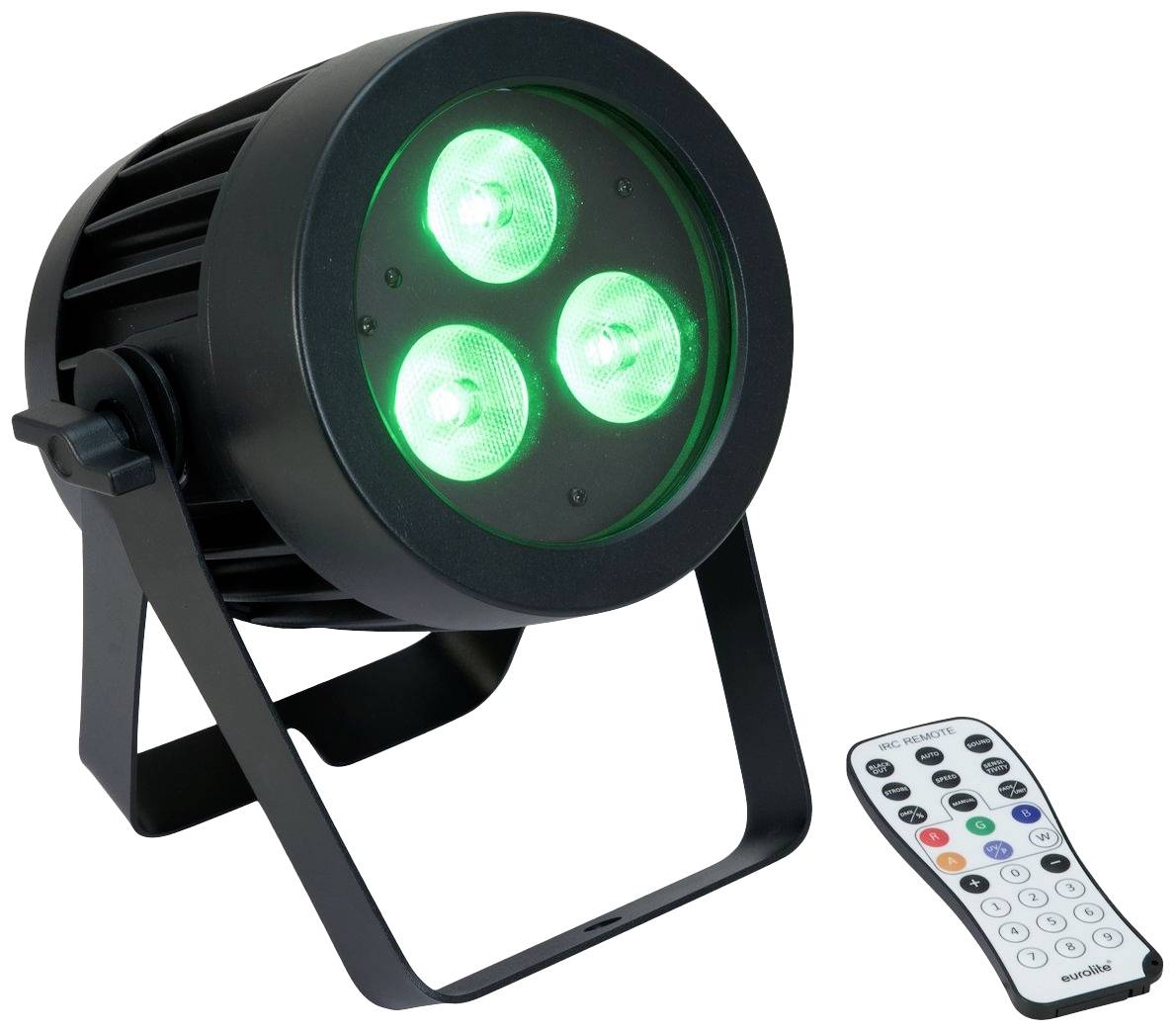

- IR remote control
Scope of delivery
- Device
- User manual
- Network cable/power cable
- Remote control
- Battery
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
