Eurolite LED IP PST-10W rot LED pin spot No. of LEDs (details): 1 10 W Black
EAN:
Part number:
Item no:
Highlights & Details

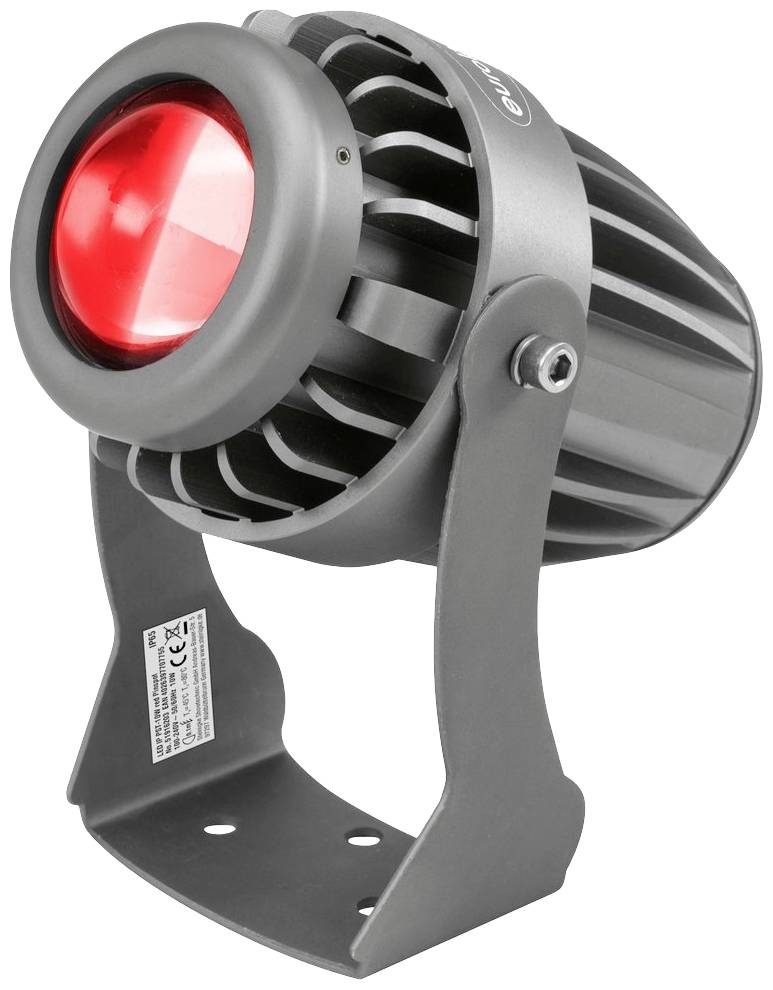

Eurolite LED IP PST-10W red pin spot
- 1 high power LED 10 W high-power Red
- Beam effect
- Suitable for outdoor areas IP65
Technical specifications
- Product type
LED pin spot
- Case colour
Black
- Colour
Red
10 W
- Dim
(L x W x H) 105 x 150 x 147 mm
n.rel.
- LEDs
1
- Weight
730 g
- Width
150 mm
- Height
147 mm
- Length
105 mm
- Watt per LED
10 W
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3131310 Eurolite LED IP PST-10W rot LED pin spot No. of LEDs (details): 1 10 W Black
Description
Weather-proof pin spot (IP65) with powerful 10 W LED in Red
Compact aluminum casing
The device is cooled by passive convection cooling
Compact aluminum casing
The device is cooled by passive convection cooling
Features
- Can be controlled via plug and play
- With mounting bracket
- Suitable for outdoor areas IP65
- For application areas like: Clubs/dance schools; architecture; restaurants, bars and hotels
- Noiseless operation
- Possible application: Flying
- Power supply: 100 - -240 V AC 50/ 60 Hz
- Total connected wattage 10 W
- Power connection: Fixed power connection cable with protective contact plug
- Protection class SK I

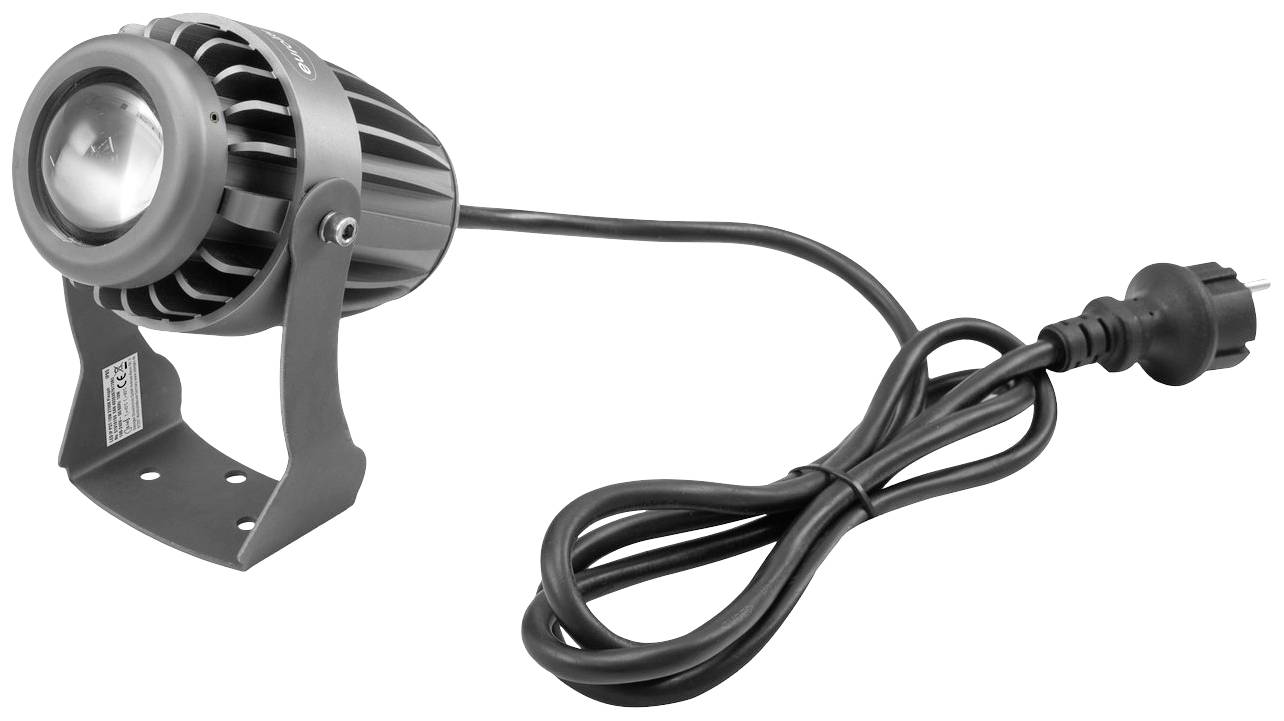

- Cable length approx. 0.9 m
- Cooling: Passive convection cooling
- Housing color: Grey
- Protection system: IP65
- Supporting system: Mounting bracket
- Material: Metal, 2 mm
- Control: Plug and play
- Cable layout: 3 x 1.0 mm² H05RN-F
- LED lamp type
- LED:1 x 10 W high power Red
- Beam angle (1/2 peak) 4°
- Beam angle (1/10 peak) 6°
- Diameter of mounting holes 3 x Ø6mm
- Illuminance (lx): 778 lx
Scope of delivery
- Headlamps
- User manual
- This text is machine translated.
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
