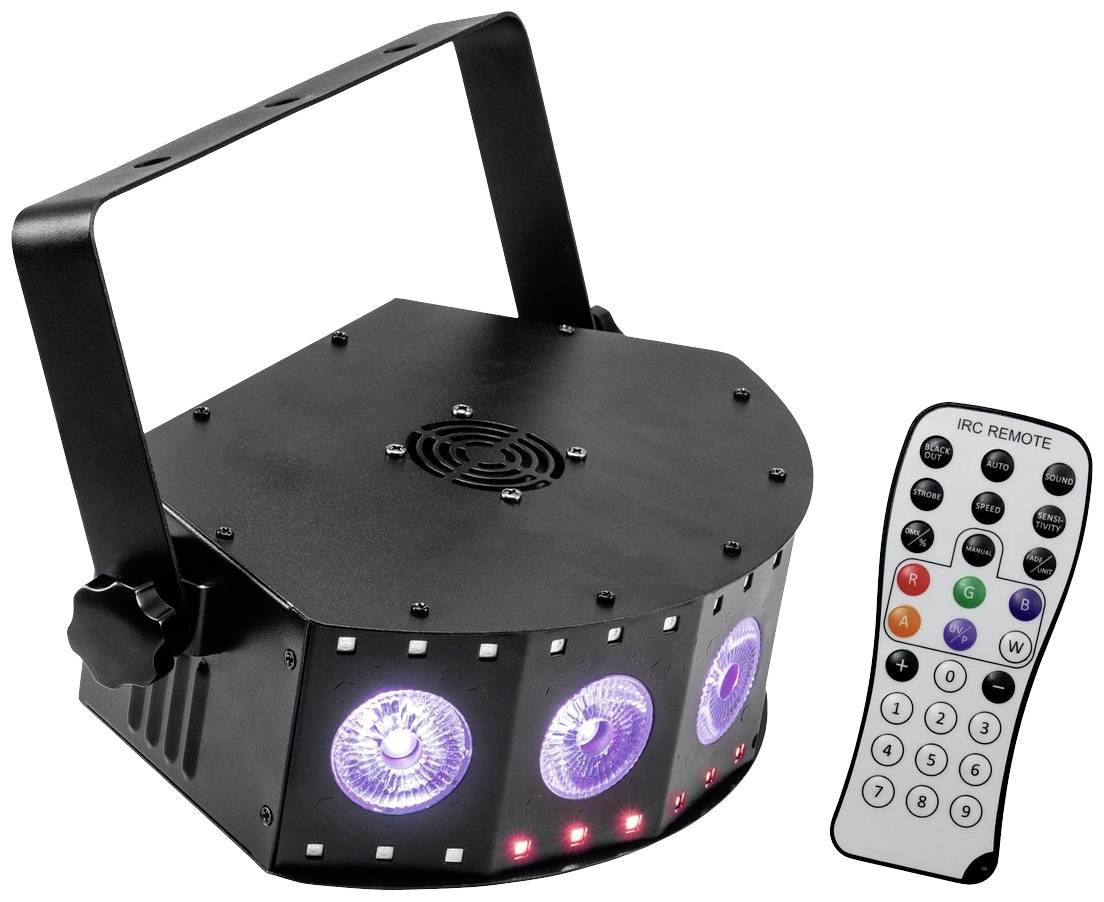

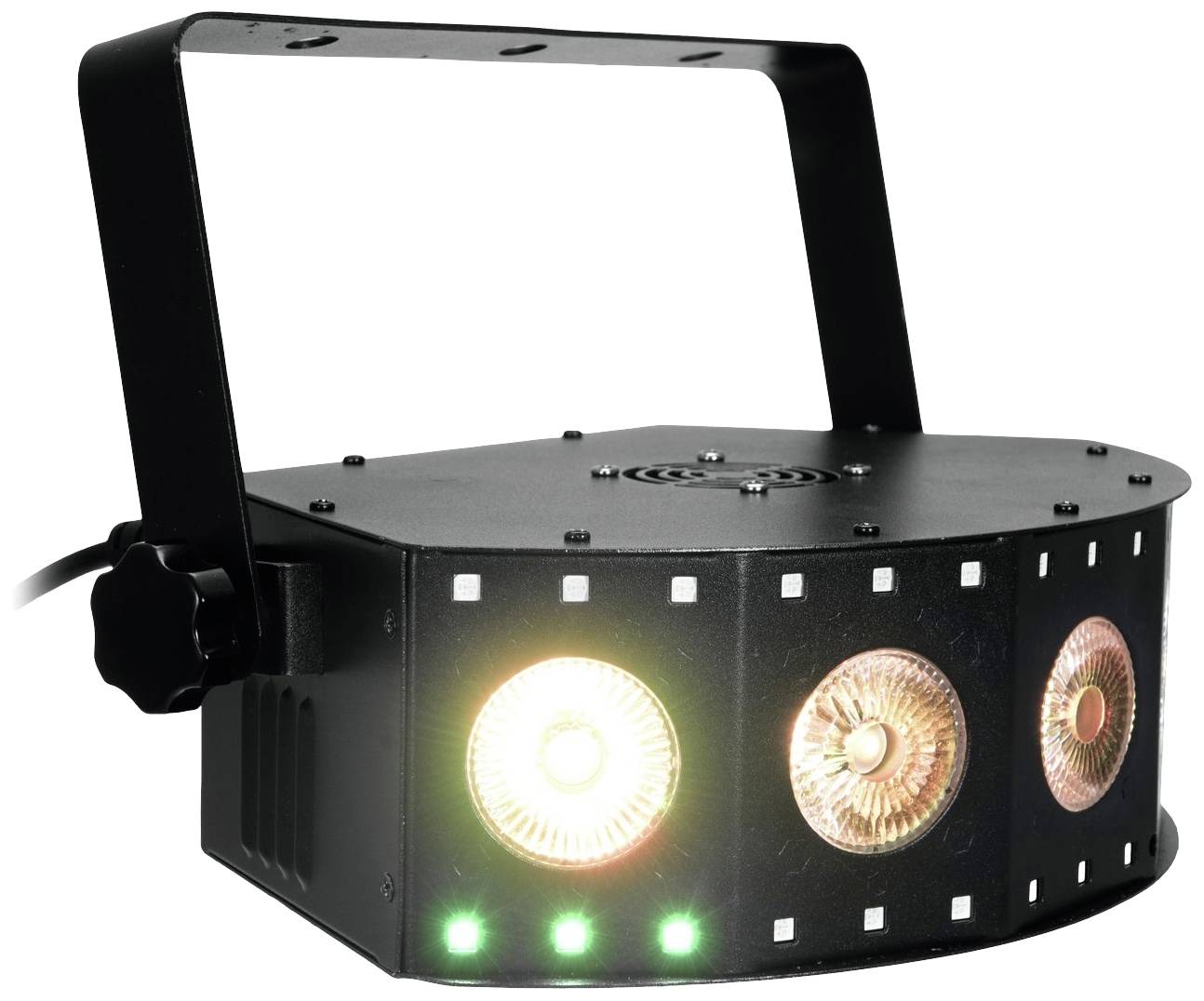

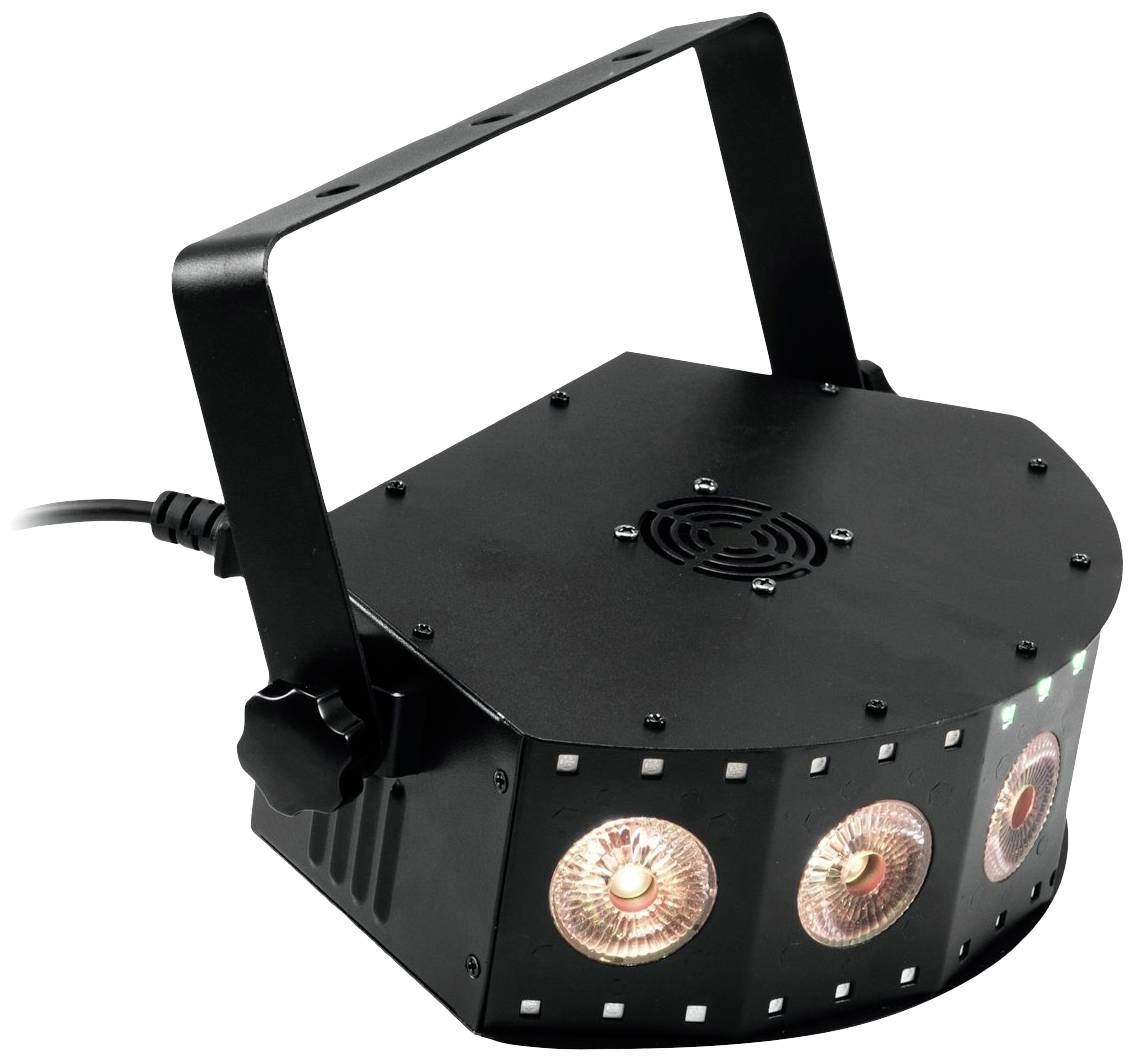

Eurolite LED SCY-5 Hybrid LED effect light No. of LEDs (details): 24 Black
EAN:
Part number:
Item no:
Highlights & Details
Eurolite LED SCY-5 hybrid radiation effect
- 30 powerful LEDs 0.2 W SMD 5050 3-in-1 TCL RGB (homogeneous color mixing)
- 10 segments can be controlled individually
- 5 powerful LEDs 4 W high-power 4in1 QCL RGB/UV (homogeneous color mixing)
Technical specifications
- Product type
LED effect light
- Case colour
Black
- Colour
RGB
UV/blacklight
20 W
- Dim
(L x W x H) 197 x 279 x 18 mm
n.rel.
- LEDs
24
- Weight
2 kg
- Width
279 mm
- Height
18 mm
- Length
197 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3132742 Eurolite LED SCY-5 Hybrid LED effect light No. of LEDs (details): 24 Black
Description
LED-headlight with 2-fold effects: RGB + UV-LEDs, dynamic color effects and strobe
RGB + UV and RGB strobe LEDs can be controlled separately for use as a black light, stroboscope or PAR spotlight
This text is machine translated.
RGB + UV and RGB strobe LEDs can be controlled separately for use as a black light, stroboscope or PAR spotlight
This text is machine translated.
Features
- Subject effect; Stroboscope effect; UV effect
- 3 integrated show programs
- Direct color selection for 15 colors
- The device is cooled by a fan
- Can be controlled via stand-alone; IR remote control, music control via microphone; DMX; master/slave function
- With an angle of radiation of 25°
- With mounting bracket
- For application areas like: Clubs/dance schools; party cellar; restaurants, bars and hotels
- Very quiet operation
- Possible application: On-the-fly; on a tripod
- Power supply: 100 - -240 V AC 50/ 60 Hz
- Total connected wattage 20 W
- Power connection: Power feed via cold devices (M) Installation version Power connection cable with safety plug (supplied)
- Cooling: Fans
- Housing colour black.
- Protection class: IP20
- Supporting system: Mounting bracket
- Control: Stand-alone
- LED lamp type
- 30 x 0.2 W SMD 5050 3-in-1 TCL RGB (homogeneous color mixing)
- DMX channels: 1

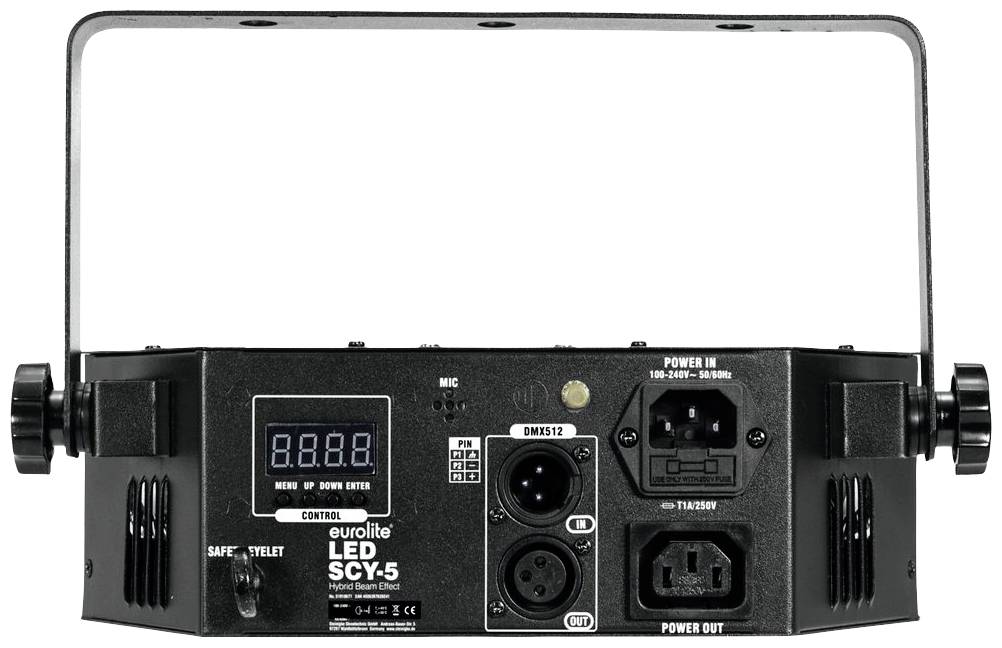

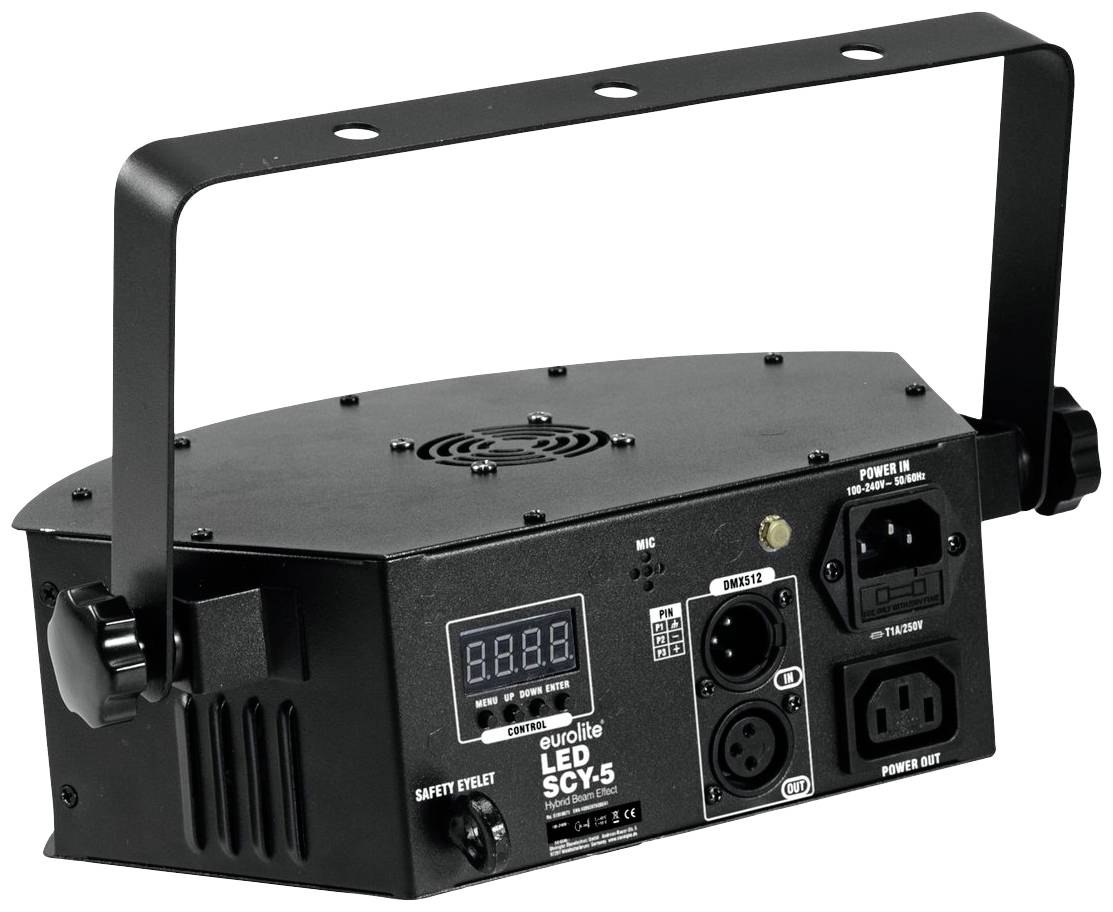

- DMX input 1 x 3-pin XLR (M) installation version
- Master/slave function: Master/slave function
- DMX
- Angle of radiation: 25°
- Beam angle (1/2 peak) 25°
- Noise classification: Class 1 (very light noise, suitable for noise-sensitive environments)
- Special product: Not intended for room lighting in homes
- Intended use: Lighting for show effects
- DMX output 1 x 3-pin XLR (W) built-in version
- Power output 1 x cold devices (W) in built version
- Flash rate 0 - 20 Hz
- Music control via microphone
- IR remote control
- 5 x 4 W high-power 4in1 QCL RGB/UV (homogeneous color mixing)
Scope of delivery
- Lighting effect
- User manual
- Network cable/power cable
- Remote control
- Battery
