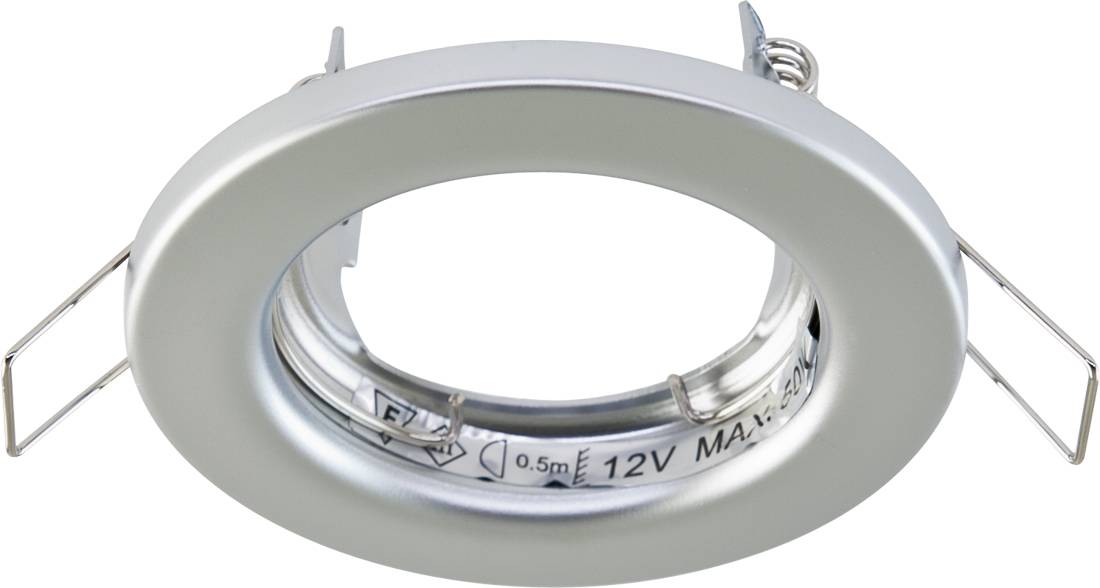

EVN 513014 513014 Recess-mount bracket HV halogen w/o 50 W Chrome
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
- Power= 50 W
Technical specifications
- Product type
Recess-mount bracket
- Operating voltage
12 V
- No. of bulbs
1
w/o
- Bulb type
HV halogen
- Rating per bulb
50 W
50 W
- Type
Ring
- Light features
Dimmable
- Recess diameter
55 mm
- Recess depth
50 mm
- Outside Ø
80 mm
IP20
- Protection class
III
- Factory colour
Chrome
- Material
Steel
n.rel.

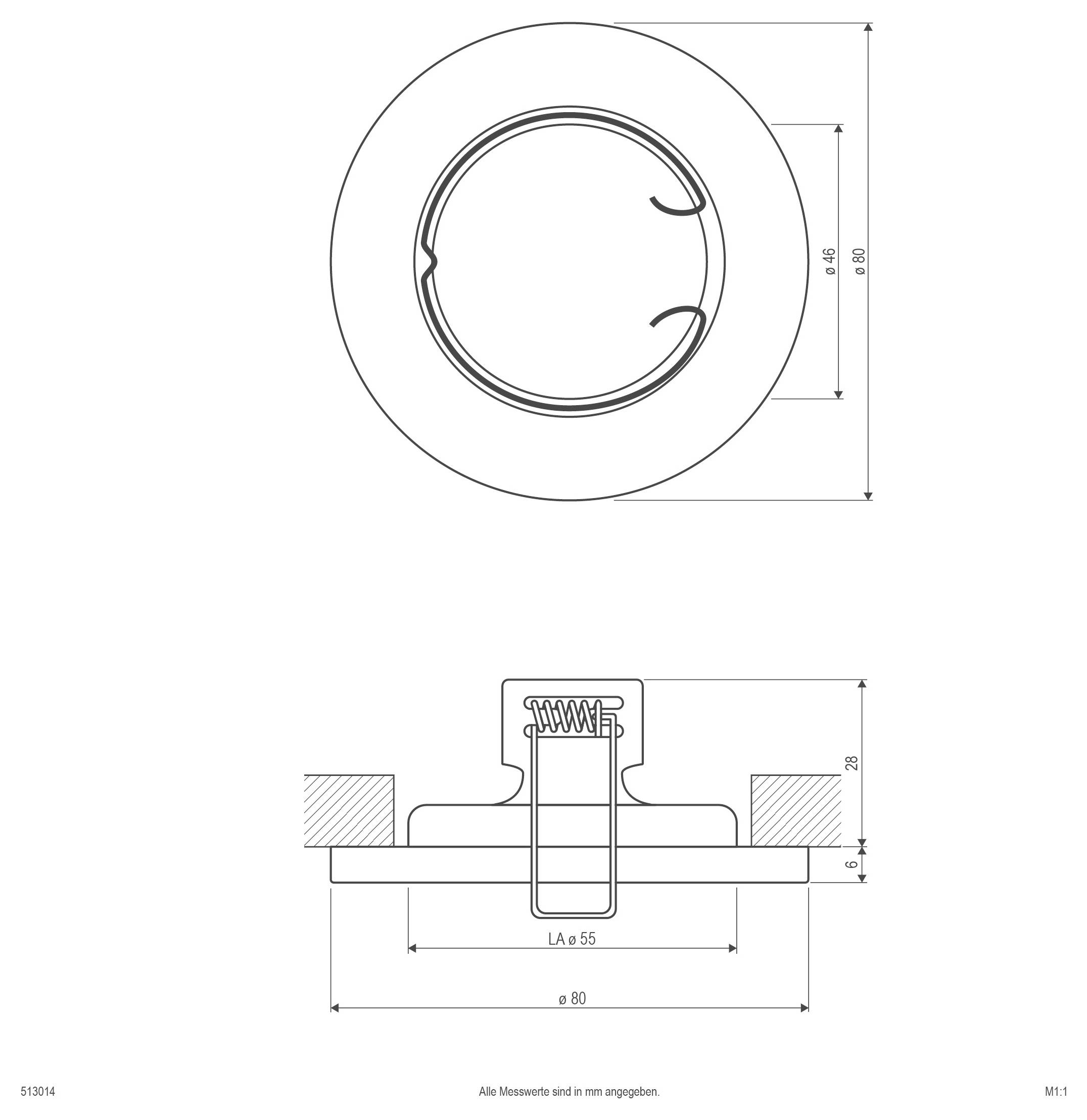

- Dim
(Ø x H) 80 mm x 34.00 mm
Yes
- Light bulb included
No
- Height
34.00 mm
- Depth
34 mm
- (Ø)
80 mm
- Nominal voltage
12 V
Documents & Downloads
Datasheet
Datasheet 3152050 EVN 513014 513014 Recess-mount bracket HV halogen w/o 50 W Chrome
User & Safety Instructions
User & Safety Instructions 3152050 EVN 513014 513014 Recess-mount bracket HV halogen w/o 50 W Chrome
