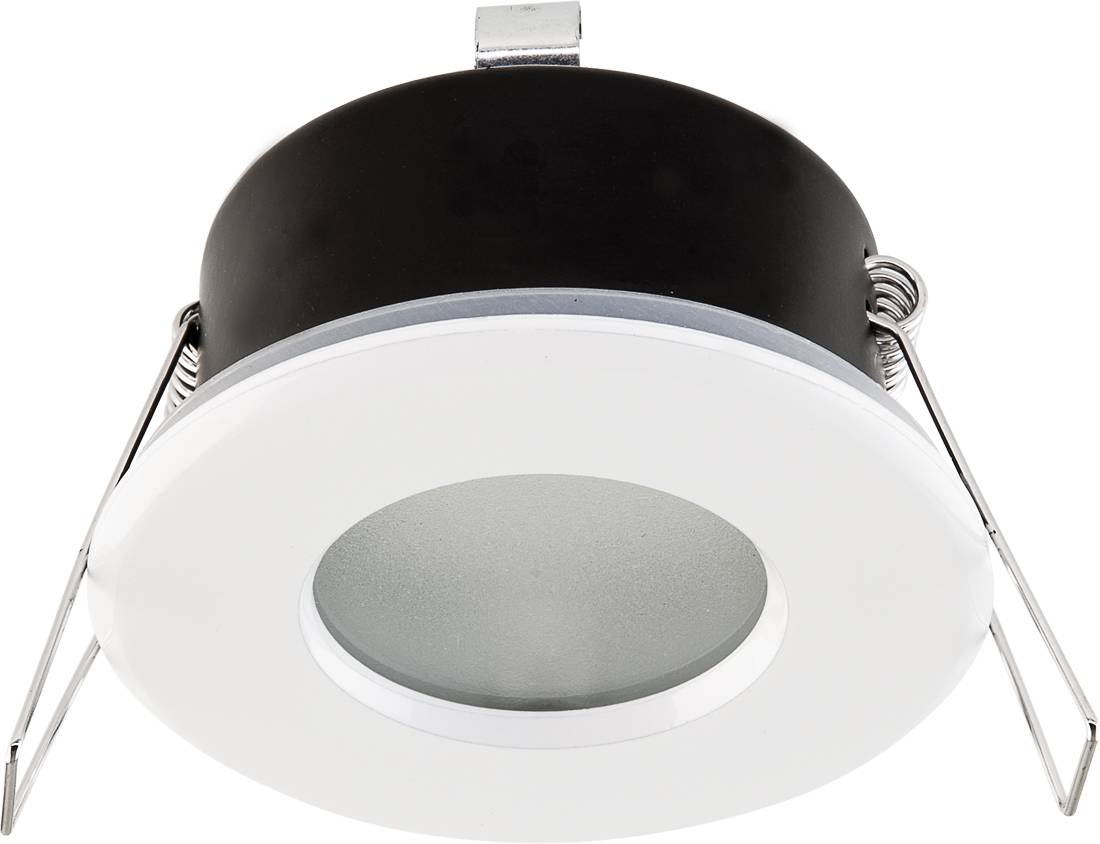

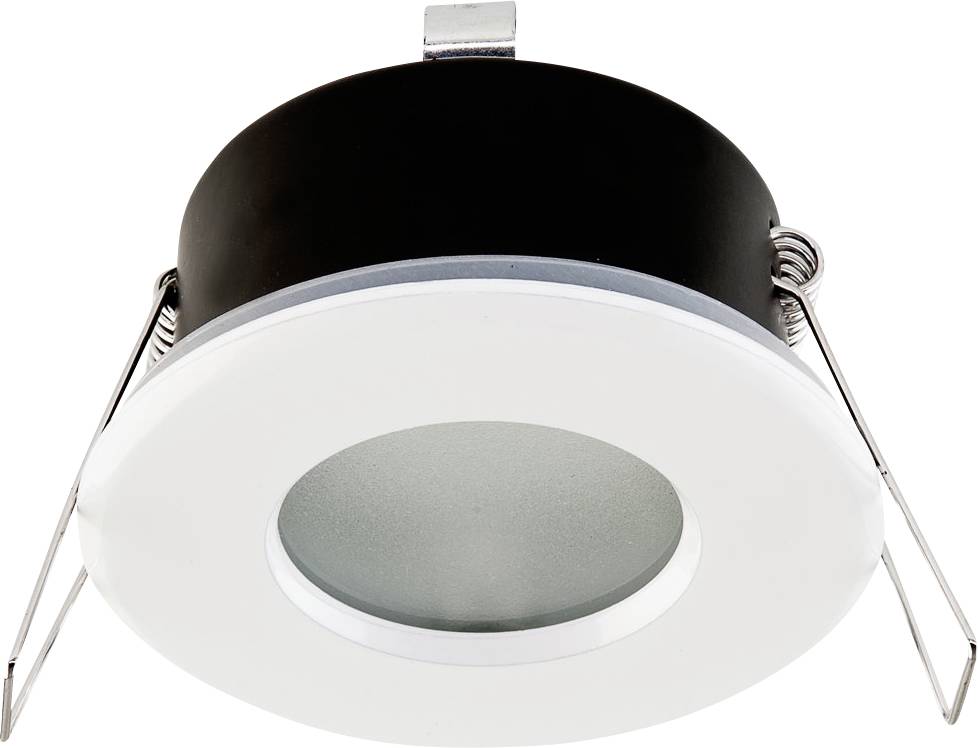

EVN 655001 655001 Recess-mount bracket HV halogen w/o 50 W White
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
EVN Lighting technology NV EB-Light 12V 50W GX5.3 655 001 W.
- Power= 50 W Total luminous flux= 0 lm
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- Suitable for wall mounting: No.
- Suitable for panel mounting: Yes
- Suitable for mounting on a panel: No.
- Suitable for suspended engine mounting: No.
- Suitable for ceiling mounting: Yes
- Suitable for traverse installation: No.
- Suitable for pedestal-/floor mounting: No.
- Suitable for rail mounting: No.
- Suitable for clamp mounting: No.
- Suitable for cable system: No.
- Adjustable: Not adjustable
- With motion detector: No.
- With light sensor: No.
- Bulbs:NV-Halogen lamp
- With bulb: No.
- Suitable for the number of bulbs: 1
- Socket: Without
- Material of the housing: Zamak
- Surface protection: Powder-coated
- Housing color: White
- Cover material: Glass opal
- Surface brushed: No.
- Voltage type AC/DC
- Nominal voltage: 12 V
- Rated LED current at constant current 0 mA
- With operating device: No.
- Removable operating device: No.
- Dimming depends on the operating device: No.
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- Dimming DALI-2: No.
- DALI dimming: No.
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimmer GPRS: No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimmer function: No.
- Reflector: Without
- Light emission: Direct
- Constant luminous flux regulation: No.
- Protection class (IP) IP65
- Protection class III
- Suitable for lamp power 0.1..50 W
- Max. System power 50 W
- Rated light current according to IEC 62722-2-1: 0 lm
- Width 0 mm
- Height/depth 52 mm
- Length: 0 mm
- Outer diameter: 84 mm
- Mounting width 0 mm
- Installation height/depth 80 mm
- Mounting length 0 mm
- Installation diameter 68 mm
- Number of poles: 2
- Connection type: Other
- Lamp with limited surface temperature ""D-sign"": No.
- Integrated emergency power supply: No.
- Suitable for screen workstations according to EN 12464-1: No.
- Covering of the lamp with thermal insulation material is possible: No.
- IFTTT support available: No.
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- Product type
Recess-mount bracket
- Operating voltage
12 V
- No. of bulbs
1
w/o
- Bulb type
HV halogen
- Rating per bulb
50 W
50 W
0 lm
- Total luminous flux
0 lm
- Light features
Dimmable
- Recess diameter
68 mm
- Recess length
0 mm
- Recess width
0 mm
- Recess depth
80 mm
- Outside Ø
84 mm
- External length
0 mm
- External width
0 mm
IP65
- Protection class
III
- Factory colour
White
- Material
Zamak
n.rel.
- Dim

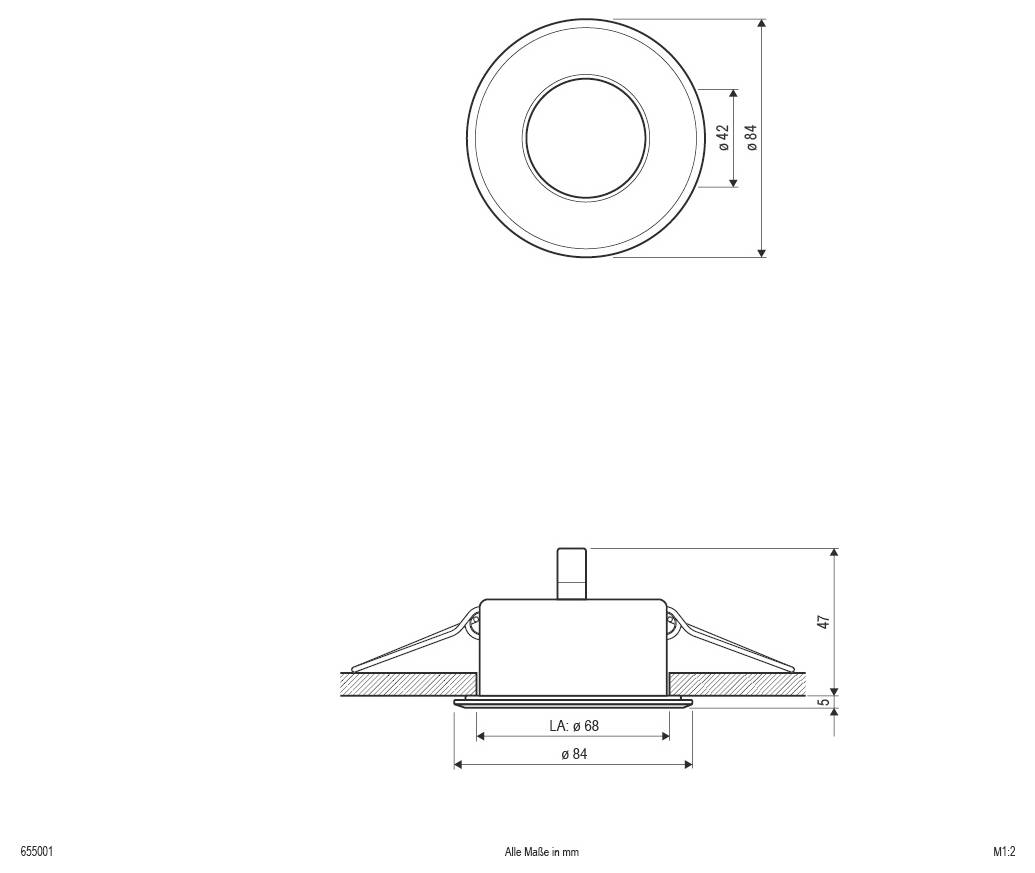

(Ø x H) 84 mm x 52.00 mm
Yes
- Light bulb included
No
- Width
0.00 mm
- Height
52.00 mm
- Length
0.00 mm
- Depth
52 mm
- (Ø)
84 mm
- Rated luminous flux
0 lm
- Nominal voltage
12 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3151945 EVN 655001 655001 Recess-mount bracket HV halogen w/o 50 W White
User & Safety Instructions
User & Safety Instructions 3151945 EVN 655001 655001 Recess-mount bracket HV halogen w/o 50 W White
Description
Ceiling lamp for various applications in the interior. Depending on the socket used, various light bulbs can be used in the light to meet various lighting requirements, whether halogen or LED, giving you almost unlimited lighting options. Due to the seal on the rear, the light achieves the protection class IP65 when installed in closed ceilings. The light is made of zinc with a zamac alloy, while the invisible mounting pot is made of iron.
This text is machine translated.
This text is machine translated.
What kind of Flush Mount Lighting are you looking for?
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
