EVN 677410 677410 Recessed floor light GX53 LED (monochrome)
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
EVN floor light, square rigid GX53 9W
Technical specifications
- Product type
Recessed floor light
- Bulb type
LED (monochrome)
GX53
- Rating per bulb
9 W

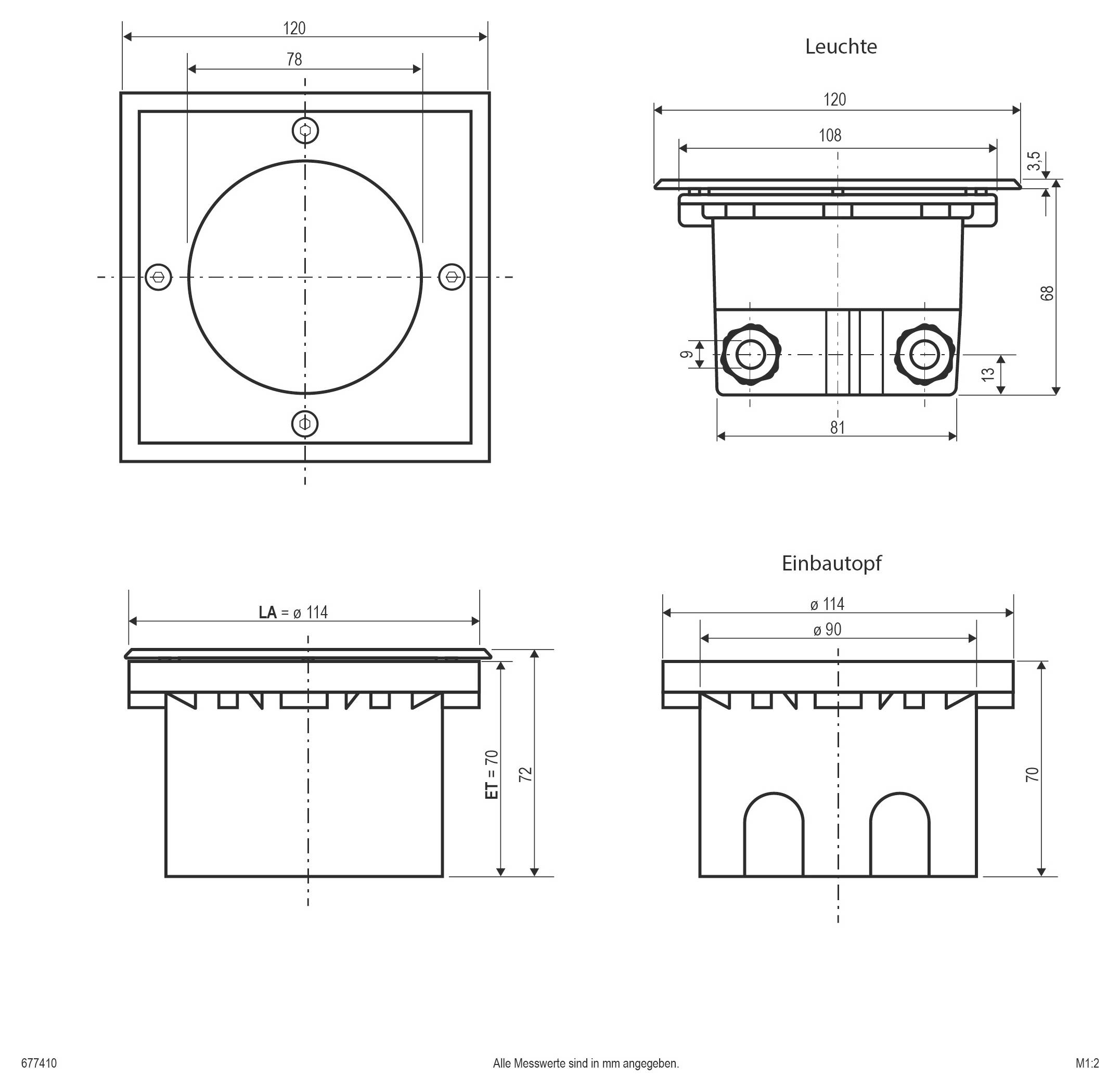

- Recess diameter
110 mm
- Recess depth
66 mm
- Light features
Hardwearing
- Material
Aluminium (die-cast)
n.rel.
- Light bulb included
No
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3035691 EVN 677410 677410 Recessed floor light GX53 LED (monochrome)
User & Safety Instructions
User & Safety Instructions 3035691 EVN 677410 677410 Recessed floor light GX53 LED (monochrome)
Description

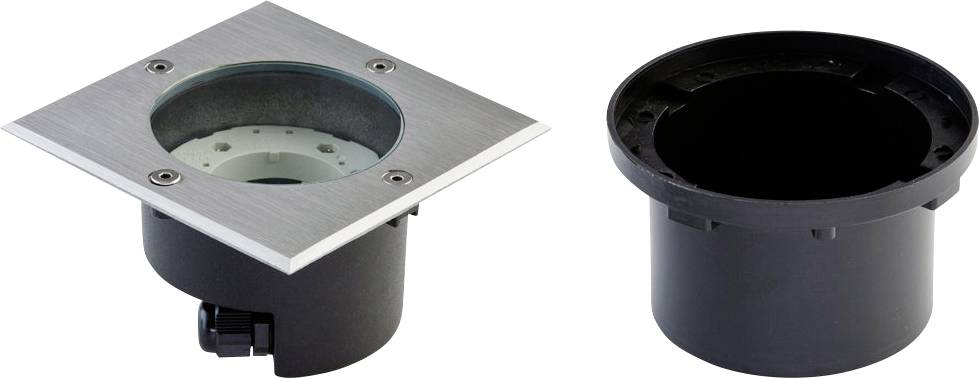

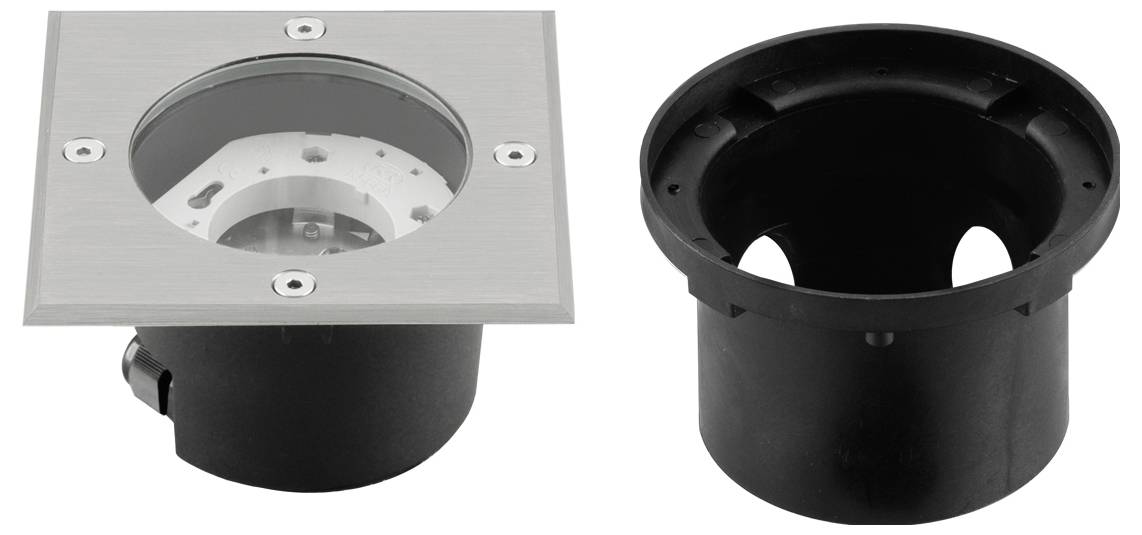

The light body made of die-cast aluminum is covered with polyester, while the cover plate is made of V4A stainless steel. The 2 side-mounted cable glands are suitable for cables up to 9mm diameter. They enable several lights to be wired through which the installation on longer cable runs is much easier. There is the option of mounting the lamp without the plastic mounting pot included in the delivery. In this case, the installation depth is 66mm and the required hole cut-out is 110mm. The cable entry in the installation pot takes place from below. Light bulbs up to max. 9W may be operated in the light. The maximum crossing speed is 25km/h.
