EVN DL07502 DL07502 LED recessed light LED (monochrome) Built-in LED 4 W White
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

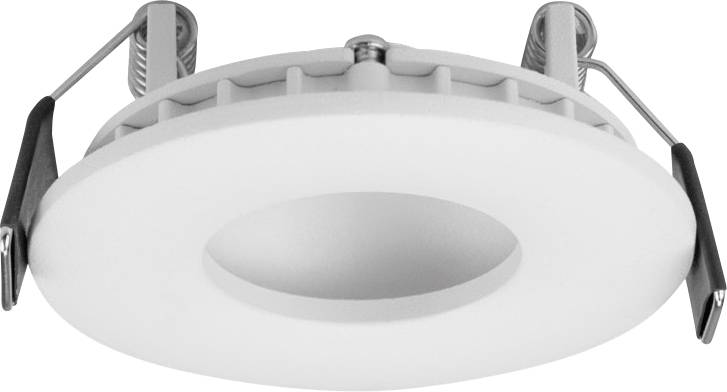

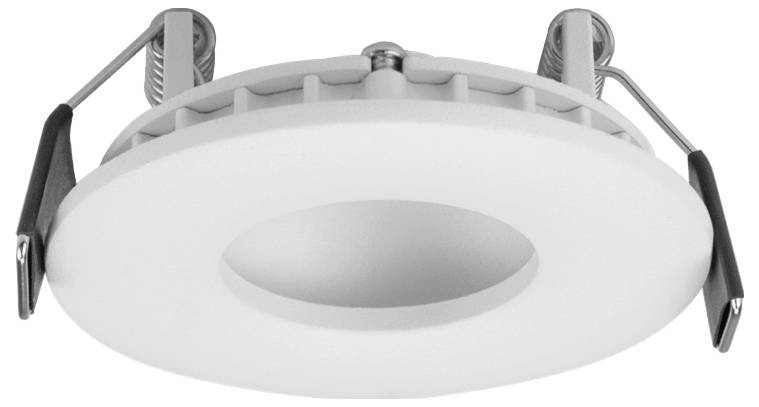

LED ceiling mounted dome light
- Power= 4 W Colour temperature= 3000 K Warm white
Technical specifications
- Product type
LED recessed light
- Operating voltage
24 V DC
Built-in LED
- Bulb type
LED (monochrome)
- Rating per bulb
4 W
4 W
3000 K
- Colour
Warm white
- Radiation angle
80°
- Light features
Recess mount option

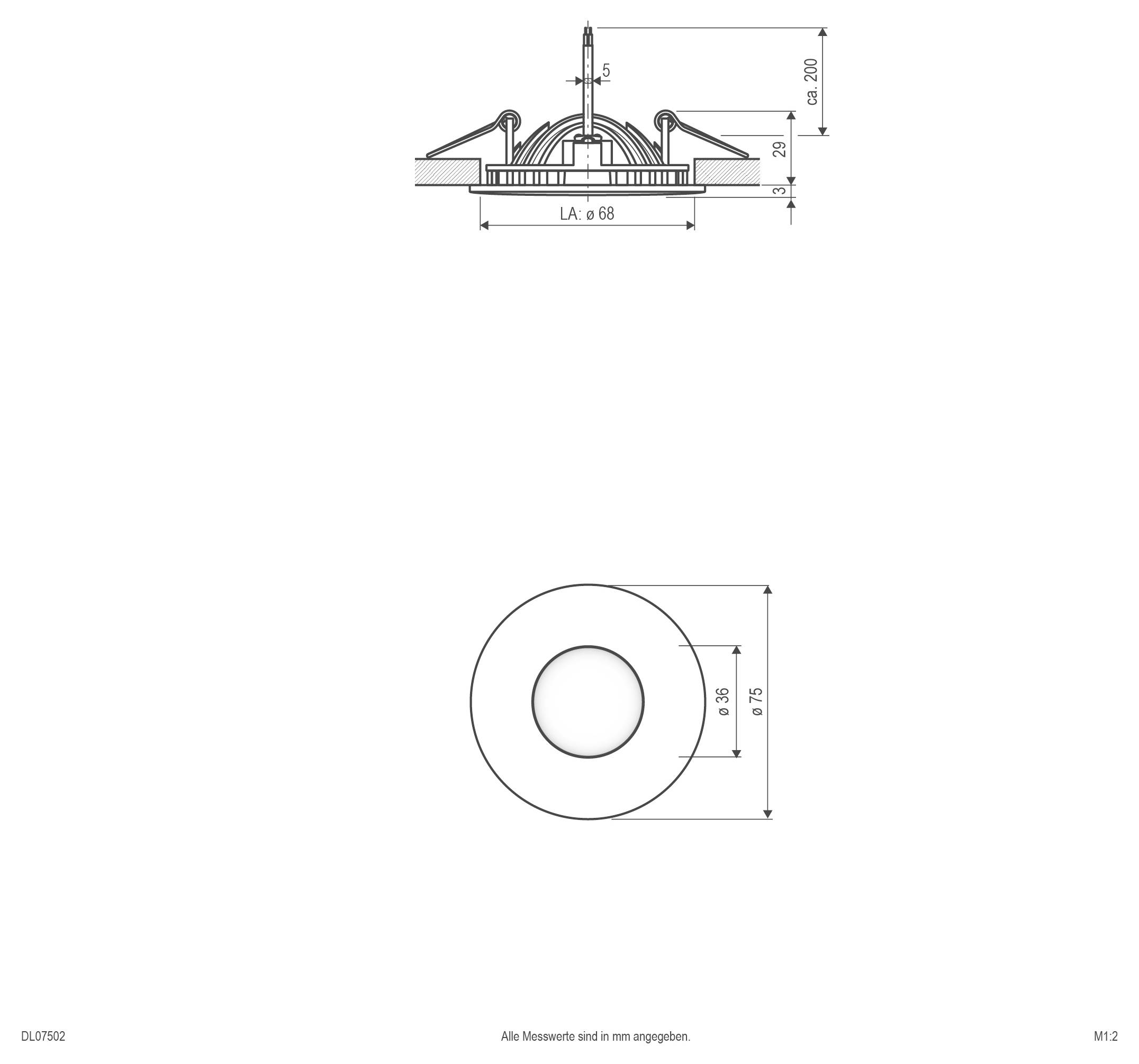

- Recess depth
32 mm
- Outside Ø
75 mm
IP20
- Factory colour
White
- Material
Aluminium
n.rel.
- Light bulb included
Yes
- Colour temperature (max.)
3000 K
- Colour temperature (min.)
3000 K
- Colour temperature range
3000 - 3000 K
- Height
32 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2483669 EVN DL07502 DL07502 LED recessed light LED (monochrome) Built-in LED 4 W White
User & Safety Instructions
User & Safety Instructions 2483669 EVN DL07502 DL07502 LED recessed light LED (monochrome) Built-in LED 4 W White
Description
The LED lights of the DL series are available in five different sizes and power ratings, as well as in two light colors. Thanks to the special design, the lamp of the series fits harmoniously and inconspicuously into the overall picture of a room, while on the other hand a very homogeneous illumination without blinding effect is ensured. This is made possible by the LED´s located at the lower edge, which indirectly illuminate the dome before the light finally illuminates the room through the lower opening. The housing color corresponds to RAL9003.
This text is machine translated.
This text is machine translated.
