Name: EVN DS20100102 DS20100102 LED ceiling light LED (monochrome) Built-in LED 10.4 W White
Brand: EVN
SKU: 3152000

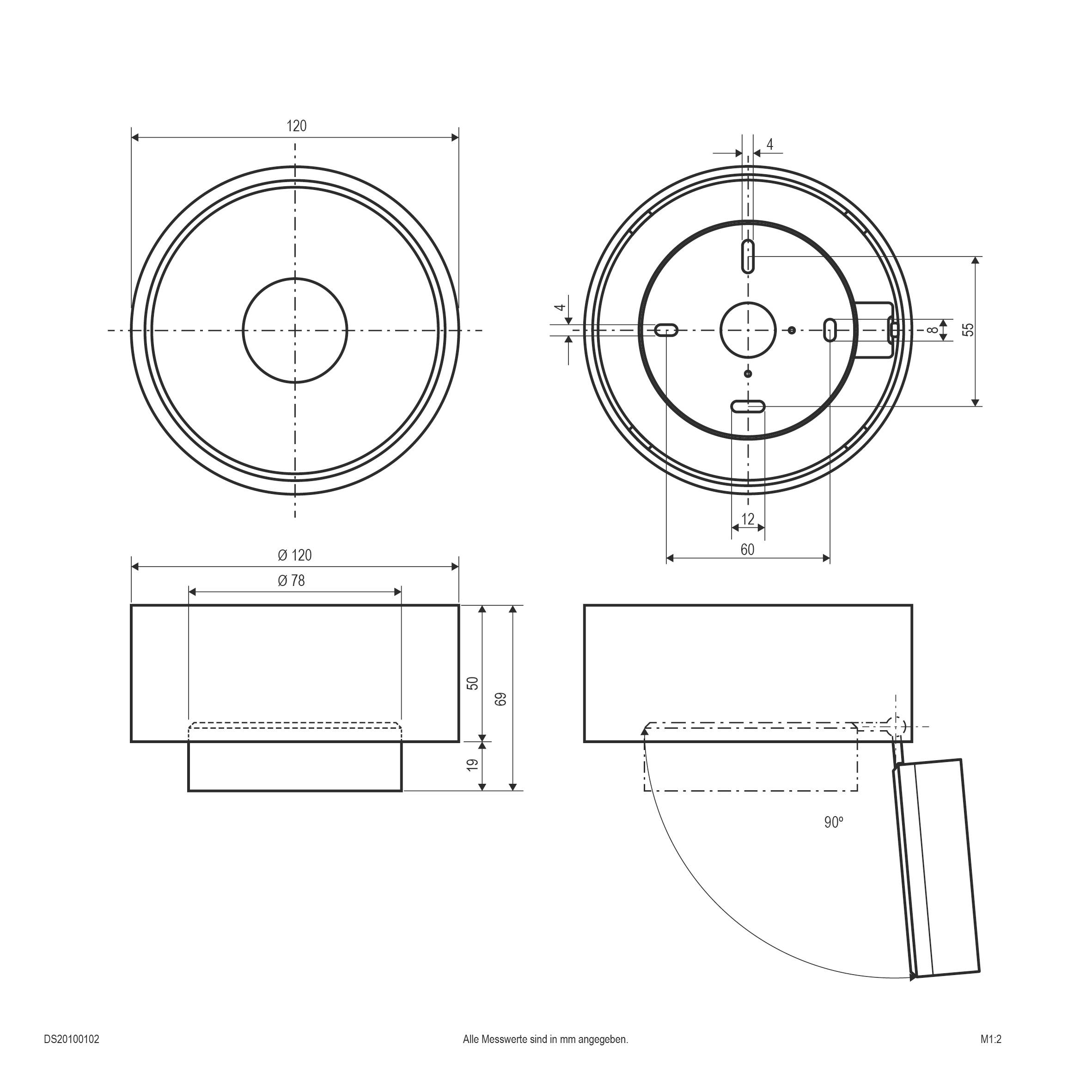

Technical drawing of a circular object with diameter specifications and side view. Measurements in millimetres.

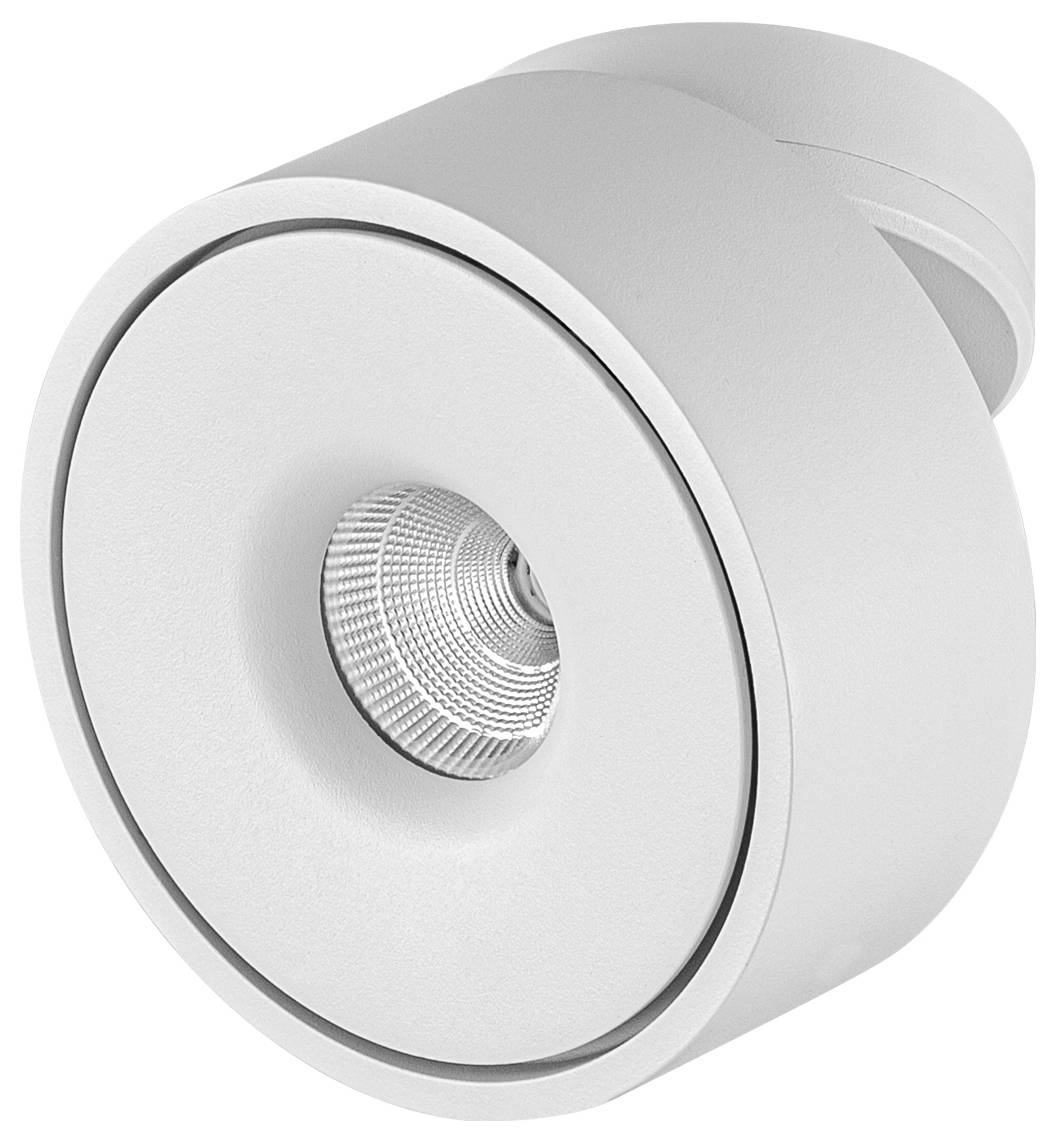

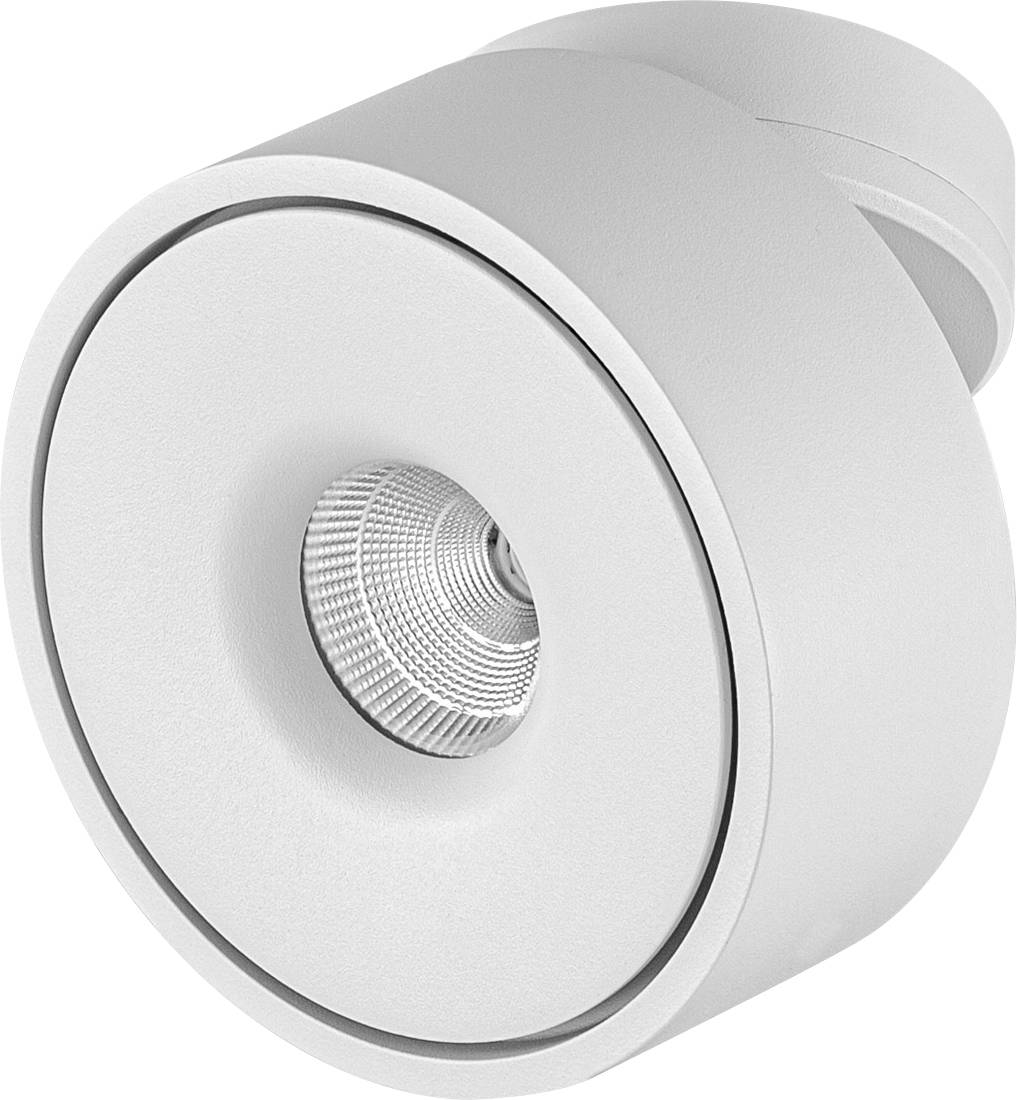

White recessed ceiling spotlight with circular adjustable trim and centered LED lamp on a plain background.

EVN DS20100102 DS20100102 LED ceiling light LED (monochrome) Built-in LED 10.4 W White-2

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

EVN Lighting technology LED Ceiling Light DS20100102

Power= 10.4 W
Total luminous flux= 1083 lm
Colour temperature= 3000 K
White

Technical specifications

Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
Suitable for wall mounting: Yes
Suitable for panel mounting: No.
Suitable for mounting on the panel: Yes
Suitable for suspended engine mounting: No.
Suitable for ceiling mounting: Yes
Suitable for traverse installation: No.
Suitable for pedestal-/floor mounting: No.
Suitable for rail mounting: No.
Suitable for clamp mounting: No.
Suitable for cable system: No.
Adjustable: Rotation and swivel
With motion detector: No.
With light sensor: No.
Bulb: LED not replaceable
With bulb: Yes
Material of housing: Aluminium
Surface protection: Powder-coated
Housing color: White
Cover material: Transparent glass
Surface brushed: No.
Voltage type AC
Nominal voltage 220..240 V
Rated LED current at constant current 500 mA
Operating device: LED operating device current-controlled
With operating device: Yes
Removable operating device: Yes
Dimming depends on the operating device: Yes
Dimmer 0-10 V: No
Dimmer 1-10 V: No
Dimming DALI-2: No.
DALI dimming: No.
Dimmer DMX: No
Dimmer DSI: No.
Dimmer potentiometer (built-in): No.
Dimmer GPRS: No.
Dimming LineSwitch: No.
Dimmer manufacturer-specific: No.
Mains voltage modulation dimming: No.
Dimming of phase section: Yes
Dimming of leading edge: Yes
Dimming programmable: No.
Dim. RF: No.
Dimming Sine Wave Reduction: No.
Dimming Touch and Dim: No.
Zigbee dimming: No.
Dimming with push-button: No.
Without dimmer function: No.
Reflector: High-gloss
Light distributor: Reflector
Light distribution: Symmetric
Radiation angle: Medium radiation 21-40°
Light emission: Direct
Rated life L80/B10 at 25 °C: 50000 h
Constant luminous flux regulation: No.
Protection class (IP) IP20
Protection class: I
Max. System power 10.4 W
Light color: White
Colour temperature: 3000 K
Color Rendering Index CRI: 90-100
Luminous flux: 1083 lm
Light intensity 3521.71 cd
Adjustable color temperature: No.
Adjustable radiation angle: No.
Height/depth 69 mm
Outer diameter: 120 mm
Type of wiring: Suitable for through-wiring
Number of poles: 3
Connection type: Plug-in terminal
Lamp with limited surface temperature "D-sign": No.
Integrated emergency power supply: No.
Light output 104 lm/W
Suitable for screen workstations according to EN 12464-1: No.
Covering of the lamp with thermal insulation material is possible: No.
IFTTT support available: No.
Compatible with Apple HomeKit: No.
Compatible with Google Assistant: No.
Compatible with Amazon Alexa: No.

Dim: (Ø x H) 120 mm x 69.00 mm

Type: Circular

Operating voltage: 230 V

No. of bulbs: 1

Product type: LED ceiling light

Bulb type: LED (monochrome)

Height: 69.00 mm

: Built-in LED

Rating per bulb: 10.4 W

Depth: 69 mm

: 10.4 W

(Ø): 120 mm

Light features: Pivoted

Rotation range (max.): 355°

Swivel range (max.): 90°

Protection class: I

: IP20

Factory colour: White

Material: Aluminium

: n.rel.

Colour rendering index: 90-100

Colour: White

Light bulb included: Yes

: 3000 K

Colour temperature (max.): 3000 K

Colour temperature (min.): 3000 K

Colour temperature range: 3000 - 3000 K

Total luminous flux: 1083 lm

: 1083 lm

Nominal voltage: 230 V

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3152000 EVN DS20100102 DS20100102 LED ceiling light LED (monochrome) Built-in LED 10.4 W White

User & Safety Instructions

User & Safety Instructions 3152000 EVN DS20100102 DS20100102 LED ceiling light LED (monochrome) Built-in LED 10.4 W White

Description

Ceiling-mounted light fixture for various applications in the interior. This lamp provides effect lighting, room lighting, accent lighting and much more. Additional costs for bulbs are omitted with this lamp, since the power is delivered by a fixed LED-chip. Since the operating device is built-in to the light, there are no additional costs for this too. The light can be rotated 355° and swiveled on one side with a pivot angle of 90°.

This text is machine translated.
