EVN E6724150 LED transformer Constant voltage 150 W 24 V DC Surge protection, not dimmable, Outdoor, Approved for use on
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
24V/DC LED POWER SUPPLY
- Constant voltage
- 24 V DC
Technical specifications
- Product type
LED transformer
- Type
Constant voltage
- Dim

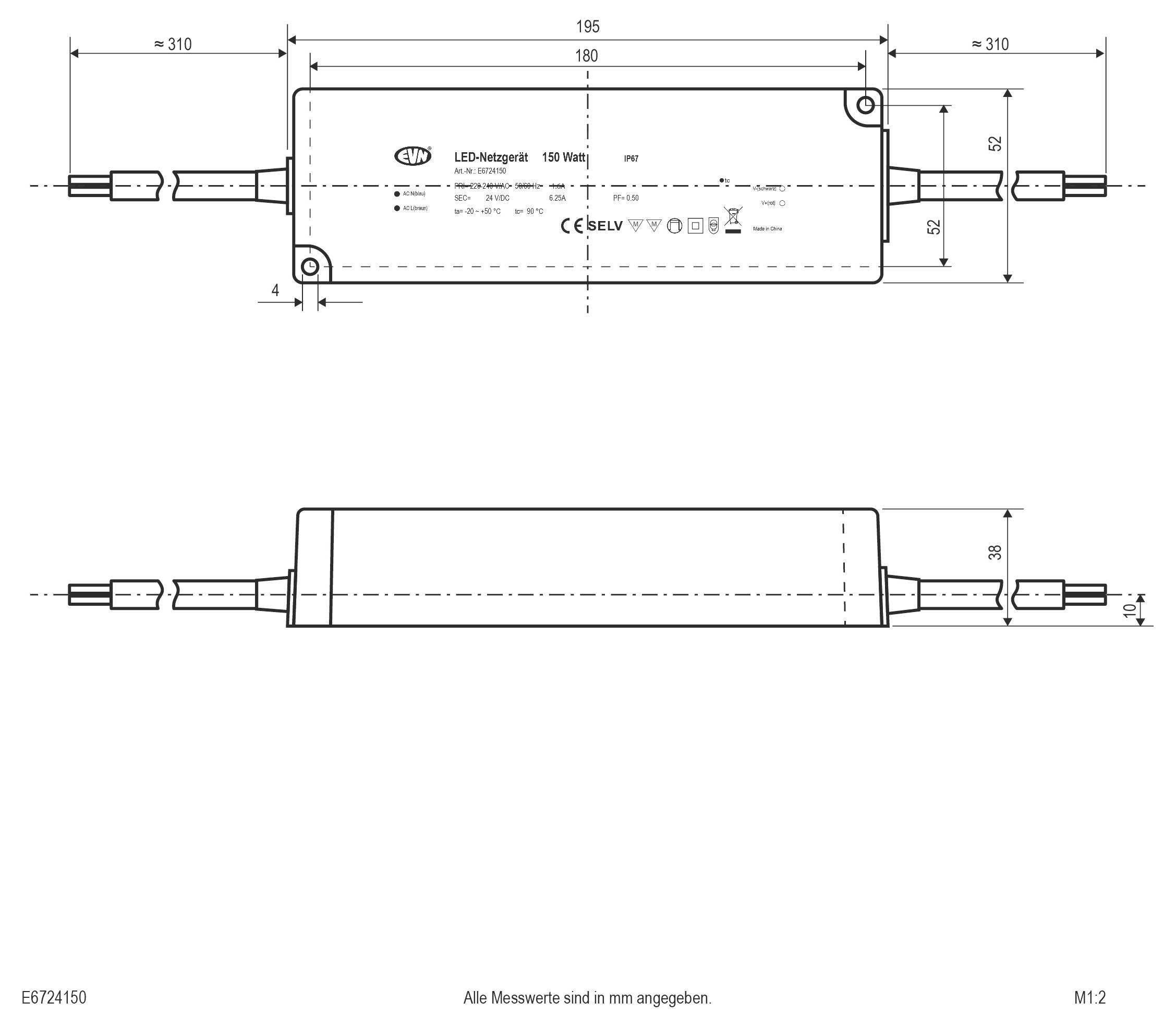

(L x W x H) 195 x 63 x 38 mm
- Output voltage (max.)
24 V DC
- Output voltage (min.)
24 V DC
- Protection class
II
- LED driver features
Surge protection
not dimmable
Outdoor
Approved for use on furniture
IP67
- Connection
Open end cable
- Max. power
150 W
- Input voltage (max.)
240 V
- Min. input voltage
100 V
- Weight
0.85 kg
- Power (min.)
0.1 W
- Power range
0.1 up to 150 W
- Width
63 mm
- Height
38 mm
- Length
195 mm
- Max. temperature
90 °C
- Min. temperature
-20 °C
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2483682 EVN E6724150 LED transformer Constant voltage 150 W 24 V DC Surge protection, not dimmable, Outdoor, Approved for use on
User & Safety Instructions
User & Safety Instructions 2483682 EVN E6724150 LED transformer Constant voltage 150 W 24 V DC Surge protection, not dimmable, Outdoor, Approved for use on
Description
The short-circuit proof safety transformer can be used outdoors due to its higher degree of protection, but can also be used in furniture construction, for example, as THE MM marking is given. The connecting cables have a length of 30cm on the primary side and 30cm on the secondary side. Technical data: Supply voltage 220-240V/AC, ta: -20°C - 50°C, tc: 90°C, power factor 0.50.
This text is machine translated.
This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
