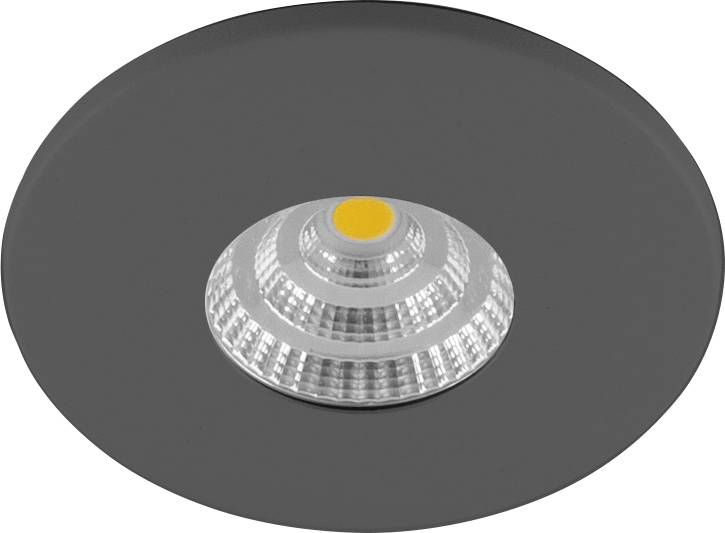

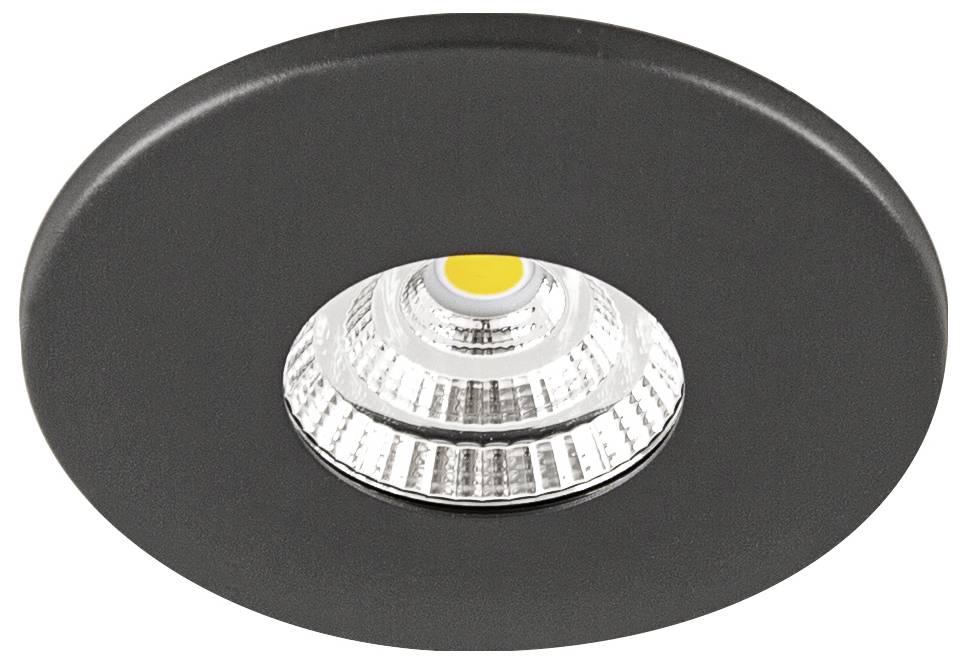

EVN L44041602 L44041602 LED recessed light LED (monochrome) Built-in LED 4.5 W Anthracite
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
LED recessed ceiling light incl. power supply
- Power= 4.5 W Colour temperature= 3000 K Warm white
Technical specifications
- Product type
LED recessed light
- Operating voltage
240 V AC
Built-in LED
- Bulb type
LED (monochrome)
- Rating per bulb
4.5 W
4.5 W
3000 K
- Colour
Warm white
- Radiation angle
20°
40°
- Light features
Low recess depth
- Recess diameter
68 mm
- Recess depth
22 mm
- Outside Ø
90 mm
IP44
- Factory colour
Anthracite
- Material
Aluminium
n.rel.
- Light bulb included
Yes
- Colour temperature (max.)
3000 K
- Colour temperature (min.)
3000 K
- Colour temperature range
3000 - 3000 K
- Height
25 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2483823 EVN L44041602 L44041602 LED recessed light LED (monochrome) Built-in LED 4.5 W Anthracite
User & Safety Instructions
User & Safety Instructions 2483823 EVN L44041602 L44041602 LED recessed light LED (monochrome) Built-in LED 4.5 W Anthracite
Description

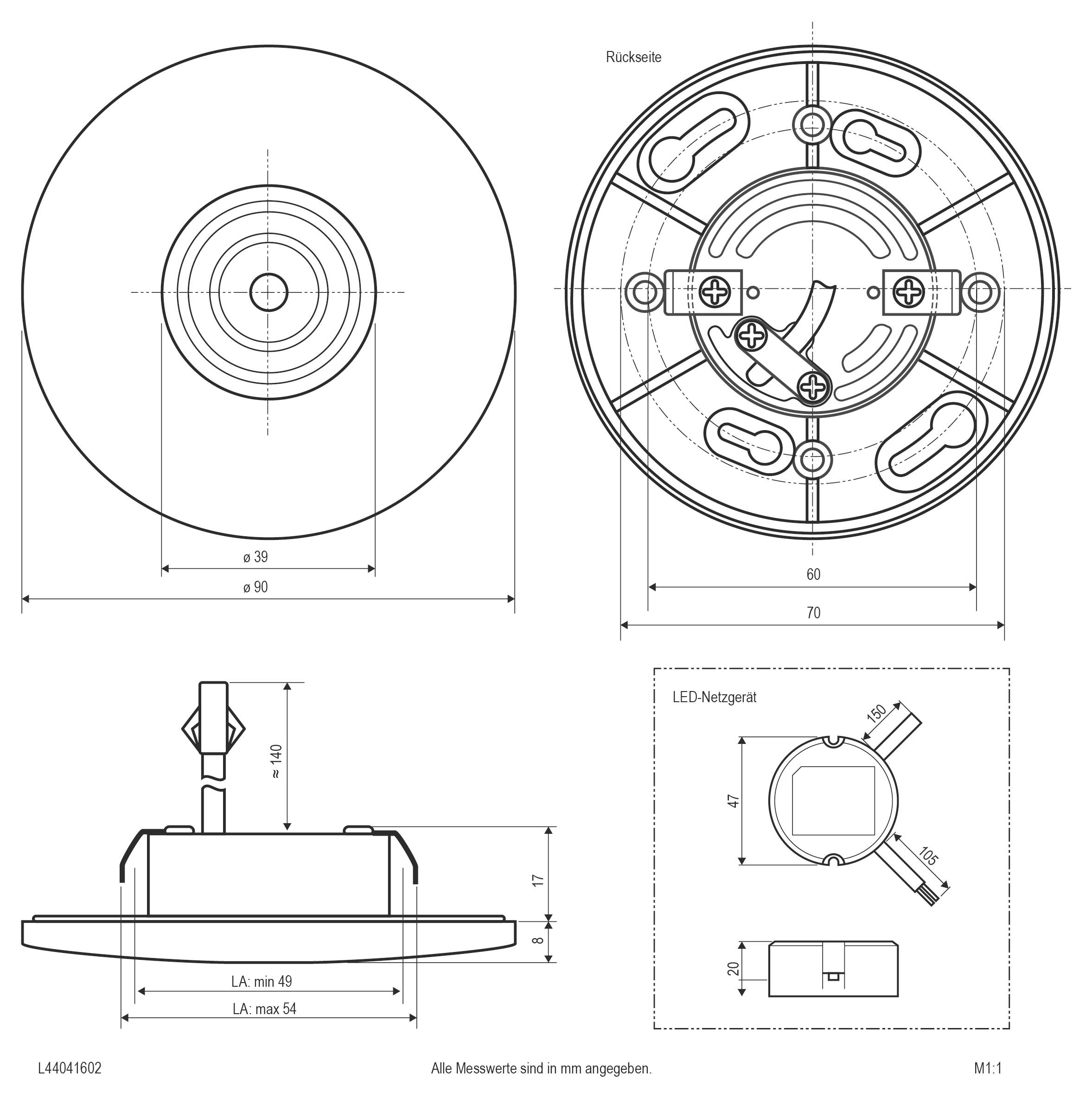

Thanks to the high light yield, the LED recessed ceiling light can also be used for demanding lighting tasks without any problem. Thanks to the given degree of protection and the low installation depth, there are clearly more uses than other LED lights. The supplied power supply unit with MM marking has a diameter of 47mm and a height of 20mm and can therefore be easily accommodated in this unit when mounted on a deep switch box. The magnetic cover covers the mounting screws. In addition, two explosive springs are included in the delivery, with which a mounting in a hole cut of 68mm is possible. The installation depth when using the explosive springs is 30mm.
This text is machine translated.
This text is machine translated.
