EVN L54N070125 L54N070125 LED recessed light LED (monochrome) Built-in LED 7 W White
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
LED downlight with adjustable color temperature
- Power= 7 W Total luminous flux= 764 lm Colour temperature= 5700 K Daylight white
Technical specifications
- Product type
LED recessed light
- Operating voltage
240 V AC
- No. of bulbs
1
Built-in LED
- Bulb type
LED (monochrome)
- Rating per bulb
7 W
7 W
764 lm
- Total luminous flux
764 lm
5700 K
- Colour
Daylight white
- Radiation angle
80°
- Light features
Incl. switch

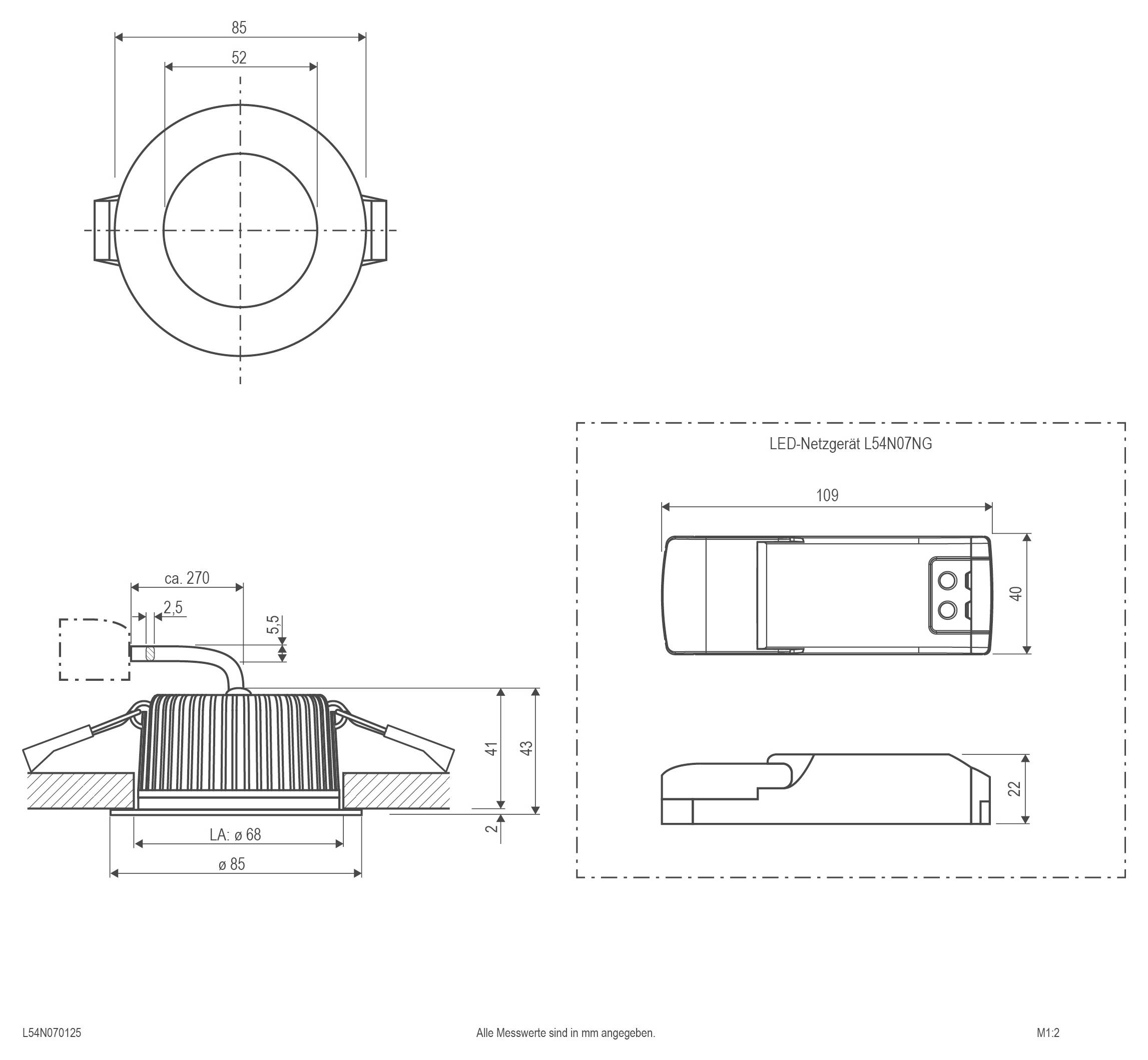

- Recess depth
45 mm
- Outside Ø
85 mm
IP54
- Factory colour
White
- Material
Aluminium
n.rel.
- Light bulb included
Yes
- Colour temperature (max.)
5700 K
- Colour temperature (min.)
3000 K
- Colour temperature range
3000 - 5700 K
- Height
43 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2483851 EVN L54N070125 L54N070125 LED recessed light LED (monochrome) Built-in LED 7 W White
User & Safety Instructions
User & Safety Instructions 2483851 EVN L54N070125 L54N070125 LED recessed light LED (monochrome) Built-in LED 7 W White
Description

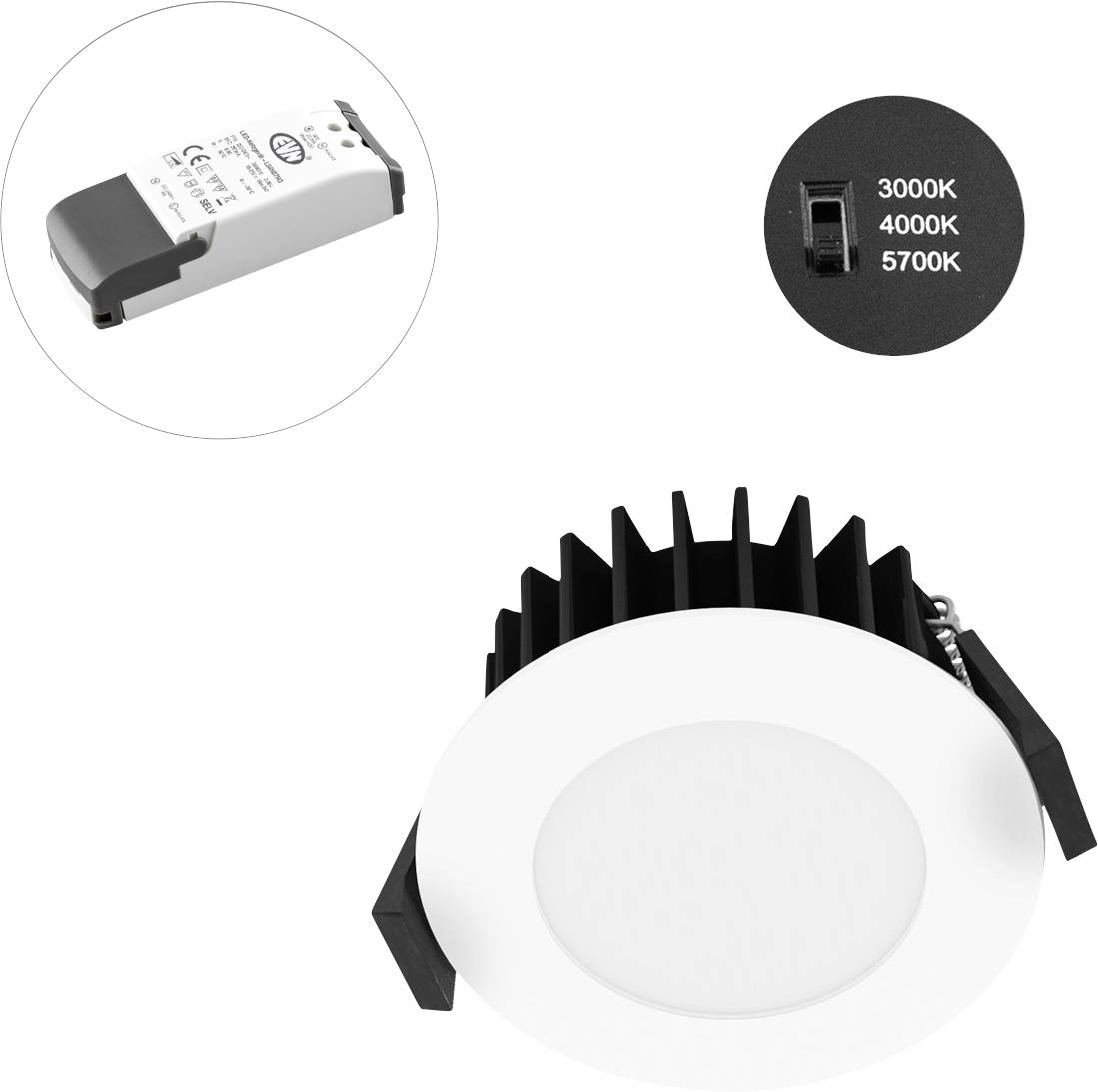

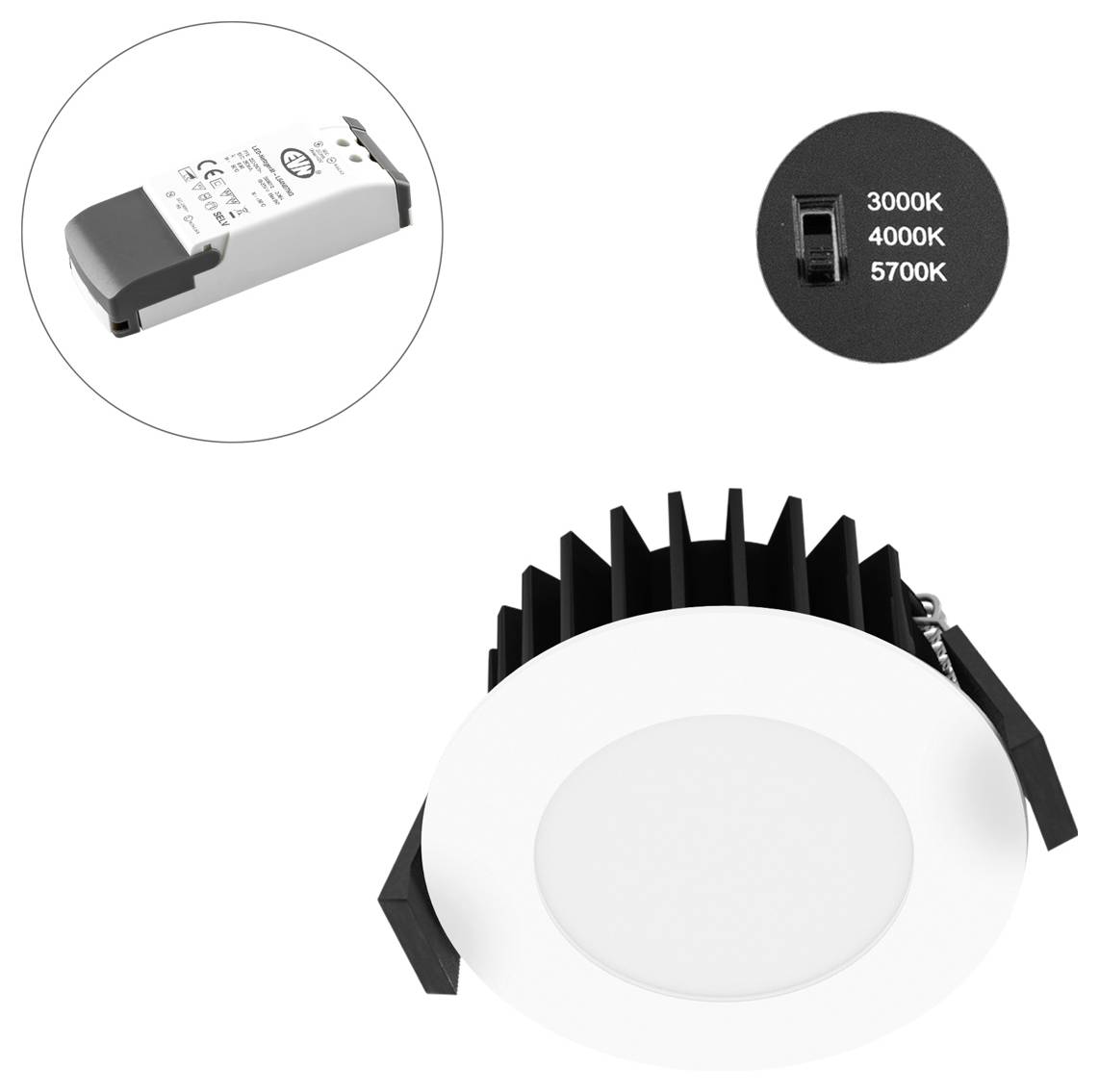

LED ceiling mounted light fixture for different application areas, such as covering area, but also effective lighting in hall, living room, office and much more. With the switch on the rear side, one of three possible color temperatures can be set. The possible color temperatures and resulting lumen are: 3000K (706lm), 4000K (764lm) and 5700K (747lm). The connection cable between the power supply unit and the lamp has a length of 27cm. The power supply unit has the following dimensions: 109x40x22mm. max. tc: 68°C.
