EVN L54N071325 L54N071325 LED recessed light LED (monochrome) Built-in LED 7 W Chrome
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
LED downlight with adjustable color temperature
- Power= 7 W Colour temperature= 5700 K Daylight white
Technical specifications
- Product type
LED recessed light
- Operating voltage
240 V AC
Built-in LED
- Bulb type
LED (monochrome)
7 W
5700 K
- Colour
Daylight white
- Radiation angle
80°

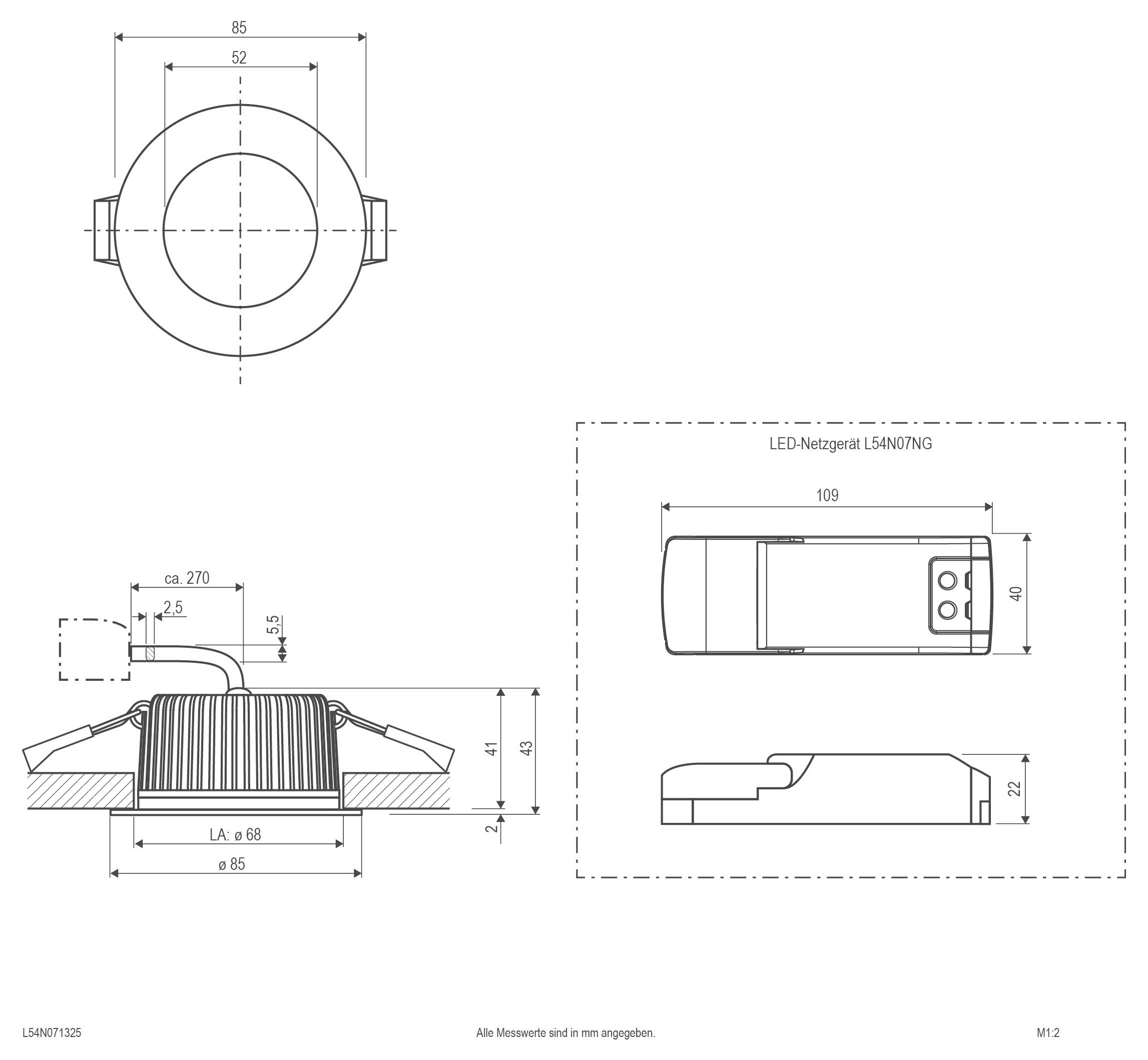

- Recess depth
45 mm
- Outside Ø
85 mm
IP54
- Factory colour
Chrome
- Material
Aluminium
n.rel.
- Light bulb included
Yes
- Colour temperature range
5700 K
- Height
43 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2483852 EVN L54N071325 L54N071325 LED recessed light LED (monochrome) Built-in LED 7 W Chrome
User & Safety Instructions
User & Safety Instructions 2483852 EVN L54N071325 L54N071325 LED recessed light LED (monochrome) Built-in LED 7 W Chrome
Description

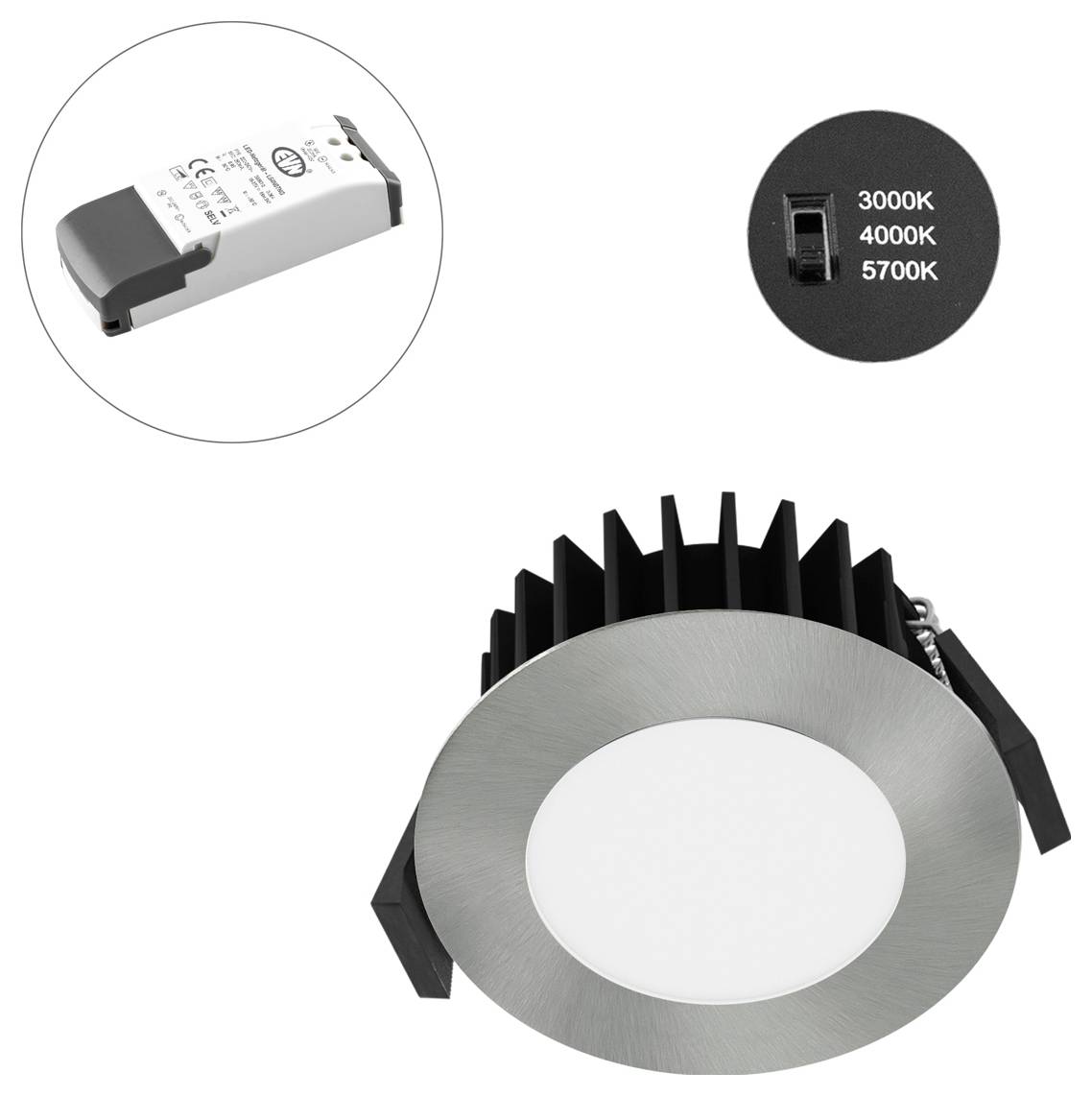

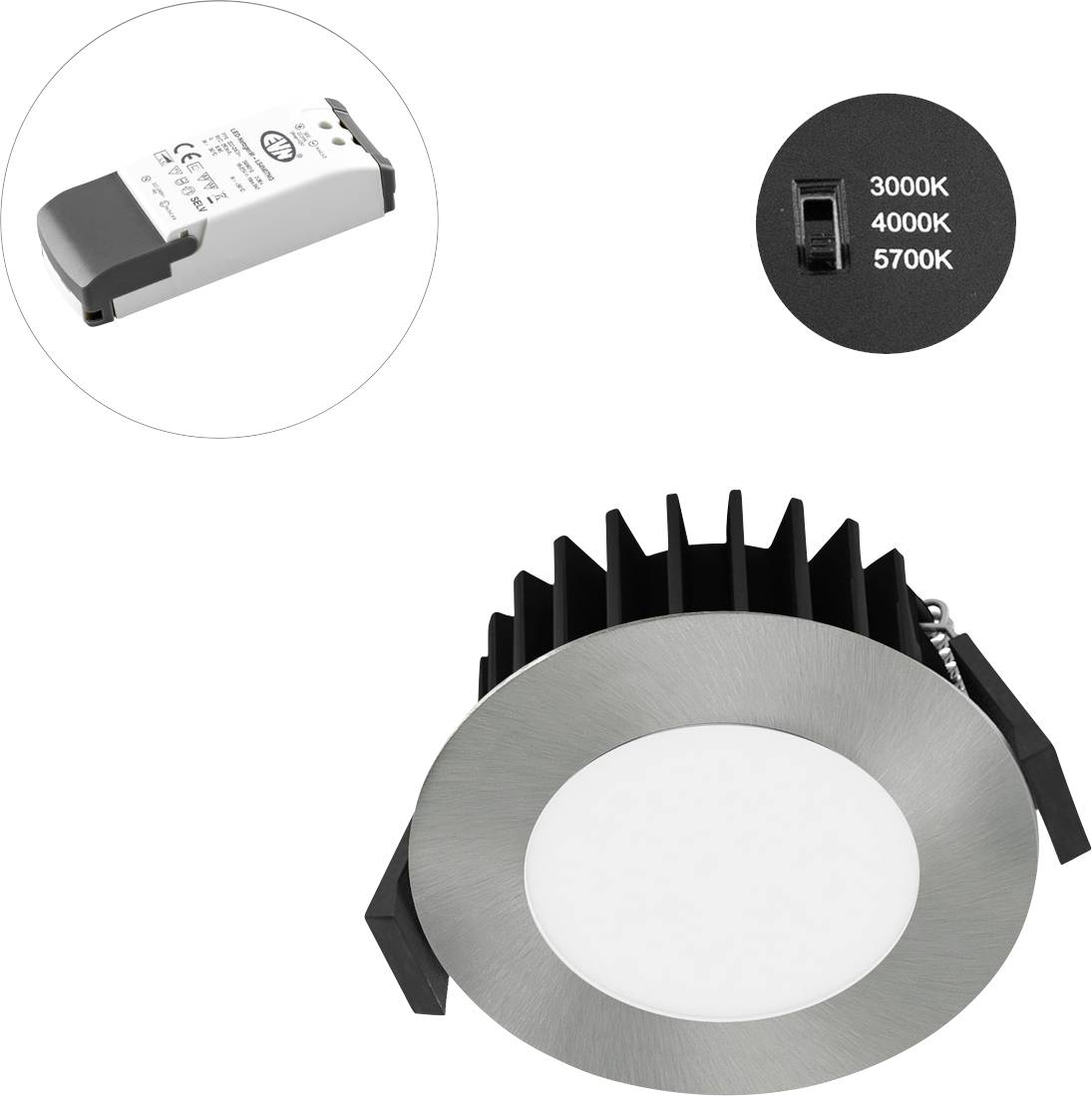

LED ceiling mounted light fixture for different application areas, such as covering area, but also effective lighting in hall, living room, office and much more. With the switch on the rear side, one of three possible color temperatures can be set. The possible color temperatures and resulting lumen are: 3000K (706lm), 4000K (764lm) and 5700K (747lm). The connection cable between the power supply unit and the lamp has a length of 27cm. The power supply unit has the following dimensions: 109x40x22mm. max. tc: 68°C.
