EVN LPQV220125 LPQV220125 LED recessed light LED (monochrome) Built-in LED 18 W White
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

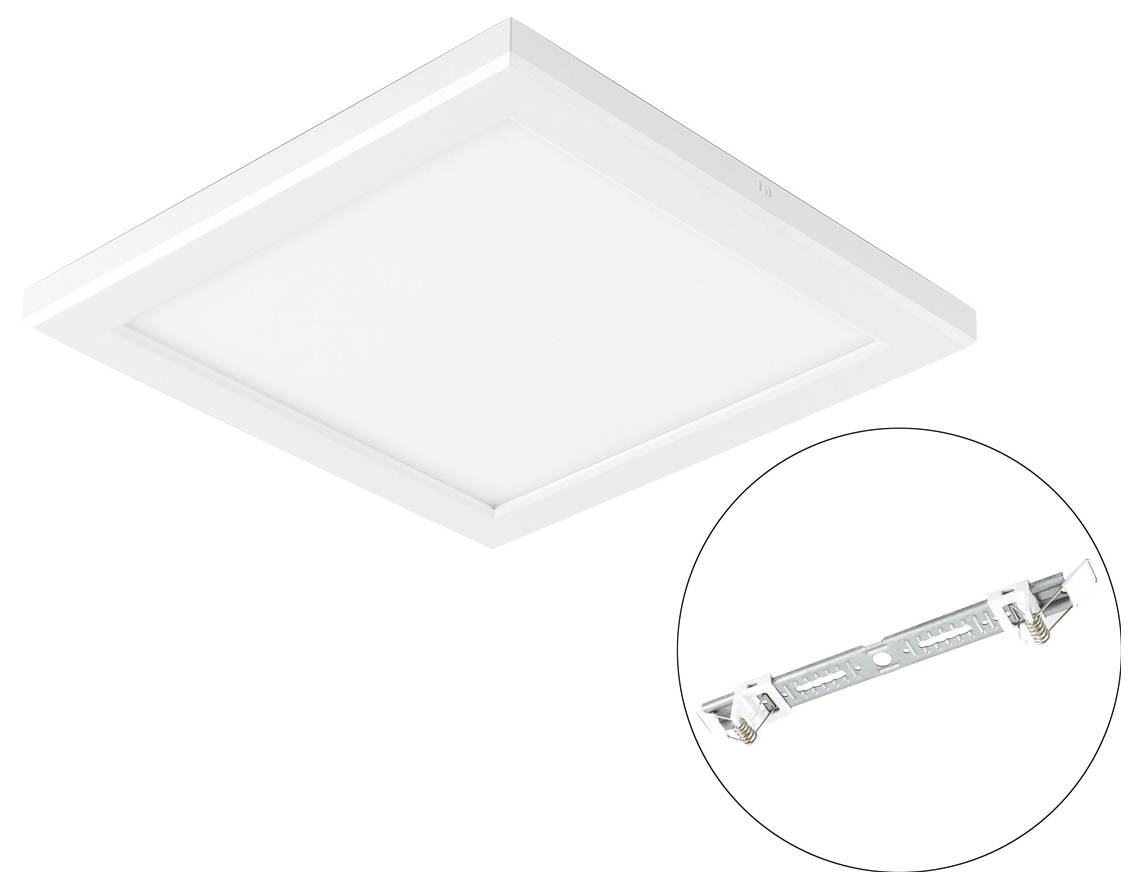

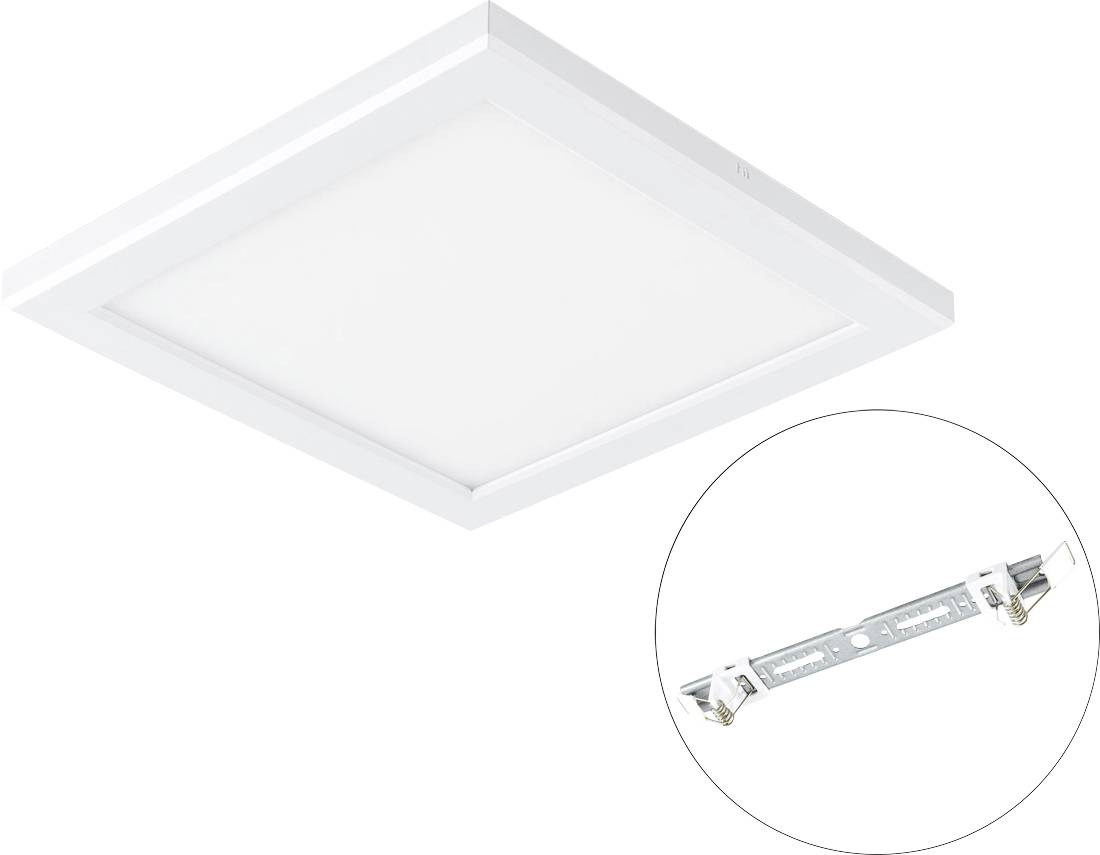

LED panel with adjustable hole cut-out
- Power= 18 W Total luminous flux= 1631 lm Colour temperature= 6000 K Daylight white
Technical specifications
- Product type
LED recessed light
- Operating voltage
240 V AC
Built-in LED
- Bulb type
LED (monochrome)
- Rating per bulb
18 W
18 W
1631 lm
- Total luminous flux
1631 lm
6000 K
- Colour
Daylight white
- Radiation angle
80°
- Light features
Incl. switch
- Recess diameter
55 mm
- Recess depth
15 mm
IK05
IP20
- Factory colour
White
- Material
Plastic
n.rel.
- Dim
(L x W x H) 218 x 218 x 30 mm
- Light bulb included
Yes
- Colour temperature (max.)
6000 K
- Colour temperature (min.)
3000 K
- Colour temperature range
3000 - 6000 K
- Width
218 mm
- Height
30 mm
- Length
218 mm
- Rated luminous flux
1631 lm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2483915 EVN LPQV220125 LPQV220125 LED recessed light LED (monochrome) Built-in LED 18 W White
User & Safety Instructions
User & Safety Instructions 2483915 EVN LPQV220125 LPQV220125 LED recessed light LED (monochrome) Built-in LED 18 W White
Description

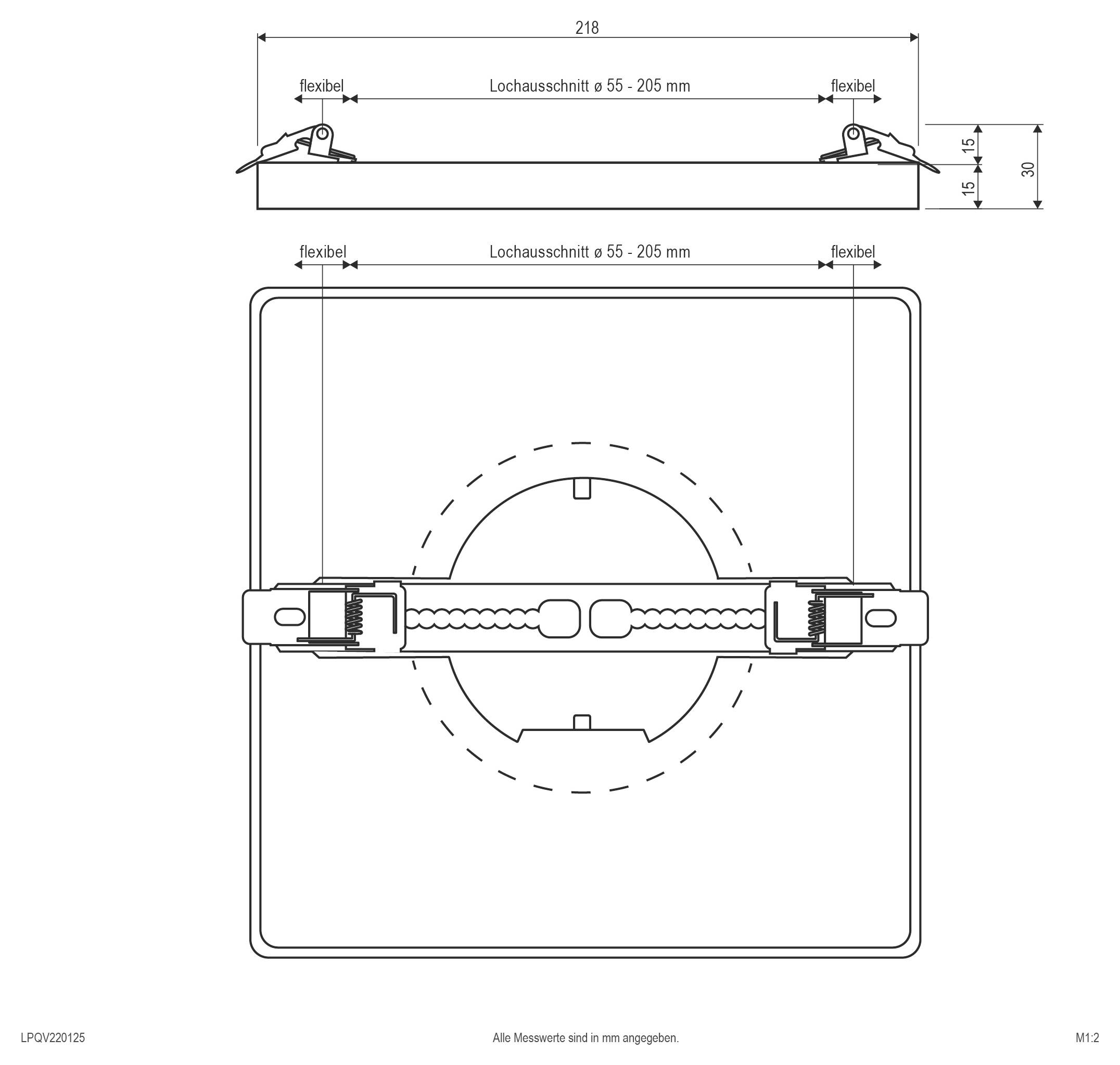

LED panel for various applications, such as comprehensive, but also effective lighting in hall, living room, office, and much more. The panel is only suitable for indoor use. The retaining springs can be adjusted by different grid points on the retaining rail, whereby the following cutting dimensions are possible: 55mm, 65mm, 75mm, 90mm, 102mm, 115mm, 126mm, 140mm, 154mm, 165mm. The switch on the rear side can be used to set one of three possible color temperatures. The possible color temperatures and resulting lumen are: 3000K (1494lm), 4000K (1631lm) and 6000K (1476lm). The power supply unit is installed in the panel. Degree of physiological blinding: UGR less than 25.
