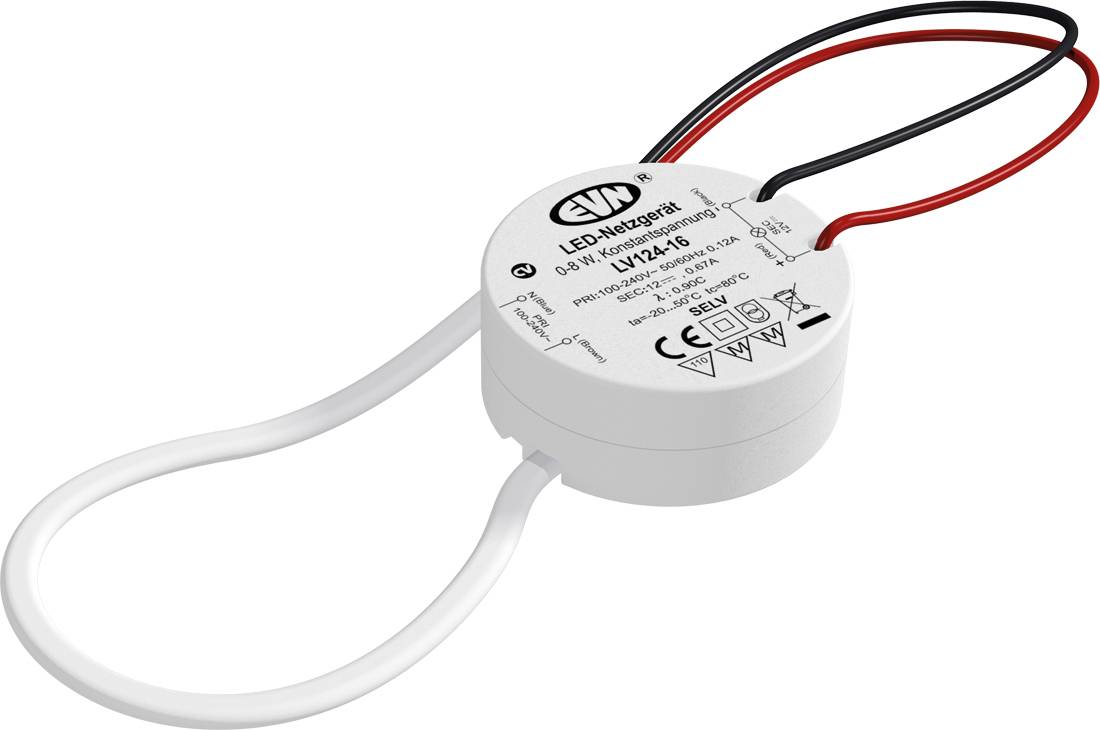

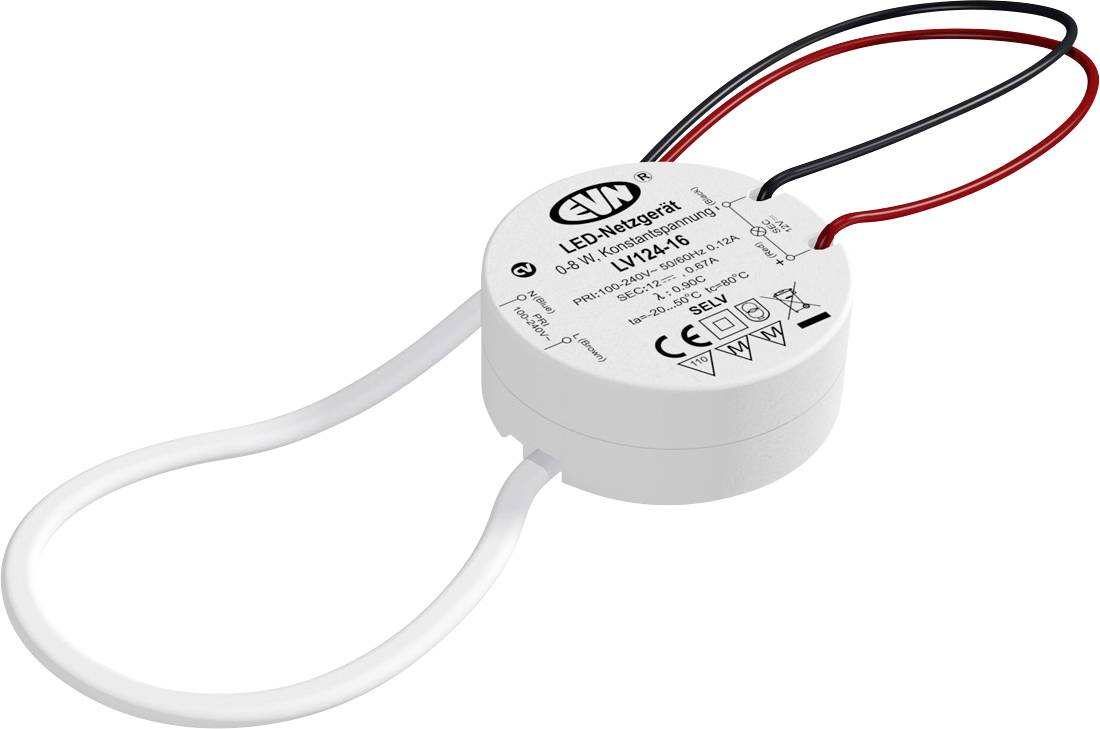

EVN LV12416 LED transformer Constant voltage 8 W 12 V DC not dimmable
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
12V/DC LED POWER SUPPLY
- Constant voltage
- 12 V DC
Technical specifications
- Product type
LED transformer
- Type
Constant voltage
- Output voltage (max.)
12 V DC
- Protection class
II
- LED driver features
not dimmable
IP20
- Connection
Open end cable
- Max. power
8 W
- Input voltage (max.)
240 V
- Min. input voltage
100 V
- Weight
0.06
- Power (min.)
0.1 W
- Power range
0.1 up to 8 W

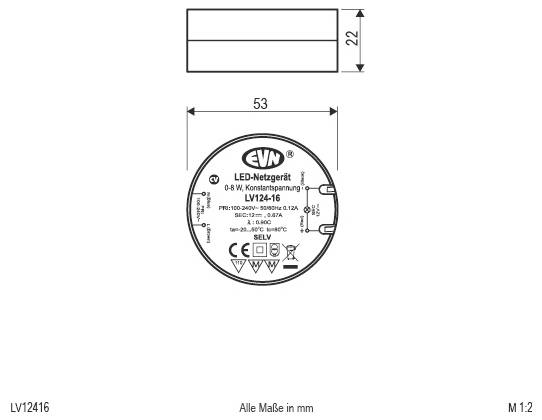

- Height
22 mm
- Max. temperature
50 °C
- Min. temperature
-20 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2483976 EVN LV12416 LED transformer Constant voltage 8 W 12 V DC not dimmable
User & Safety Instructions
User & Safety Instructions 2483976 EVN LV12416 LED transformer Constant voltage 8 W 12 V DC not dimmable
Description
The short-circuit-proof safety transformer can be installed perfectly in switch boxes due to its small design, but can also be used in furniture construction, as THE MM-labeling M is provided. The connecting cables have a length of 15cm on the primary side and 17cm on the secondary side. Technical data: Supply voltage: 100-240V/AC, ta: -20°C - 50°C, tc: 80°C, power factor: 0.90.
This text is machine translated.
This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
