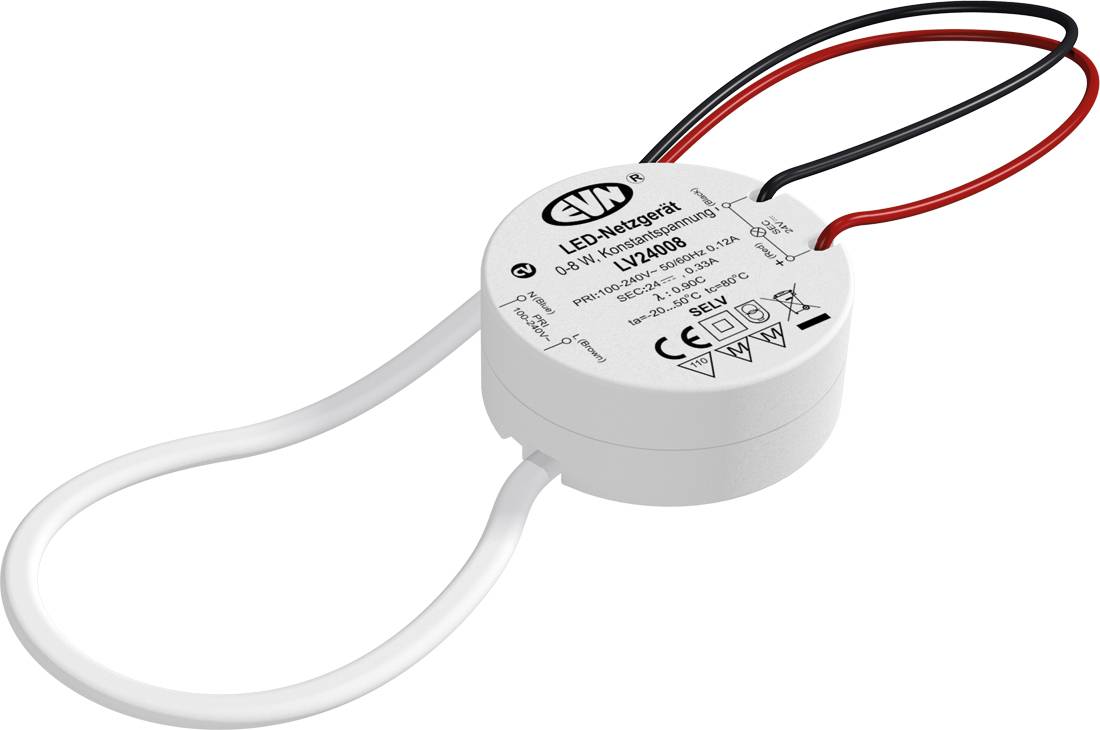

EVN LV24008 LED transformer Constant voltage 8 W 24 V DC not dimmable 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
LV24008
- Constant voltage
- 24 V DC
Technical specifications
- Product type
LED transformer
- Type
Constant voltage
- Output voltage (max.)
24 V DC
- Output voltage (min.)
24 V DC
- Test mark
MM-Kennzeichnung
- Protection class
II
- LED driver features
not dimmable
IP20
- Connection
Open end cable
- Max. power
8 W
- Input voltage (max.)
240 V
- Min. input voltage
100 V
- Weight
0.06 kg
- Power (min.)
0.1 W
- Power range
0.1 up to 8 W

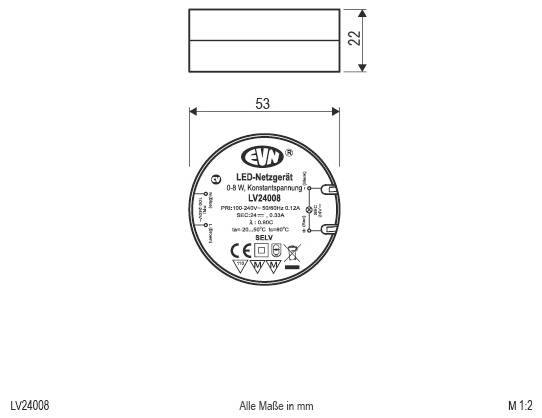

- Height
22 mm
- Max. temperature
50 °C
- Min. temperature
-20 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2483977 EVN LV24008 LED transformer Constant voltage 8 W 24 V DC not dimmable 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2483977 EVN LV24008 LED transformer Constant voltage 8 W 24 V DC not dimmable 1 pc(s)
Description
The short-circuit-proof safety transformer can be mounted perfectly in switch boxes due to its small design, but can also be used in furniture construction, as THE MM marking is given. The connecting cables have a length of 14cm on the primary side and 17cm on the secondary side. Technical data: Supply voltage: 100-240V/AC, ta: -20°C - 50°C, tc: 80°C, power factor: 0.90.
This text is machine translated.
This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
